Math U1 T3 Pythagoras Theorem

Instructions:

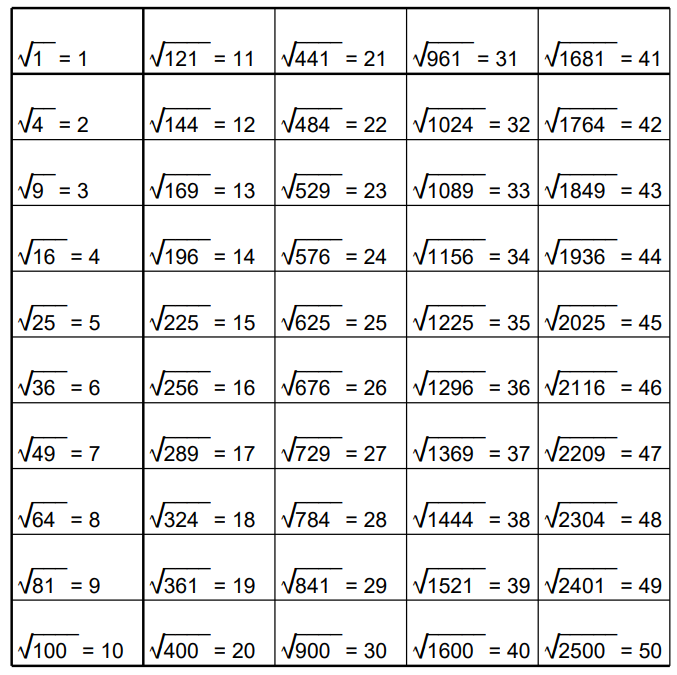

Use extra scrap paper to make your calculations. You are NOT allowed calculators, but are allowed a square root chart (included below for your benefit):

1

Identify the hypotenuse of the triangle.

g

j

p

1

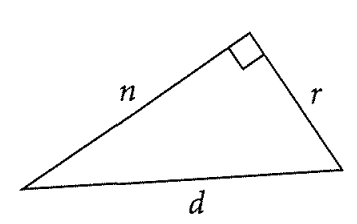

Identify the hypotenuse of the triangle.

n

r

d

1

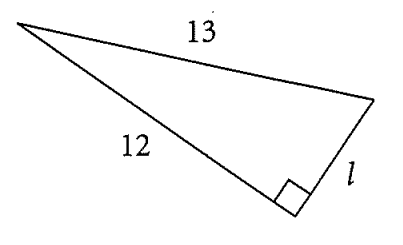

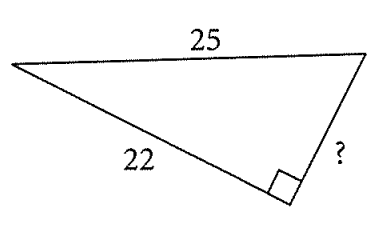

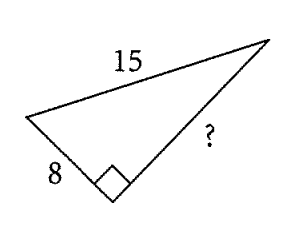

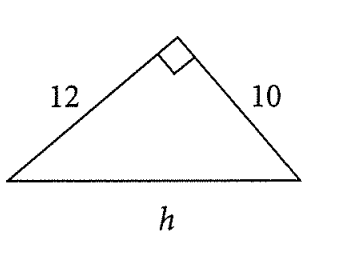

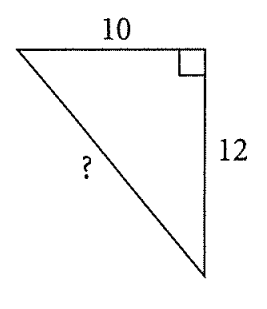

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

1

Find the length of the unknown side in the right triangle.

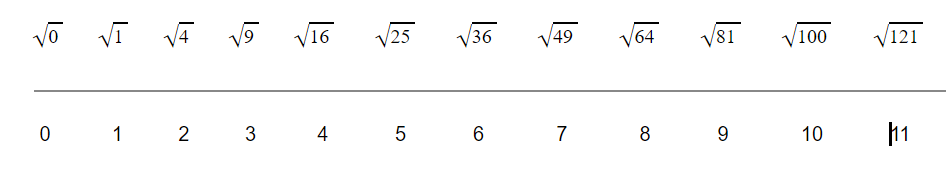

You can use the square root number line to help you approximate the square roots for questions 10 - 12.

1

Approximate the length of the unknown side in each triangle.
(Warning: the triangle is not always drawn correctly, so you must trust the math, and not the picture).

a number between 4 and 5

a number between 5 and 6

a number between 6 and 7

a number between 7 and 8

1

Approximate the length of the unknown side in each triangle.
(Warning: the triangle is not always drawn correctly, so you must trust the math, and not the picture).

a number between 12 and 13

a number between 13 and 14

a number between 14 and 15

a number between 15 and 16

1

Approximate the length of the unknown side in each triangle.
(Warning: the triangle is not always drawn correctly, so you must trust the math, and not the picture).

a number between 11 and 12

a number between 12 and 13

a number between 13 and 14

a number between 14 and 15

1

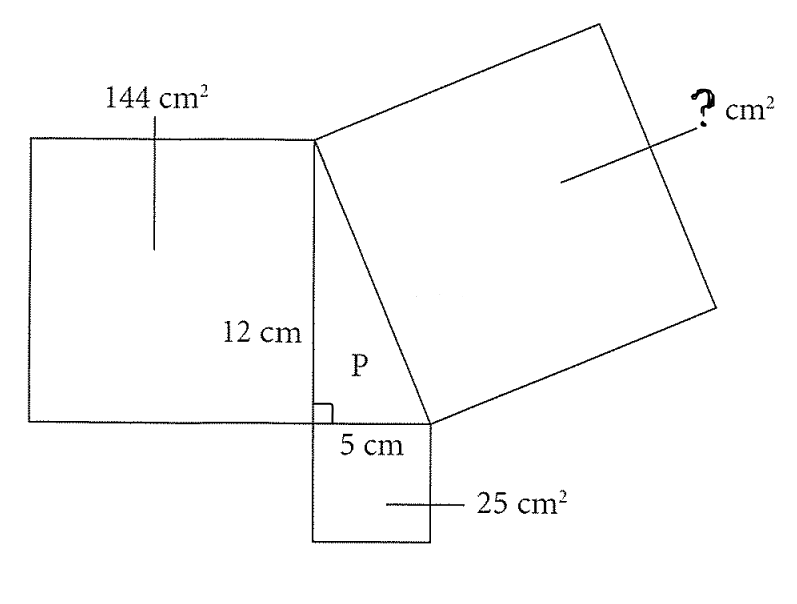

What is the area of the missing square if P is a right angled triangle?

119

136

169

225

1

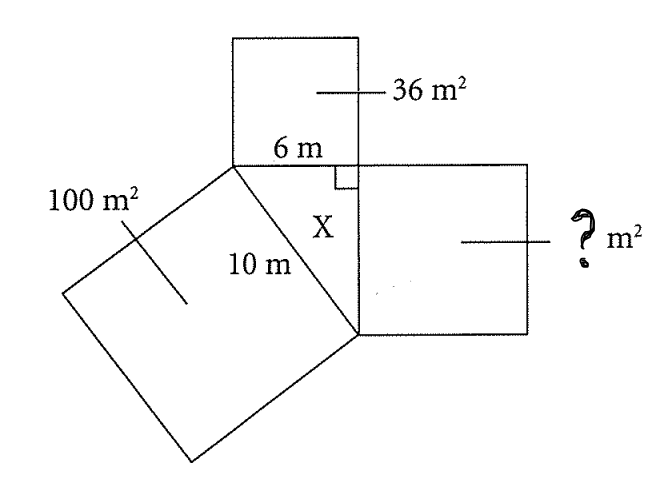

What is the area of the missing square if X is a right angled triangle?

64

121

136

225

1

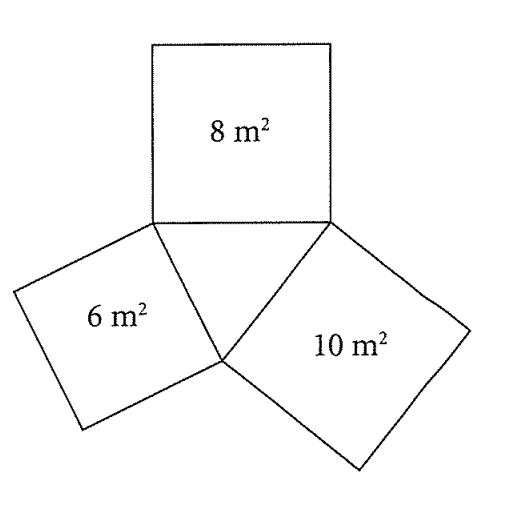

Is the following triangle a right triangle?

Yes

No

There is no way to tell.

1

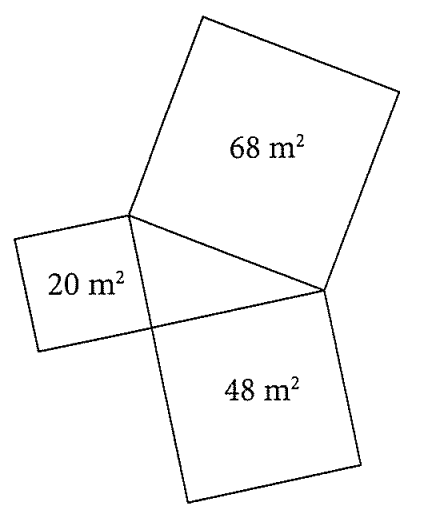

Is the following triangle a right triangle?

Yes

No

There is no way to tell.

1

Is the following triangle a right triangle?

Yes

No

There is no way to tell.

1

Is the set of numbers a Pythagorean Triple?
20, 30, 40

Yes

No

There is no way to tell.

1

Is the set of numbers a Pythagorean Triple?
30, 40, 50

Yes

No

There is no way to tell.

1

Is the set of numbers a Pythagorean Triple?
20, 21, 29

Yes

No

There is no way to tell.

1

Is the set of numbers a Pythagorean Triple?
60, 11, 62

Yes

No

There is no way to tell.

1

Find the missing number in the Pythagorean Triple if the numbers are listed in ascending order:
7, 24, ____

1

Find the missing number in the Pythagorean Triple if the numbers are listed in ascending order:
16, 30, ____

1

Find the missing number in the Pythagorean Triple if the numbers are listed in ascending order:
10, ____ , 26

1

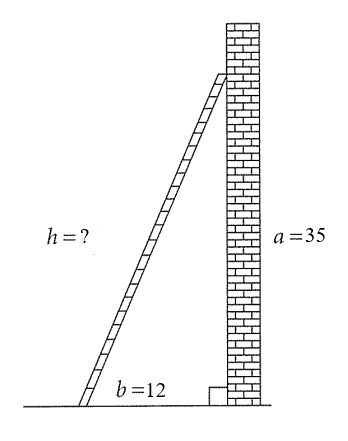

A ladder leans against a wall. It reaches 35 units up. How long is the ladder, if the foot of the ladder is 12 units from the base of the wall? Provide your answer as ONLY a number, and do not include the word units.
