Force Diagrams Quiz 11/08/2019

Last updated over 3 years ago
20 questions

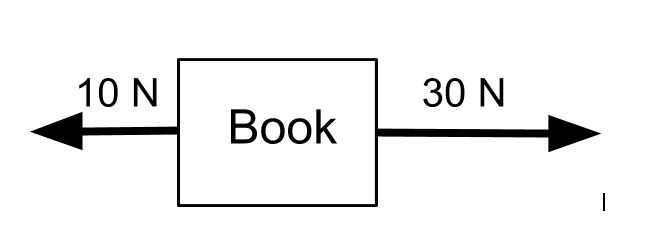

Use the diagram below for questions 1,2,3,4
1

What object has forces acting on it above

1

The forces on this object above are

1

The net force is

1

The object above is

Use the diagram below for questions 5,6,7,8
1

What object has forces acting on it above

1

The forces on this object above are

1

The object above is

1

The net force is

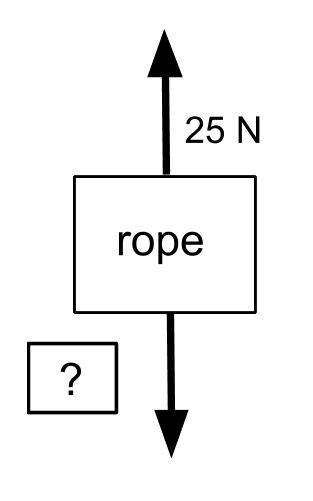

Use the diagram below for questions 9 &10
1

What object has forces acting on it above

1

What force would balance the Force Diagram above

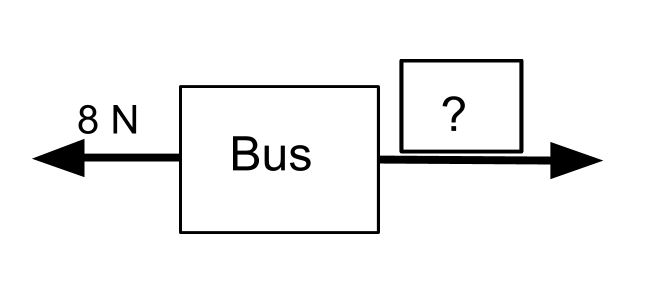

Use the diagram below for questions 11 &12
1

What object has forces acting on it above

1

What force in the box would balance the Foce Diagram above

Use the 3 graphs below for questions 13,14,15
1

Which object has the fastest speed

1

Which object is moving the slowest?

1

Which object is stopped?

1

A push or a pull is _______

1

Which of the following is used to measure speed?

1

Force equals

1

Which object has the most inertia

1

What part of a car is used to unbalance forces to cause deceleration?
