Outcome 14: Assessment

1

NC.M3.G-CO.14

1

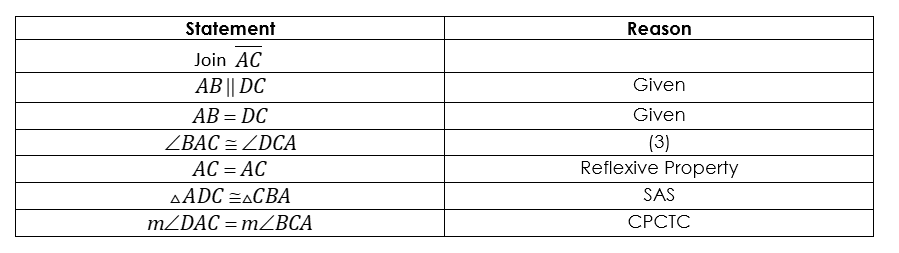

In the above proof, what is reason (3)?

NC.M3.G-CO.11

1

NC.M3.G-CO.11

1

In which quadrilateral are the diagonals always congruent?

NC.M3.G-CO.11

1

NC.M3.G-CO.11

1

ABCD is a rhombus.

NC.M3.G-CO.11

1

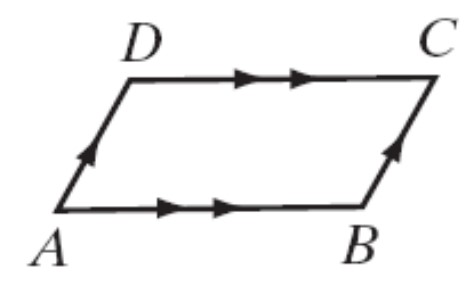

In the parallelogram ABCD, m∠A = 2x + 50 and m∠C = 3x + 40 . The measure of ∠A is _____________.

NC.M3.G-CO.11

1

NC.M3.G-CO.11

1

Point Q represents which point of concurrency?

NC.M3.G-CO.10

1

Three towns, Maybury, Junesville, and Cyanna, will create one sports center. Where should the center be placed so that it is the same distance from all three towns?

NC.M3.G-CO.10

1

NC.M3.G-CO.10

1

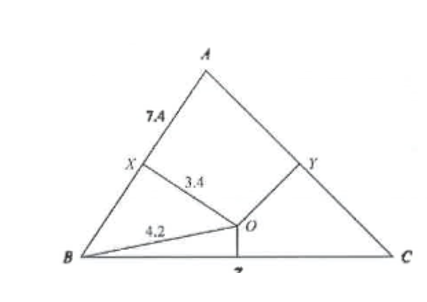

(Z is the bottom letter, chopped off in the figure! 🤔 )

NC.M3.G-CO.10

4

Harvey makes custom countertops out of thick slabs of wood. After finishing a project for a client Harvey has a scrap piece wood that is diagramed below. These pieces of wood are very expensive, and he wants to minimize waste. He decides to make a table out of this scrap piece of wood without making any additional cuts. Harvey wants the able to have 3 legs that meet at one point on the underside of the table. Where should all three legs meet so that the table is level?

Determine which point of concurrency would be utilized and explain which properties about that point of concurrency are represented in the problem. You are then need to create a diagram or model displaying why that point of concurrency works.

NC.M3.G-CO.10

4

Denise has two dogs that like to roam. She is tired of soaking wet dogs coming into her house, her neighbors are tired of unwelcome visitors, and she doesn’t want to worry about them getting hit by a car. It was these three issues that convinced her to purchase a wireless pet fence. The fence sends out a wireless signal in a circle with a radius of up to 90’. Where should Denise plug in the wireless station so that her dogs have the largest possible range but stay within her property lines, away from the river and away from the road?

Determine which point of concurrency would be utilized and explain which properties about that point of concurrency are represented in the problem. You are then need to create a diagram or model displaying why that point of concurrency works.

NC.M3.G-CO.10

4

Robert is competing in a bicycle cross-country race. The track will be triangular. Robert's grandmother is wheelchair bound, and wants to see her grandson ride the bike on each straight part of the track, and she wants to move the minimum distance possible. At what point will her distances to each of the straight portions of the track be the smallest?

Determine which point of concurrency would be utilized and explain which properties about that point of concurrency are represented in the problem. You are then need to create a diagram or model displaying why that point of concurrency works.

NC.M3.G-CO.10

4

Jeanie purchased a wireless router. The wireless router has a range of 300’. She likes to go out on her patio and work from her laptop. Where should she place the router so she has secure WiFi on all areas of her property?

Determine which point of concurrency would be utilized and explain which properties about that point of concurrency are represented in the problem. You are then need to create a diagram or model displaying why that point of concurrency works.

NC.M3.G-CO.10

3

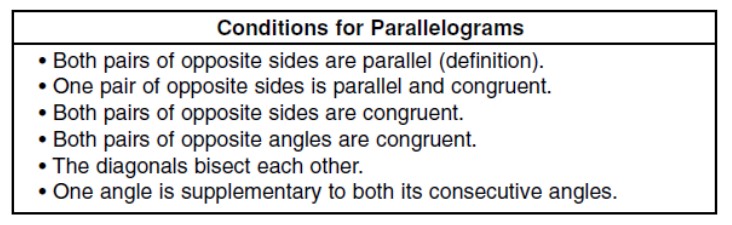

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

NC.M3.G-CO.14

3

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

NC.M3.G-CO.14

3

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

NC.M3.G-CO.14

3

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

NC.M3.G-CO.14

Outcome 14: Assessment

In the above proof, what is reason (3)?

In which quadrilateral are the diagonals always congruent?

ABCD is a rhombus.

In the parallelogram ABCD, m∠A = 2x + 50 and m∠C = 3x + 40 . The measure of ∠A is _____________.

Point Q represents which point of concurrency?

Three towns, Maybury, Junesville, and Cyanna, will create one sports center. Where should the center be placed so that it is the same distance from all three towns?

(Z is the bottom letter, chopped off in the figure! 🤔 )

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

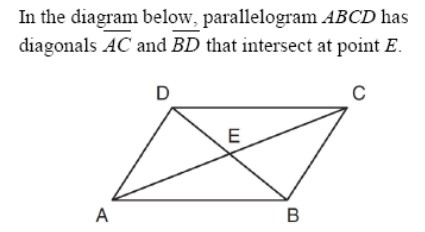

Which expression is NOT always true?

In the above proof, what is reason (3)?

In which quadrilateral are the diagonals always congruent?

ABCD is a rhombus.

In the parallelogram ABCD, m∠A = 2x + 50 and m∠C = 3x + 40 . The measure of ∠A is _____________.

Point Q represents which point of concurrency?

Three towns, Maybury, Junesville, and Cyanna, will create one sports center. Where should the center be placed so that it is the same distance from all three towns?

(Z is the bottom letter, chopped off in the figure! 🤔 )

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.Determine whether the quadrilateral must be a parallelogram.Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.

You can show that a quadrilateral is a parallelogram using any of the conditions listed below.

Determine whether the quadrilateral must be a parallelogram.
Justify Your Answer.
