Velocity Time Graphs

star
star
star
star
star
Last updated almost 6 years ago
11 questions
1
1
1
1
1
1
1
1
1
1
1
Question 1
1.

Question 2
2.

Question 3
3.

Question 4
4.

Question 5
5.

Question 6
6.

Question 7
7.

Question 8
8.

Question 9
9.

Question 10
10.

Question 11
11.

Draw both position-time graphs according to the velocity-time graph shown beside it.

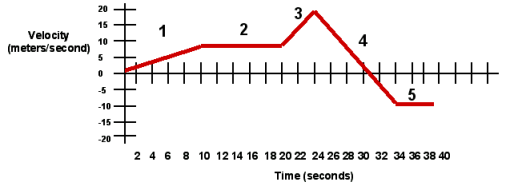

According to the Velocity vs Time graph, what is the object's motion for Segment 1?
Increase in velocity
decrease in velocity
constant velocity
zero velocity


According to the Velocity vs Time graph, what is the object's motion for Segment 2?
Increase in velocity
decrease in velocity
constant velocity
zero velocity


According to the Velocity vs Time graph, what is the object's motion for Segment 3?
Increase in velocity
decrease in velocity
constant velocity
zero velocity


According to the Velocity vs Time graph, what is the object's motion for Segment 4?
Increase in velocity
decrease in velocity
constant velocity
zero velocity


According to the Velocity vs Time graph, what is the object's motion for Segment 5?
Increase in velocity
decrease in velocity
constant velocity
zero velocity


According to the Velocity vs Time graph, does the object rest at any point?
Yes
No


According to the Velocity vs Time graph, when does the object change direction?
10 seconds
20 seconds
24 seconds
30 seconds
34 seconds

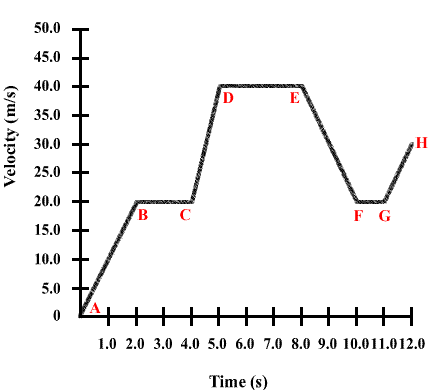

During which segment(s) is the object accelerating?
A-B
B-C
C-D
D-E
E-F
F-G
G-H

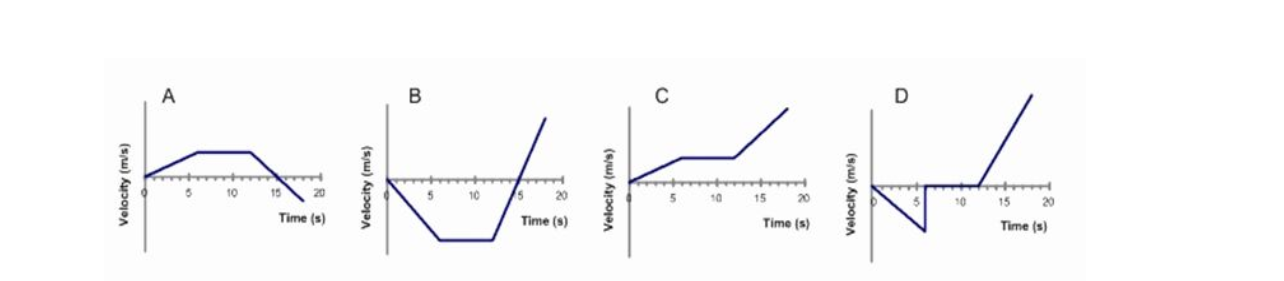

Which velocity-time graph shows: A person begins running faster and faster to the left until they can no longer increase their speed. They then continue to run at a fast constant speed until they run out of energy. So they turn around to go back to the origin and they decrease their speed until they reach the origin. Once they reach the origin they start to increase their speed once again as they continue moving to the right.
A
B
C
D
Which velocity-time graph shows: A person begins running faster and faster until they can no longer increase their speed. They then continue to run at a constant speed until they run out of energy. So they turn around to go back to the origin and they decrease their speed until they reach the origin. Once they reach the origin they start to increase their speed once again as they continue moving to the left.
A
B
C
D
