Energy in reactions

1

Which of the following reactions releases most energy to the surroundings?

1

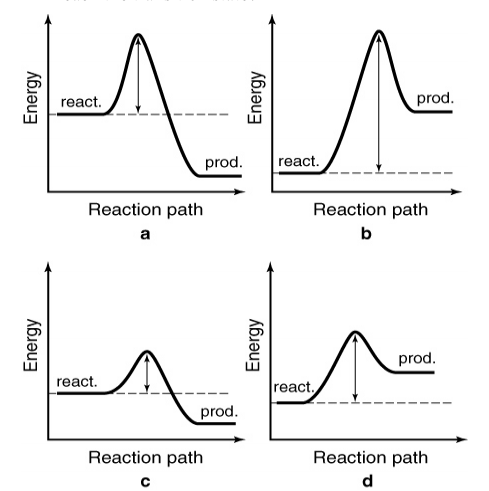

The energy profile graphs for four different reactions are shown. Which reaction requires the most energetic collisions to reach the activated complex?

1

The following energy profiles for four different reactions are shown. Which reaction is the most exothermic?

2

Consider the four energy profile graphs shown below:

Identify the two diagrams that could represent the same reaction cataysed and uncatalysed.

graph 1
graph 2
graph 3
graph 4

Graph showing reaction with catalyst present
Graph showing reaction with NO catalyst present

1

Is the following statement True or False?

The following graph must be used to answer the questions that follow:

5

Match the following values for the graph shown above:

Draggable item		Corresponding Item
Potential energy of reactants		40 kJ
Energy released when new bonds form		15 kJ
Potential energy of products		-25 kJ
∆H of reverse reaction		25 kJ
∆H of forward reaction		-35 kJ

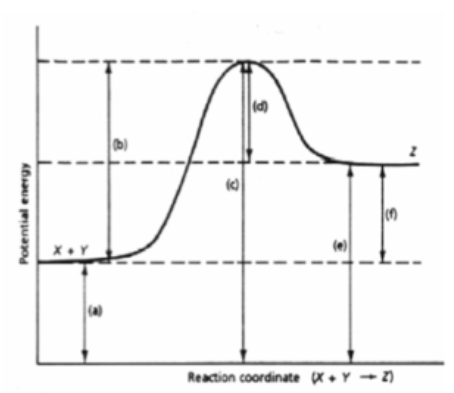

Use the following graph to answer the questions that follow:

1

Which of the letters (a-f) represents the energy of the products?

1

Which of the letters (a-f) represents the energy of the activated complex?

1

Which of the letters (a-f) represents the activation energy (forward reaction)?

1

Which of the letters (a-f) represents the heat of reaction (forward reaction)?

1
