The following summative is a digital, performance based exam, which covers the standard MS-PS2-2.
1
1
1
1
1
Question 3
3.
Fill in the Blank: A/an _________
force causes no change to the acceleration of an object.
1
1
1
Question 7
7.

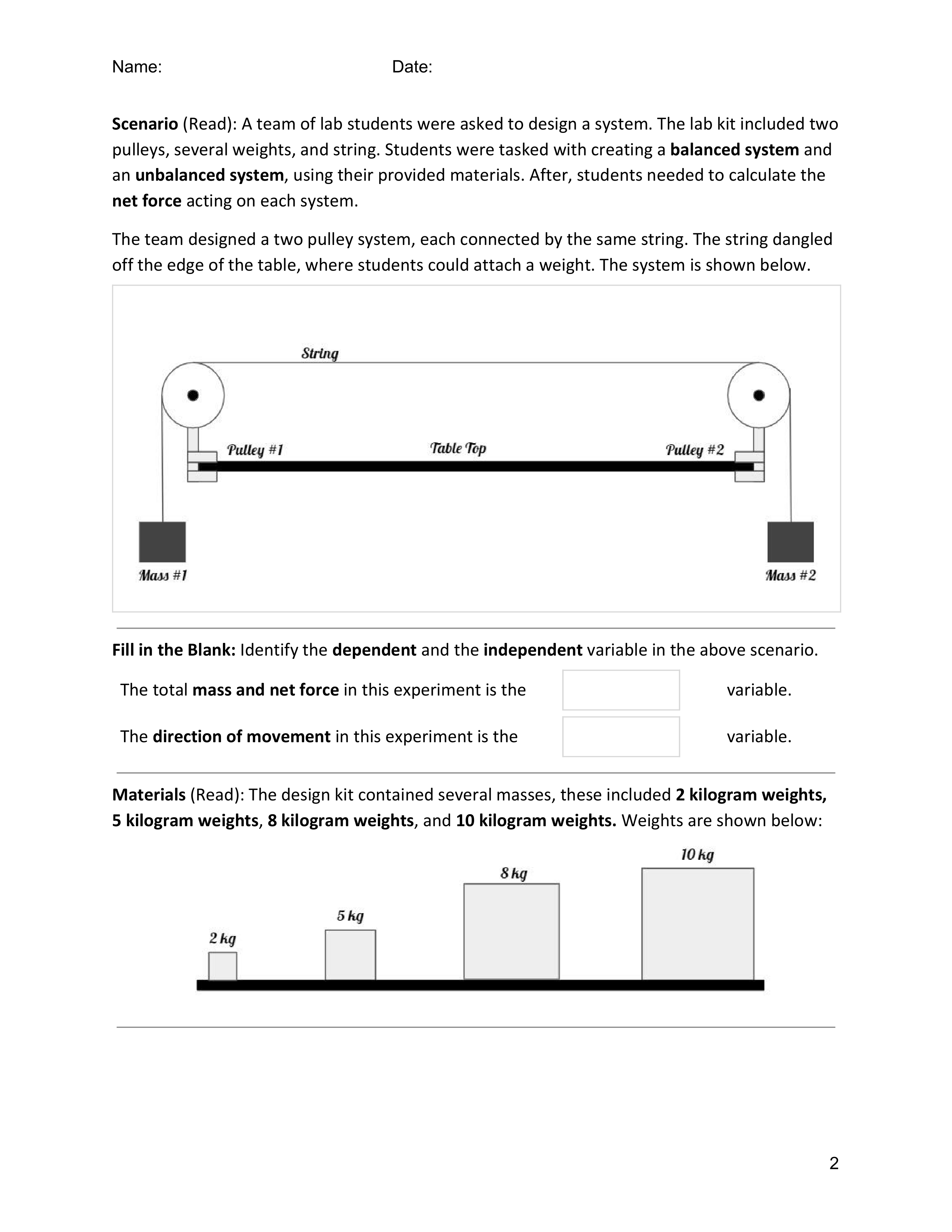

Using the question to the left (fill in the blank) select the appropriate answer below. Be sure to read the scenario on the top of page #2 first!
Question 8
8.
Using the question to the left (fill in the blank) select the appropriate answer below. Be sure to read the scenario on the top of page #2 first!
1
1
Question 10
10.
Calculate the forcedue to gravity acting on mass #2 (the right side) in the space below: (again, skip units)
1
Question 11
11.
1
1
Question 13
13.

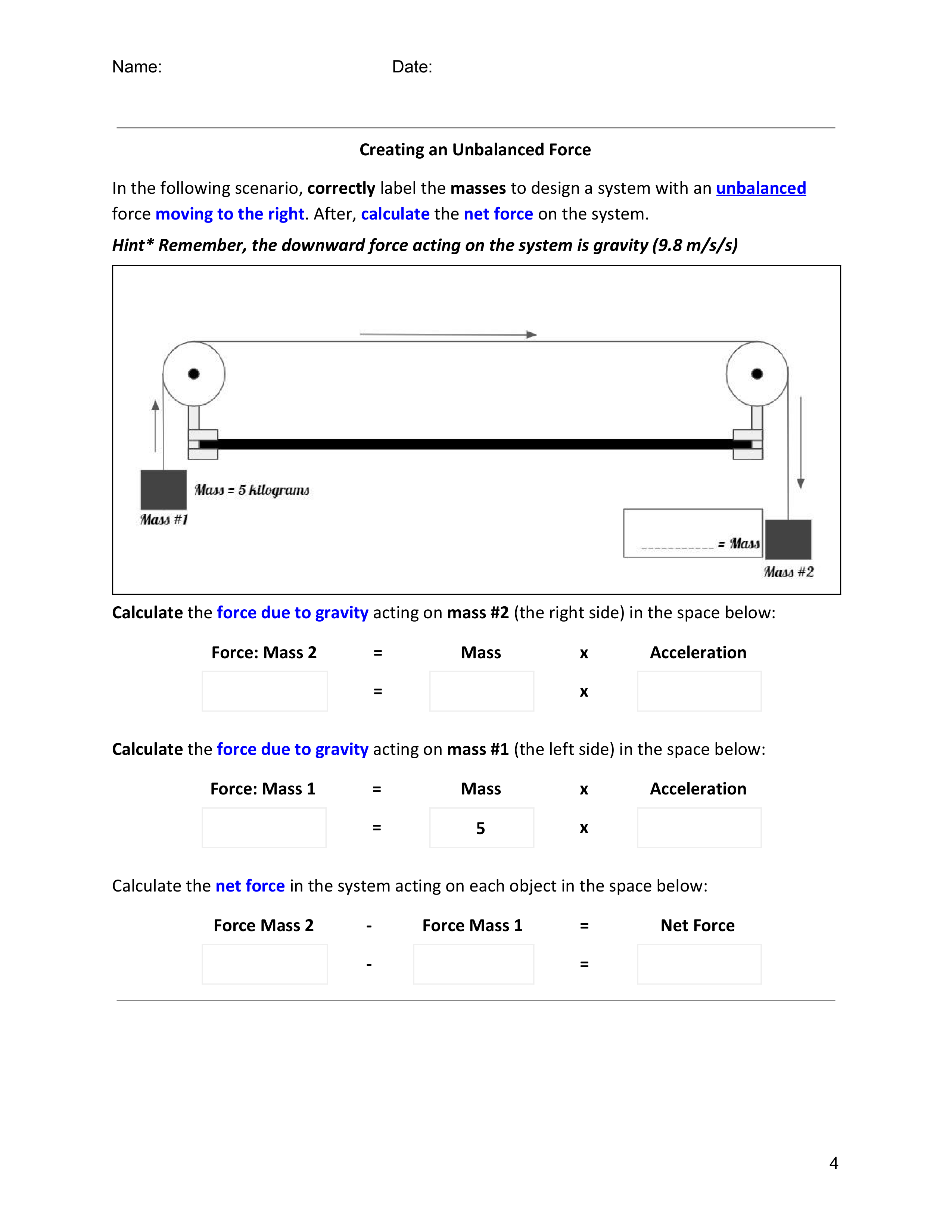

In the following scenario, correctly select a mass to design a system with an unbalancedforce moving to the right. After, calculate the net force on the system.
You can select from the following masses: 2 kg, 5 kg, 8 kg, or 10 kg.
1
Question 14
14.
1
1

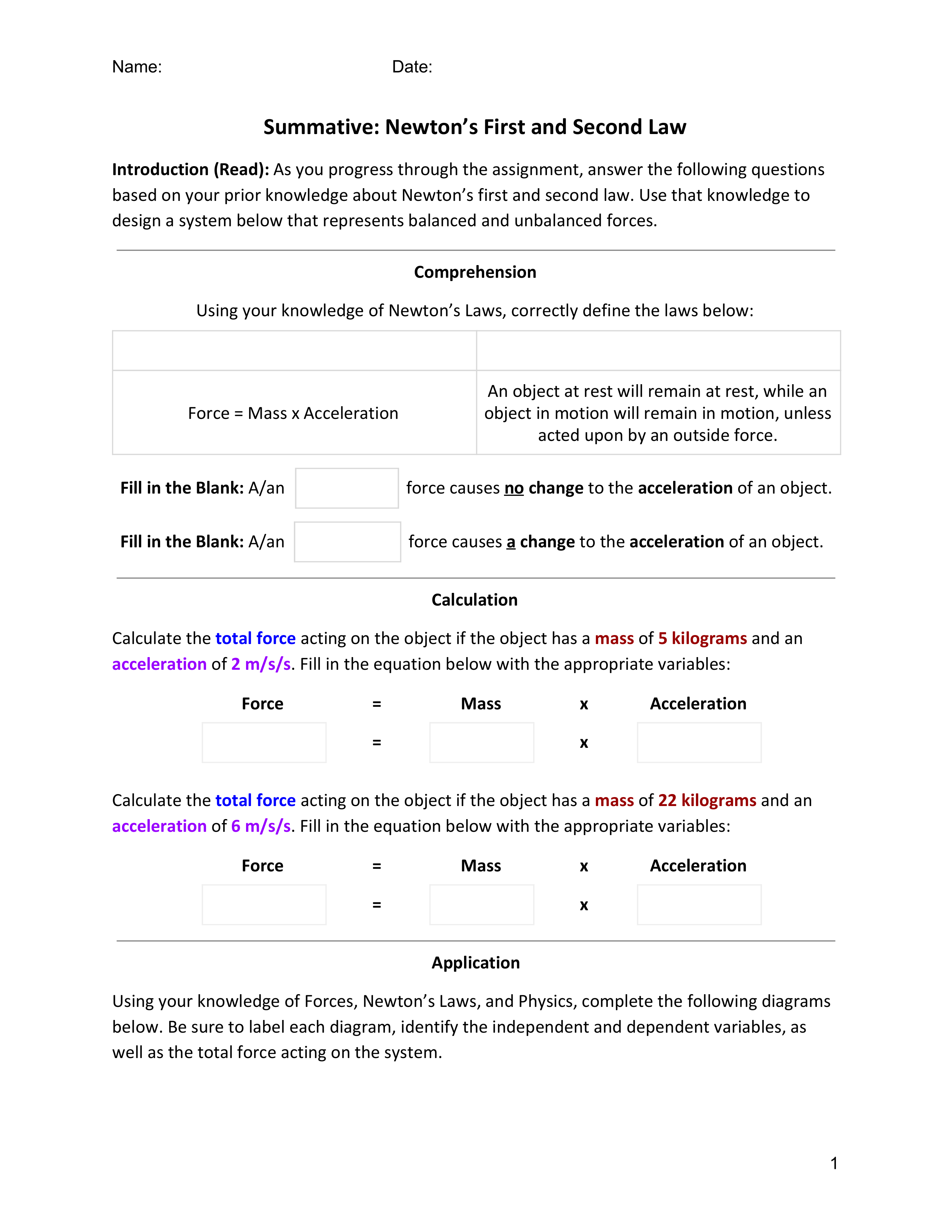

Question 1
1.
Label the (left) definition as the appropriate law below:
Question 2
2.
Label the (right) definition as the appropriate law below:
Question 4
4.
Fill in the Blank: A/an _________
force causesa change to the acceleration of an object.
Question 5
5.
Calculate the total force acting on the object if the object has a mass of 5 kilograms and an acceleration of 2 m/s/s. Fill in the equation below with the appropriate variables: (do not include units)
Question 6
6.
Calculate the total force acting on the object if the object has a mass of 22 kilograms and an acceleration of 6 m/s/s. Fill in the equation below with the appropriate variables: (do not include units)
Question 9
9.

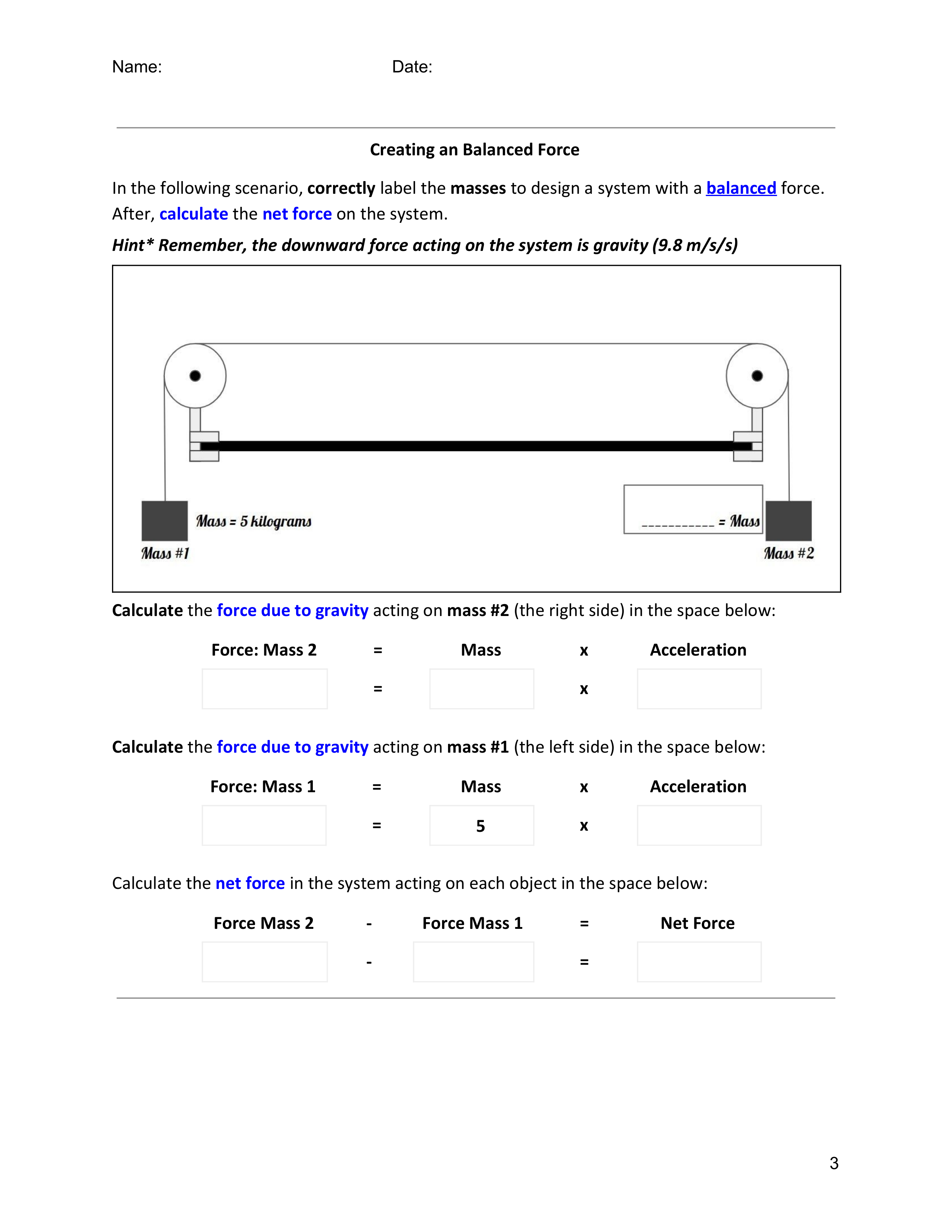

In the following scenario, correctly label the mass to design a system with a balanced force. After, calculate the net force on the system. What mass should you use to make this system balanced?
Calculate the forcedue to gravity acting on mass #1 (the left side) in the space below: (again, skip units)
Question 12
12.
Calculate the net force in the system acting on each object in the space below, by taking Force (Acting on Mass #2) - Force (Acting on Mass #1) = Net Force
Again, skip units
Calculate the forcedue to gravity acting on mass #2 (the right side) in the space below: (again, skip units)
Question 15
15.
Calculate the forcedue to gravity acting on mass #1 (the left side) in the space below: (again, skip units)
Question 16
16.
Calculate the net force in the system acting on each object in the space below, by taking Force (Acting on Mass #2) - Force (Acting on Mass #1) = Net Force
