IED - Find the Dimensioning Error - Part 1
By Ms. Stewart
star
star
star
star
star
Share
share
Last updated 20 days ago
10 questions
Add this activity
1
1
1
1
1
1
1
1
1
1

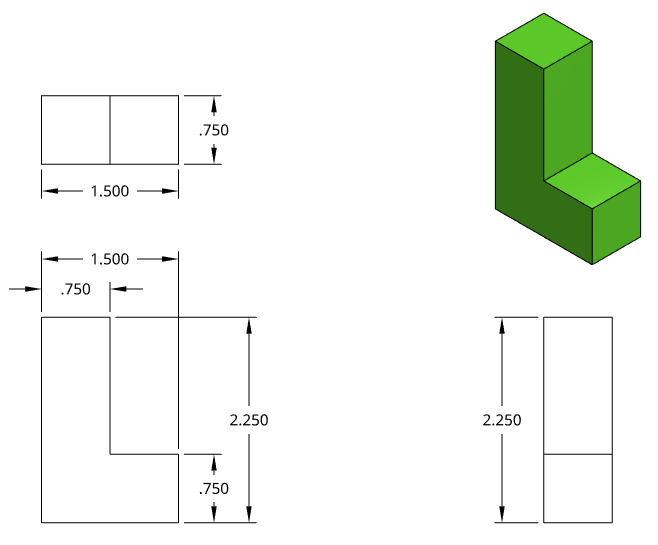

Question 1
1.

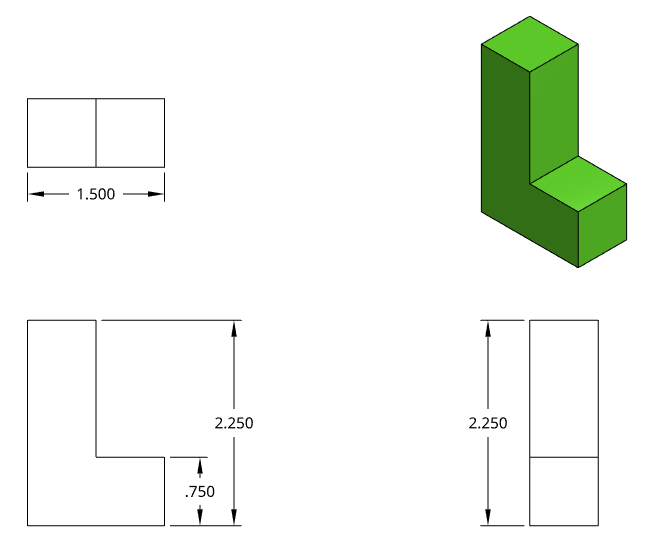

Question 2
2.

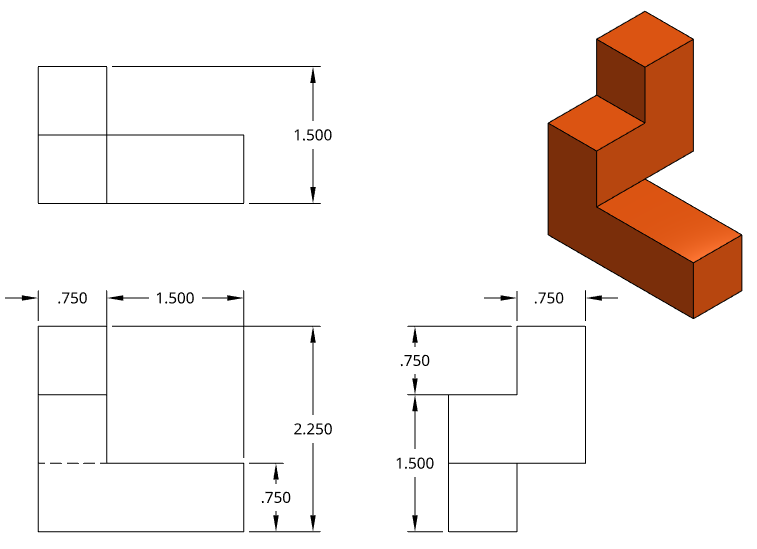

Question 3
3.

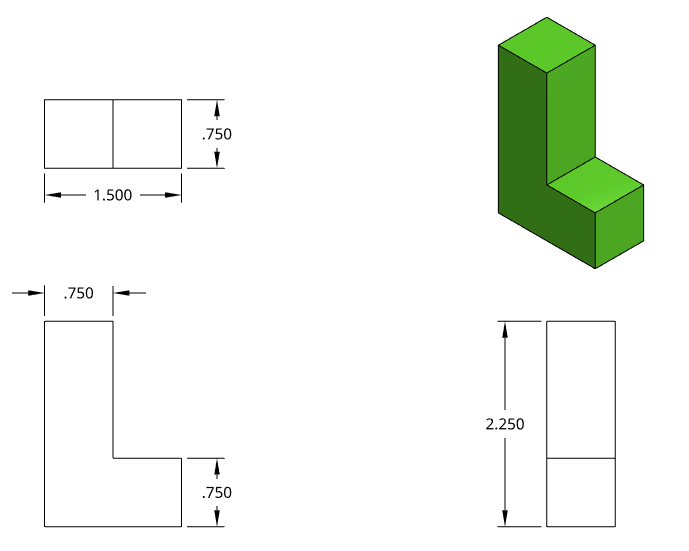

Question 4
4.

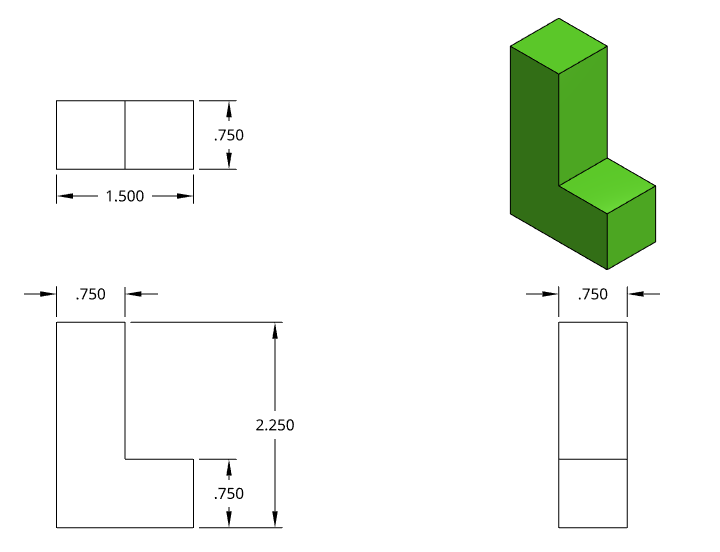

Question 5
5.

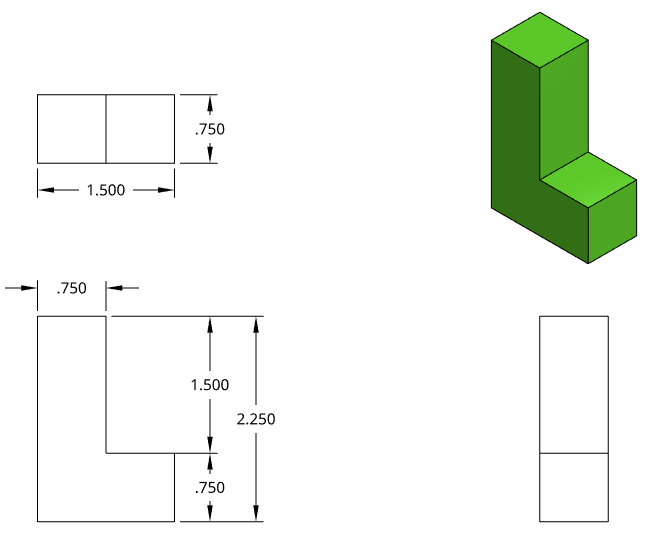

Question 6
6.

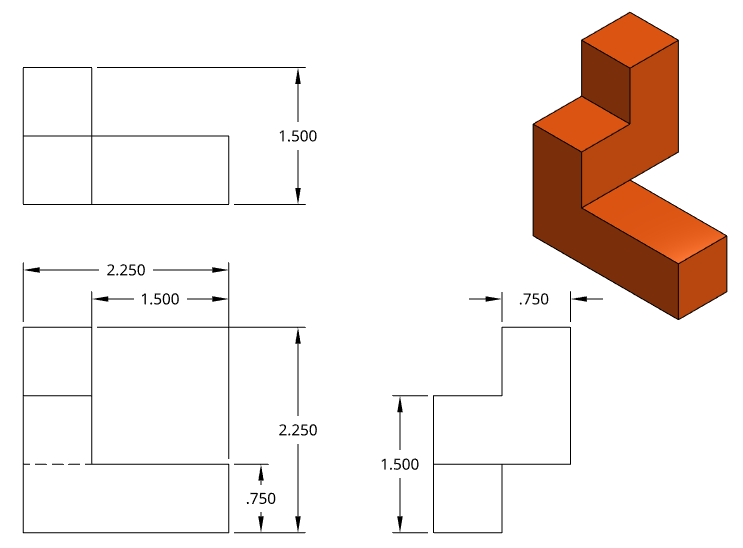

Question 7
7.

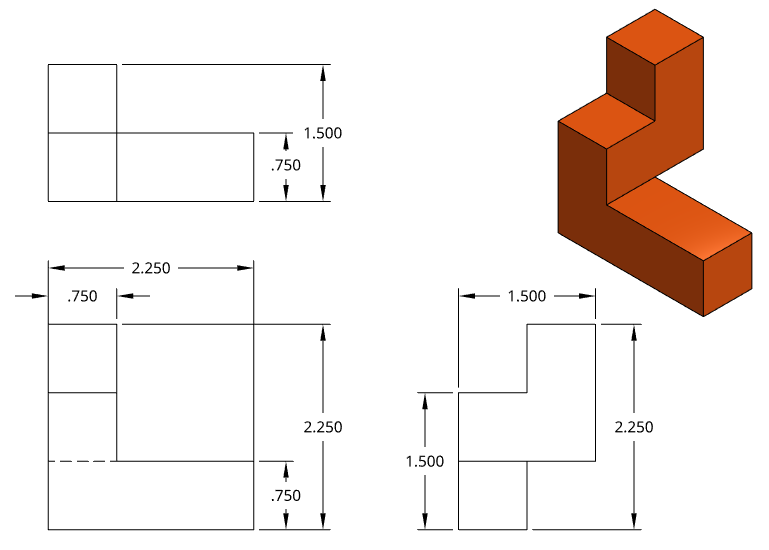

Question 8
8.
Question 9
9.
Question 10
10.
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
Dimensioned to a hidden line
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
Dimensioned to a hidden line
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
Dimensioned to a hidden line
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
Dimensioned to a hidden line
No dimensioning errors
Find the dimesioning errors. There may not be any, or there may be more than one.
Missing overall height
Missing a height dimension
Duplicate height given
Height has an over-dimensioned chain
Missing overall width
Missing a width dimension
Duplicate width given
Width has an over-dimensioned chain
Missing overall depth
Missing a depth dimension
Duplicate depth dimension given
Depth has an over-dimensioned chain
Dimensioned to a hidden line
No dimensioning errors
