AP Physics Net Forces

Last updated over 5 years ago

4 questions

1

Question 1

1.

At one moment during a walk around the block, there are four forces exerted upon Fido - a 10.0 kg dog. The forces are:
Fapp = 67.0 N at 30.0° above the horizontal (rightward and upward) Fnorm = 64.5 N, up Ffrict = 27.6 N, left Fgrav = 98 N, down
Resolve the applied force (Fapp) into horizontal and vertical components, then add the forces up as vectors to determine the net force.

1

1

1

Question 2

2.

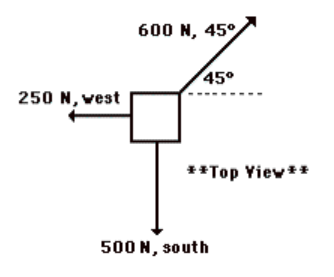

A pack of three Artic wolves are fighting over the carcass of a dead polar bear. A top view of the magnitude and direction of the three forces is shown in the diagram to the right.
a. Determine the resultant or net force acting upon the carcass. b. Determine the acceleration of the 750-kg polar bear carcass.

Question 3

3.

Renee is on Spring Break and pulling her 21-kg suitcase through the airport at a constant speed of 0.47 m/s. She pulls on the strap with 120 N of force at an angle of 38° above the horizontal. Determine the normal force and the total resistance force (friction and air resistance) experienced by the suitcase.

Question 4

4.

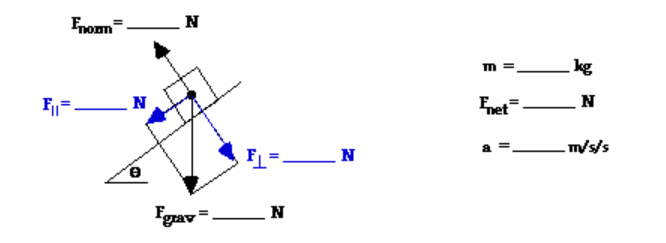

Lab partners Anna Litical and Noah Formula placed a 0.500-kg glider on their air track and inclined the track at 15.0° above the horizontal. Determine the net force and acceleration of the glider along the frictionless track. Use the structure provided with the free body diagram shown below.
