Note from the author:
The student uses Newton's Laws to complete Free Body Diagrams.
1
2
3
4
5
6
7
zoom_in
1
1
1
1
1
1
1
8
9
10
zoom_in
1
1
Question 9
9.
For question #6, calculate the maginitude of the applied force in the
upward direction
, type your answer below.
Ignore units*
1
Question 1
1.
Question 2
2.
Question 3
3.
Question 4
4.
Question 5
5.
Question 6
6.
Question 7
7.
Question 8
8.
Question 10
10.
For question #1, label the missing force:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #2, label the force pointing to the
left
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #2, label the force pointing to the
right
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #3, label the force pointing
up
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #3, label the force pointing
down
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #4, label the force pointing to the
left
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force
For question #4, label the force pointing
down
:
Normal Force
Friction Force
Tension Force
Applied Force
Gravitational Force

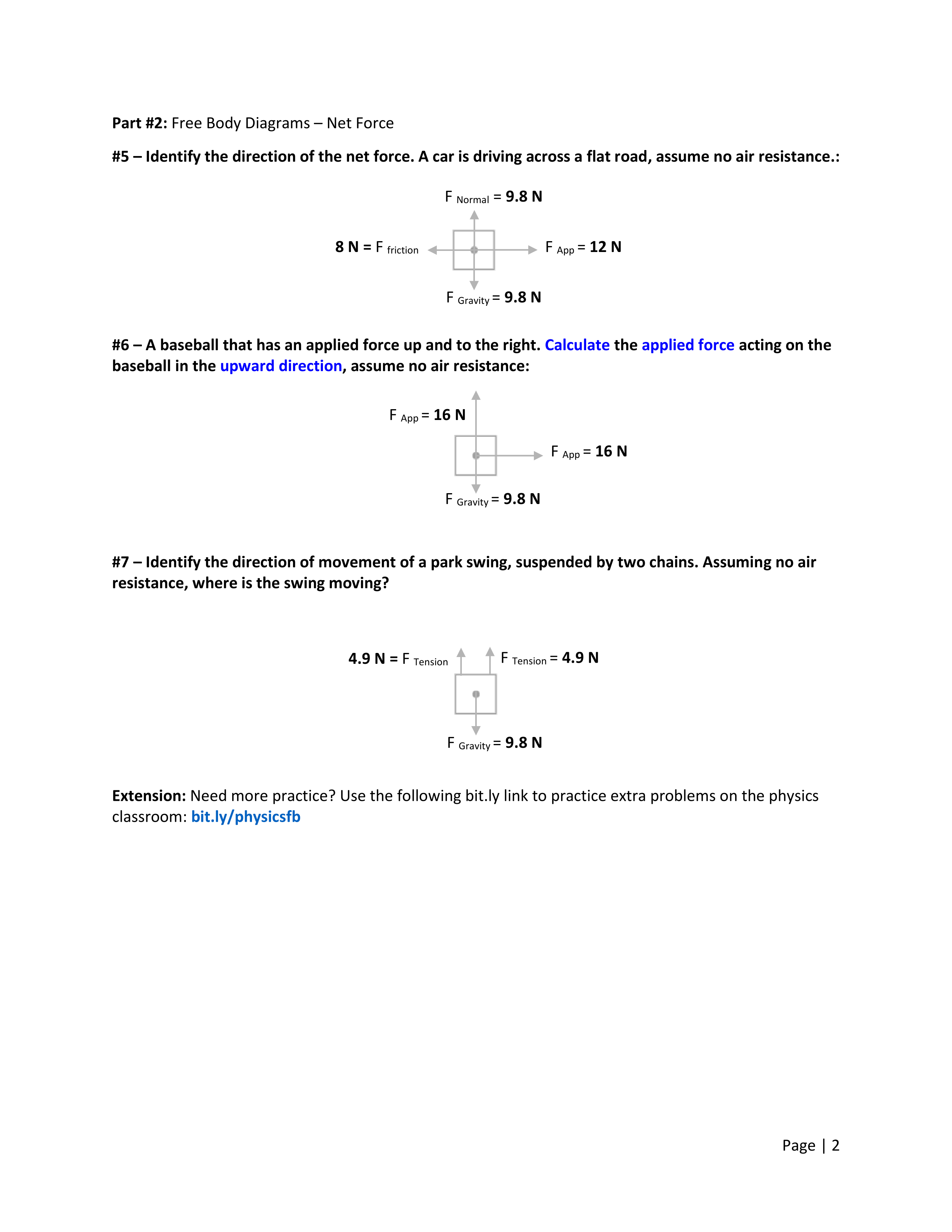

For question #5, identify the direction of the
net force
.
Up
Down
Left
Right
The object is not moving
For question #7, identify the direction of movement of a park swing, suspended by two chains. Use the free body diagram to the left.
The swing is moving up
The swing is moving down
The swing is moving to the left
The swing is moving to the right
The swing is
not
moving
