Introduction to Logic Gates
star
star
star
star
star
Last updated almost 4 years ago
7 questions
3
Match the name of the logic gate with its schematic symbol.
Match the name of the logic gate with its schematic symbol.
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
NOT | arrow_right_alt | |
OR | arrow_right_alt | |
NAND | arrow_right_alt | |
NOR | arrow_right_alt | |
AND | arrow_right_alt |
3

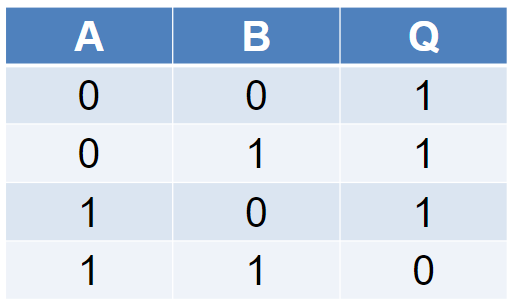

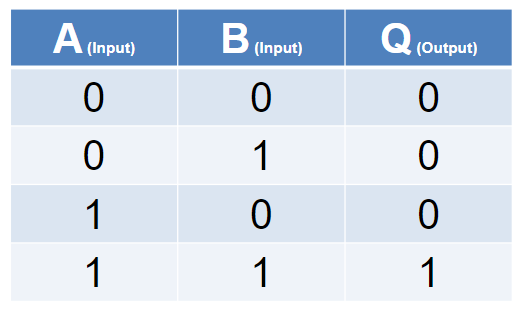

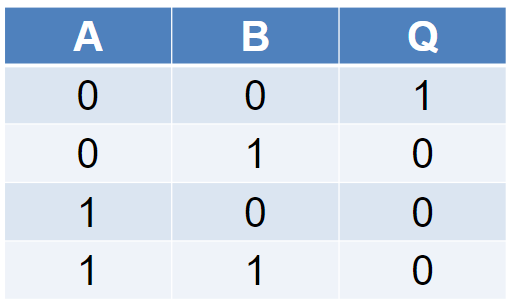

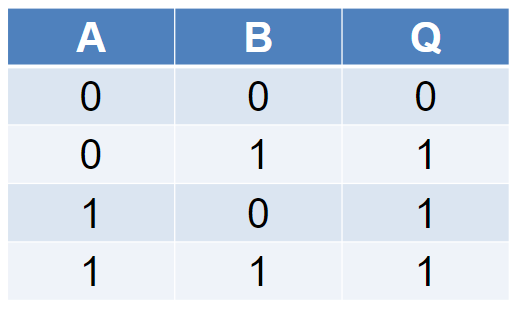

Match the logic gate with its truth table:
Match the logic gate with its truth table:
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
NOR | arrow_right_alt | |
NOT | arrow_right_alt | |
NAND | arrow_right_alt | |
OR | arrow_right_alt | |
AND | arrow_right_alt |
1
Use this datasheet to answer the question below.
What kind of logic gates are in the IC shown in the data sheet above?
Use this datasheet to answer the question below.
What kind of logic gates are in the IC shown in the data sheet above?
1
How many logic gates in the linked IC?
How many logic gates in the linked IC?
1
Which pins in the linked IC receive positive and negative?
Which pins in the linked IC receive positive and negative?
- Pin 7
- Pin 2
- Pin 1
- Pin 12
- Pin 3
- Pin 5
- Pin 14
- Positive
- Negative
1
Which pins in the linked IC are input pins for the logic gate?
Which pins in the linked IC are input pins for the logic gate?
1
Which pins in the linked IC are output pins for the logic gate?
Which pins in the linked IC are output pins for the logic gate?
