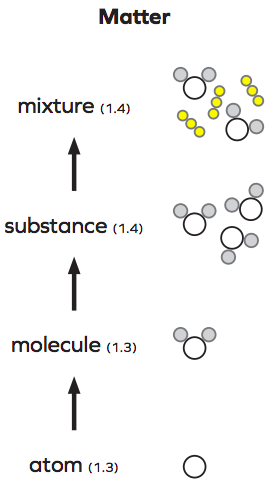

A ______________ is a group with more than one atom
Question 2
2.
A ______________ will have one type of molecule in it.
Question 3
3.
A ______________ will have more than onetype ofmolecule in it.
Question 4
4.

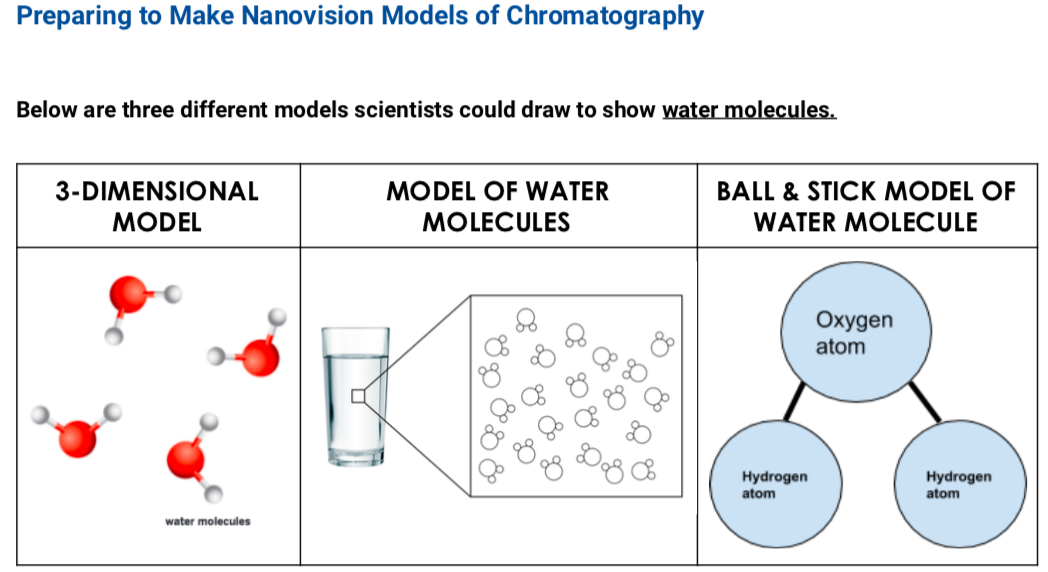

What do the three models of water molecules have in common?
Models
Question 5
5.

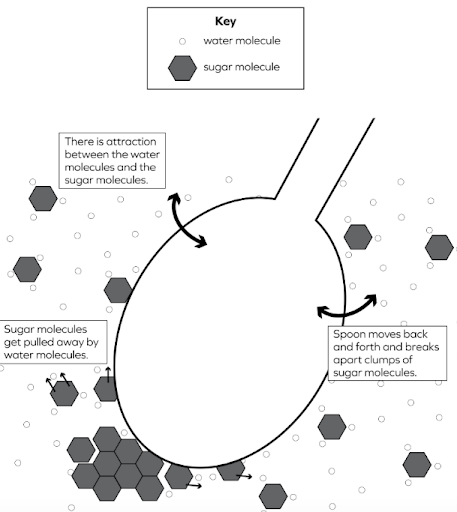

This model shows sugar and water mixing together.
Attract - to pull on an object
Does this model show sugar molecules are attracted to the water molecules?
Question 6
6.
Explain your answer for Question 5. What do you observe about the model that shows the sugar molecules are or are not attracted to water molecules?
Sentence starter: The model shows sugar molecules (are or are not) attracted to water molecules because _______________
Look for the MM 1.6 Chromatography Model assignment in classwork

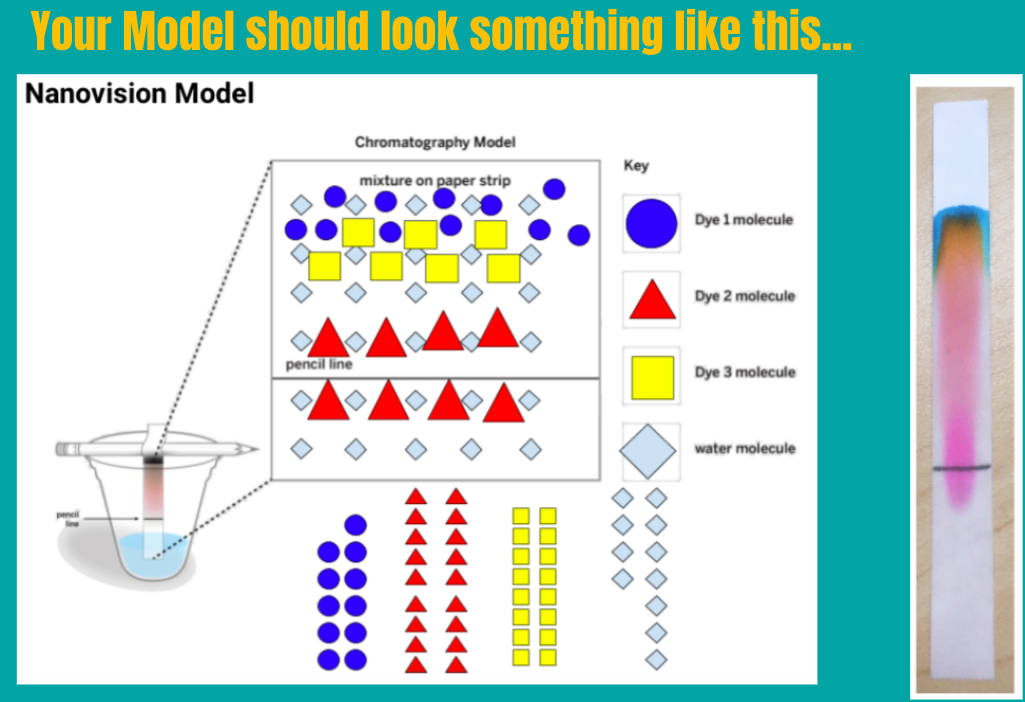

Make a model to show what the dye molecules look like on the chromatography paper
Question 7
7.

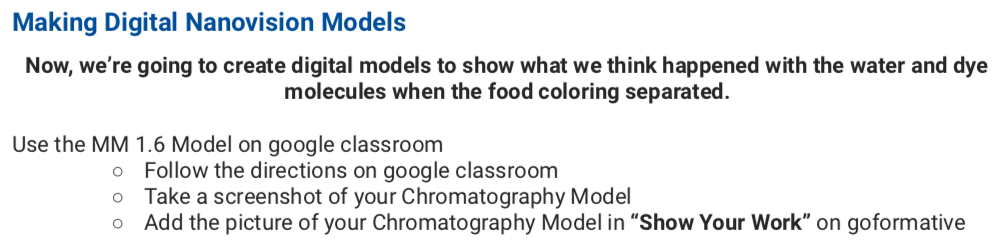

Use the MM 1.6 Chromatography Model on google classroom
Follow the directions on google classroom
Take a screenshot of your Chromatography Model
Add the picture of your Chromatography Model in “Show Your Work” on goformative
Use this picture to answer questions 8 to
Question 8
8.
Looking at the chromatography strip, which color dye molecules was the MOSTattracted to the water molecules?
Evidence is information from a source (text, model, diagram, sim, video) to prove or show your answer is correct.
Question 9
9.
How do you know? Explain your answer for number 8. Use evidence you observed (what did you see) from the Chromatography Paper
Sentence starter: The chromatography paper shows _______________
Question 10
10.
Looking at the chromatography strip, which color dye molecules was the LEASTattracted to the water molecules?
Question 11
11.
How do you know? Explain your answer for number 10. Use evidence you observed (what did you see) from the Chromatography Paper
Sentence starter: The chromatography paper shows _______________
Question 12
12.
What did you do to show the level of attraction (high attraction or low attraction) of molecules in our model?
Sentence starter: I put the ___________ color molecules at the ______________ of the chromatography paper because it had a high attraction to water molecules. I put the ___________ color molecules at the ______________ of the chromatography paper because it had a low attraction to water molecules.
EXIT TICKET
Use this Chromatography Model to answer the questions below:
Jamie and Raymar put food coloring (test mixture) on chromatography paper and the results are below.
Question 13
13.
How many colors do you see on Jamie's chromatography paper?
Question 14
14.
Is Jamie's food coloring (test mixture) a substance or a mixture?
Question 15
15.
How do you know? Explain your answer for Question 14. Use evidence (what you see) from the Chromatography model)
Sentence starter: Jamie's chromatography paper shows
Question 16
16.
How many colors do you see on Raymar's chromatography paper?
Question 17
17.
Is Raymar's food coloring (test mixture) a substance or a mixture?
Question 18
18.
How do you know? Explain your answer for Question 17. Use evidence (what you see) from the Chromatography model)
Sentence starter: Raymar's chromatography paper shows
