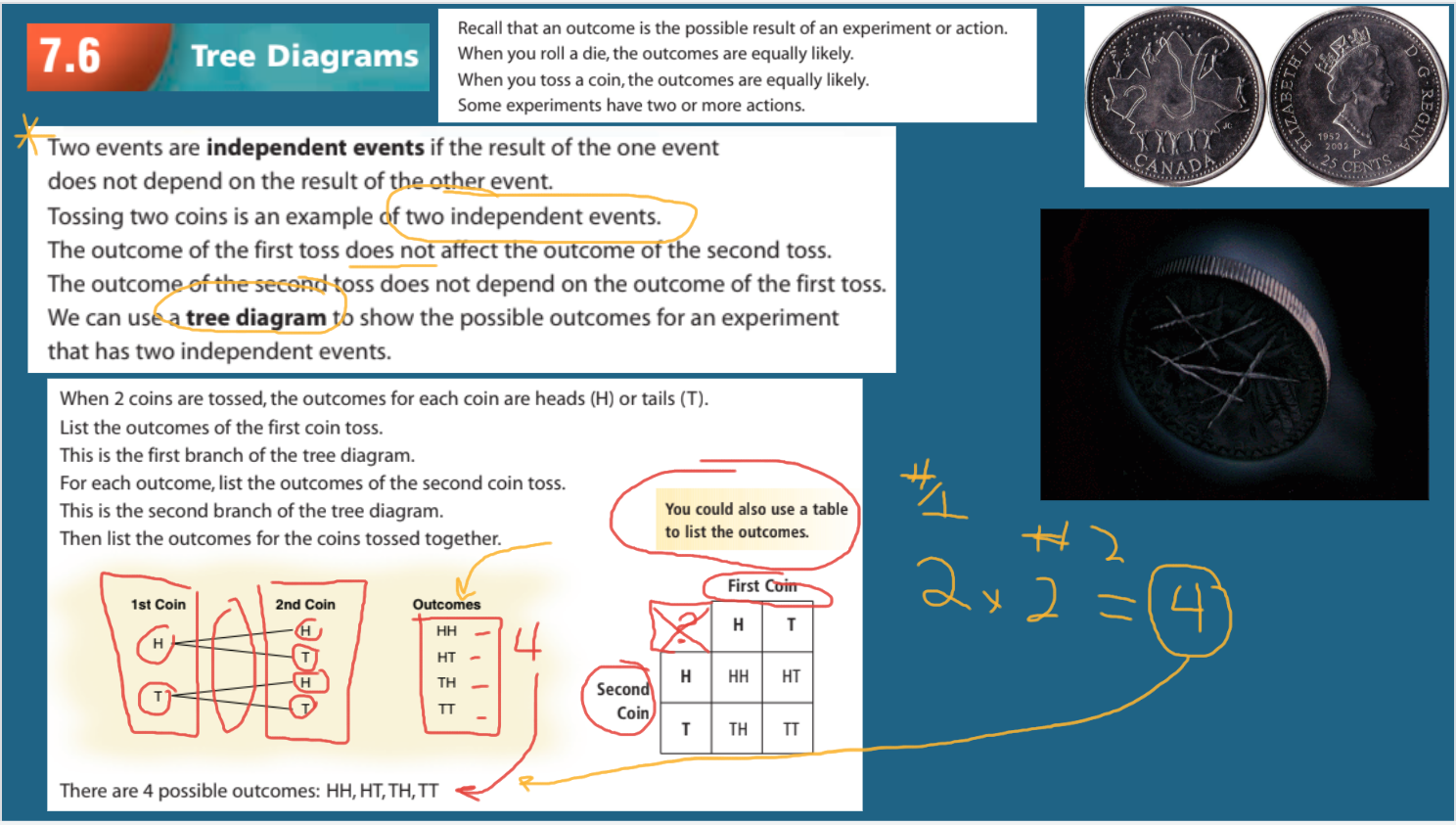

Gr. 7- 7.6 Tree Diagrams

Last updated about 5 years ago

3 questions

6

Question 1

1.

Create a tree diagram that shows all the possible outcomes for the following "independent events".
Rolling a die labeled 3 to 8 and tossing a coin.

6

6

Question 2

2.

Create a tree diagram that shows all the possible outcomes for the following "independent events".
Rolling a tetrahedron labeled 1 to 4 and spinning a pointer on this spinner.

Question 3

3.

Create a tree diagram that shows all the possible outcomes for the following "independent events".
Rolling a pair of dice labeled 1 to 6
