Distance Time Graphs OALH

Last updated almost 5 years ago
29 questions
Do now
1

Define Speed

1

Write the equation to calculate speed

1

Name 3 non-contact forces

1

What is the “dependent variable”?

1

Calculate the mean (average), ignoring the anomaly:
5.2 5.5 5.4 6.1

1

A boat travels 46 km in 60 minutes. What is its speed in km/h?

Key Knowledge
1

What does a straight line on a distance-time graph show?

1

What does a curved line on a distance-time graph show?

1

What does a horizontal line on a distance-time graph show?

1

State some units for distance

1

State the units for time

1

What does a straight line on a distance-time graph show?

1

What does a curved line on a distance-time graph show?

1

What does a horizontal line on a distance-time graph show?

1

State some units for distance

1

State the units for time

Recall quiz
1

1. On a distance time graph a straight line shows us that the object is ________

1

2. On a distance time graph a horizontal line shows us that object is ________

1

3. On a distance time graph a curved line shows us the object is ________

Application tasks
1

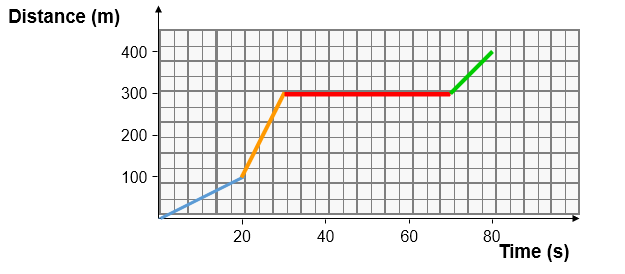

We do:
calculate the speed the car is travelling from 20 to 30s

1

Calculate the speed of the car at the red line

1

Calculate the speed of the car at the green line

Student Sheet Questions

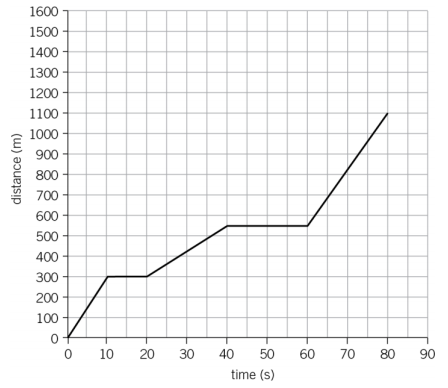

Use this graph to answer the following questions
1

For how long is the motorbike at rest during the journey?

1

What distance has the motorbike travelled in the first 25 seconds?

1

What distance does the motorbike travel between 60 and 80 seconds?

1

Work out the speed of the motorbike during the first 10 seconds. Show your calculations.

1

Between what times did the motorbike travel at the lowest speed (not including the time it was at rest)? Give a reason for your answer

1

Work out the speed of the motorbike during the slowest time. Show your calculations.

1

Work out the speed of the motorbike between 60 and 80 seconds. Show your calculations.
