Parallel Circuit Practice

star
star
star
star
star
Last updated about 5 years ago
5 Nsɛmmisa
20
Asemmisa {{asɛmmisaAhyɛnsode}}
1.

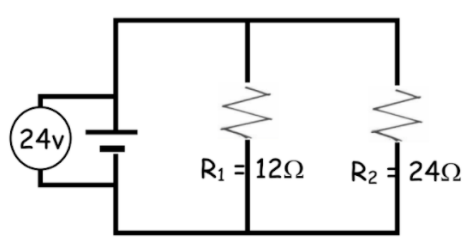

Create this circuit in the PhET simulator (https://phet.colorado.edu/sims/html/circuit-construction-kit-dc/latest/circuit-construction-kit-dc_en.html):

Use light bulbs in your simulation for each of the resistors. Set the voltage and resistance for each component as noted in the picture. Fill out the chart by finding the unknowns using the ammeter and voltmeter in the simulator. Upload a screenshot of your circuit with the ammeter hovering over the wire demonstrating measured current.

20
20
20
20
Asemmisa {{asɛmmisaAhyɛnsode}}
2.

Fill out the chart below, given the information in the parallel circuit:

Asemmisa {{asɛmmisaAhyɛnsode}}
3.

Fill out the chart below, given the information in the parallel circuit:

Asemmisa {{asɛmmisaAhyɛnsode}}
4.

Fill out the chart below, given the information in the parallel circuit:

Asemmisa {{asɛmmisaAhyɛnsode}}
5.

Fill out the chart below, given the information in the parallel circuit:
