Gr. 7- Structure & Forces: Section 2.2

Last updated about 1 month ago

6 Nsɛmmisa

2.2 External Forces Acting on Structures

null

4

Asemmisa {{asɛmmisaAhyɛnsode}}

1.

As per our discusion what is the definition of an "External Force"? Provide an example of at least ONE external force that acts constantly upon you.

4

4

4

4

8

Asemmisa {{asɛmmisaAhyɛnsode}}

2.

Why would you measure taller in space than you would back down on the earth? Explain.

Asemmisa {{asɛmmisaAhyɛnsode}}

3.

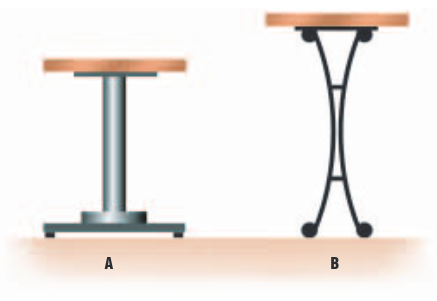

What is meant by "The Centre of Gravity"? Provide a practical example of this principle in action.

Asemmisa {{asɛmmisaAhyɛnsode}}

4.

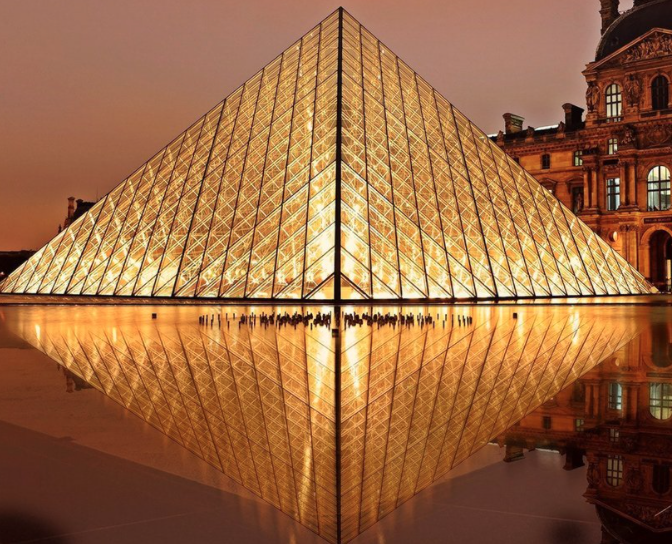

What is "symmetry"? Why is this principle important in regard to structure design? (pg. 287)

Asemmisa {{asɛmmisaAhyɛnsode}}

5.

Define "LOAD"? What is the difference between "Static" and "Dynamic" load? (pg. 288 & 287)

Asemmisa {{asɛmmisaAhyɛnsode}}

6.

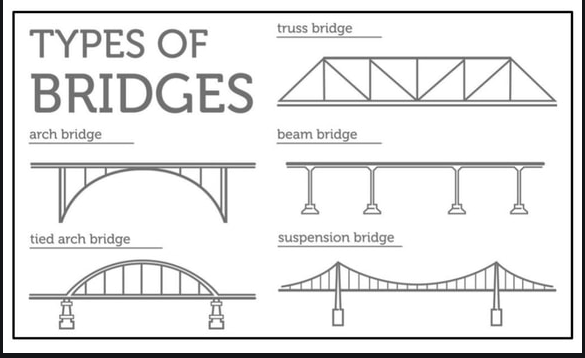

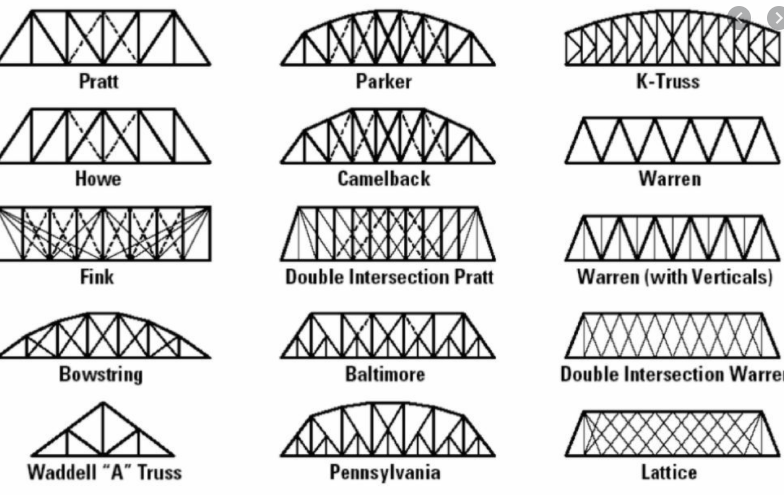

Provide examples of the FOUR types of bridges we talked about, either by sketching or inserting an image. Be sure to label each bridge what style they are. (pg. 290 & 291)
