12.1-12.2 Review

NOTE: This review will be slightly shorter than the physical Chapter 12 Review provided in class.

1

An isometry preserves what two elements of a figure?

1

Which of the following is NOT an isometry?

Reflection

Rotation

Dilation

Translation

1

A glide reflection consists of which two of the following transformations?

Reflection

Rotation

Dilation

Translation

Use the following information for the next 4 questions:

Using the rule (x, y) --> (x + 3, y - 2), find the image of the following points.

1

(6, 0)

1

(-1, 2)

1

(-4, -4)

1

(1, 5)

Use the following information for the next 4 questions:

Using the rule (x, y) --> (x - 1, y + 5), find the image of the following points.

1

(0, 6)

1

(-4, 7)

1

(4, 0)

1

(11, 2)

Use the following information for the next 4 questions:

Using the rule (x, y) --> (x, y + 4), find the image of the following points.

1

(-1, 3)

1

(-4, 2)

1

(5, 9)

1

(6, -6)

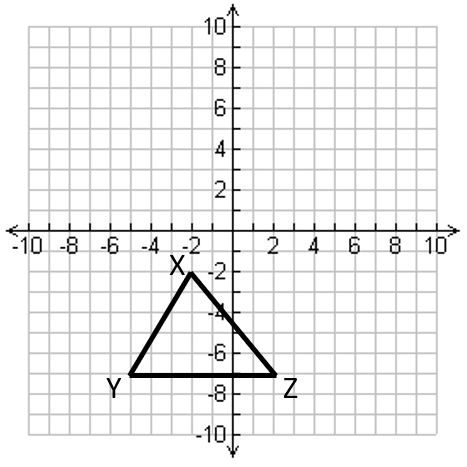

For #16-19, the graph of \triangle{XYZ} is given.

Use the translation (x, y) --> (x + 3, y + 4) to find the coordinates of X', Y', and Z', and then draw \triangle{X'Y'Z'}.

null

1

Find X'

1

Find Y'

1

Find Z'

1

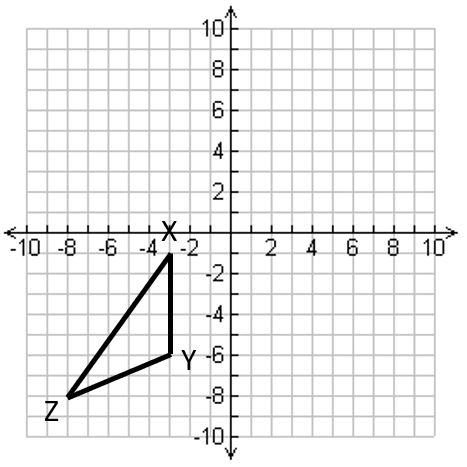

For #20-23, the graph of \triangle{XYZ} is given.

Use the translation (x, y) --> (x - 4, y - 9) to find the coordinates of X', Y', and Z', and then draw \triangle{X'Y'Z'}.

null

1

Find X'

1

Find Y'

1

Find Z'

1

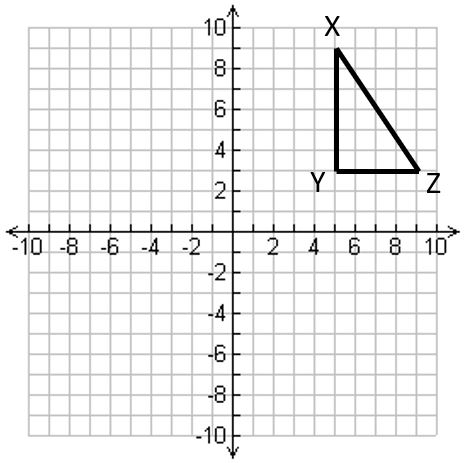

For #24-27, the graph of \triangle{XYZ} is given.

Use the translation (x, y) --> (x + 8, y + 8) to find the coordinates of X', Y', and Z', and then draw \triangle{X'Y'Z'}.

null

1

Find X'

1

Find Y'

1

Find Z'

1

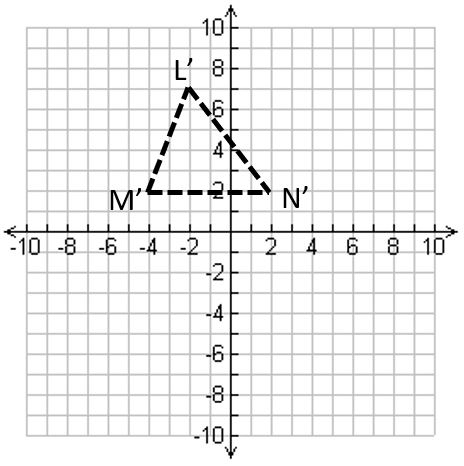

For #28-31, the translation (x, y) --> (x + 2, y - 3) was used to form \triangle{L'M'N'}.

Find the coordinates of the original \triangle{LMN}, and then graph it.

null

1

Find L

1

Find M

1

Find N

1

Use the following information for the next 3 questions:

Find the component form of the vector that describes the translation from point P to Point P'. Use <x,y>

1

P(-3, 6) and P'(0, 1)

1

P(-7, 0) and P'(-2, 0)

1

P(4, 4) and P'(5, 9)

1

Using the point P'(4, 5), find the component form of the vector that describes the translation from point P(1, 3). Use <x,y>

1

Use the graph of \triangle{ABC} and \triangle{A'B'C'} to write the translation in vector form.

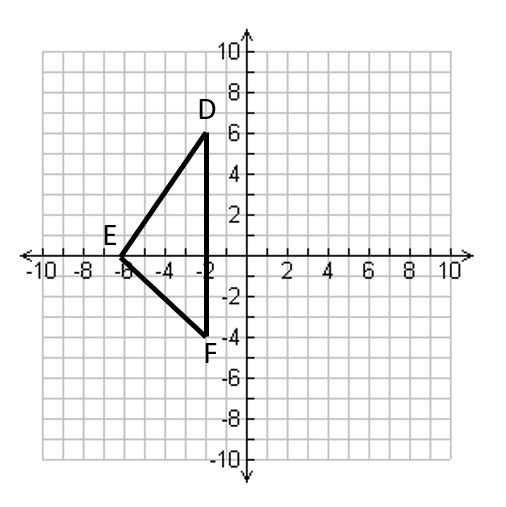

For #37-40, reflect the figure over the x-axis.

Find the coordinates of D', E', and D', and then draw \triangle{D'E'F'}.

null

1

Find D'

1

Find E'

1

Find F'

1

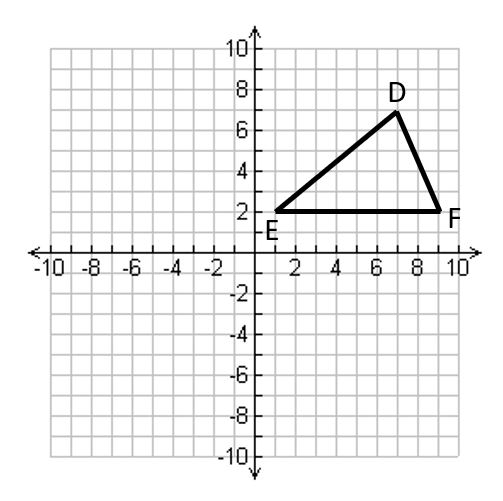

For #41-44, reflect the figure over the y-axis.

Find the coordinates of D', E', and D', and then draw \triangle{D'E'F'}.

null

1

Find D'

1

Find E'

1

Find F'

1

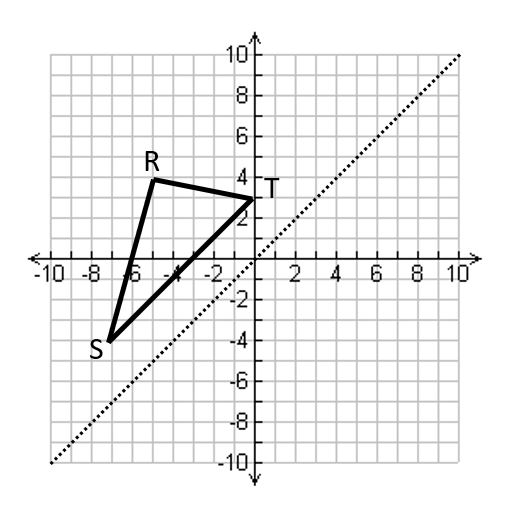

For #45-48, reflect the figure over the line y = x.

Find the coordinates of R', S', and T', and then draw \triangle{R'S'T'}.

null

1

Find R'

1

Find S'

1

Find T'

1

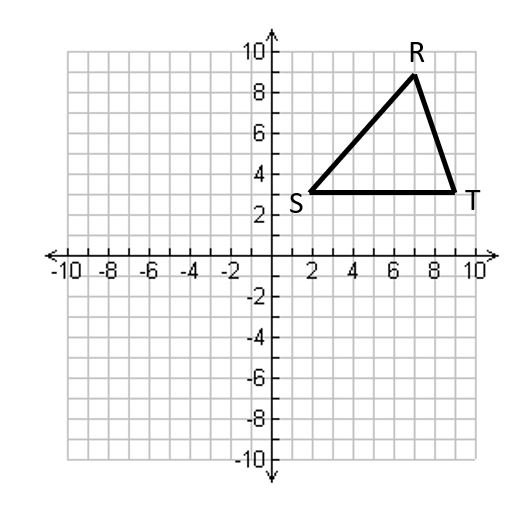

For #49-52, reflect the figure over the line y = 2.

Find the coordinates of R', S', and T', and then draw \triangle{R'S'T'}.

null

1

Find R'

1

Find S'

1

Find T'

1
