Geo453 Review Similar Triangles and Indirect Measurement
star
star
star
star
star
Last updated over 4 years ago
10 questions
1 point
1
Question 1
1.

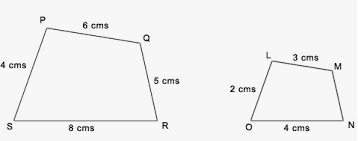

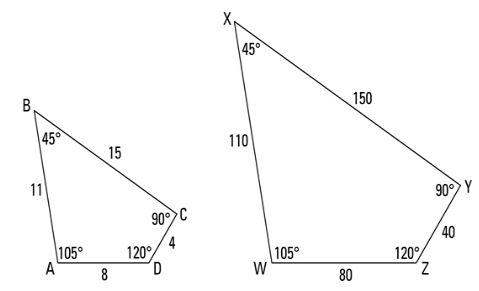

Determine if the polygons below are similar.
Show your work in the "show your work" box below to support your answer.
1 point
1
Question 2
2.
Use the figures below to complete the similarity statement: CBAD ~ ____________.
1 point
1
Question 3
3.

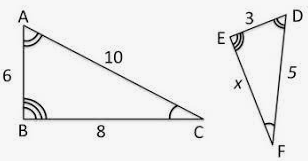

The two triangles below are similar. Write a proportion and solve for x.
Show your work in the box below.
1 point
1
Question 4
4.
The two quadrilaterals below are similar. Write a proportion and solve for MN.
Show your work in the box below.
1 point
1
Question 5
5.
Determine if the two triangles below are similar based on the information given. If yes, choose the correct postulate, if not, choose not similar.
You must show your work in the "show your work" box to support your answer.
1 point
1
Question 6
6.
Determine if the two triangles below are similar based on the information given. If yes, choose the correct postulate, if not, choose not similar.
You must show your work in the "show your work" box to support your answer.
1 point
1
Question 7
7.
Determine if the two triangles below are similar based on the information given. If yes, choose the correct postulate, if not, choose not similar.
You must show your work in the "show your work" box to support your answer.
1 point
1
Question 8
8.
Set up a proportion and solve for h.
You must show your work!
1 point
1
Question 9
9.
The lead statue of the Korean War Memorial in Washington, D.C., casts a 43.5 inch shadow at the same time a nearby tourist casts a 32-inch shadow. If the tourist is 64 inches tall, how tall is the lead statue?
You must show your work!
1 point
1
Question 10
10.
On a sunny day, if a 36-inch yardstick casts a 21-inch shadow, how tall is a building whose shadow is 168ft? Draw and label a picture in the show your work area. Then set up a proportion and solve.
