Please use your notes, class notes posted to Classroom, calculator, and the formula sheet.

Formula Sheet: https://drive.google.com/file/d/0B62IyFF7Ecq7Q09pYlBEUjRXVTA/view?usp=sharing

Work needs to be uploaded for credit

0.5

MP.1

0.5

MP.1

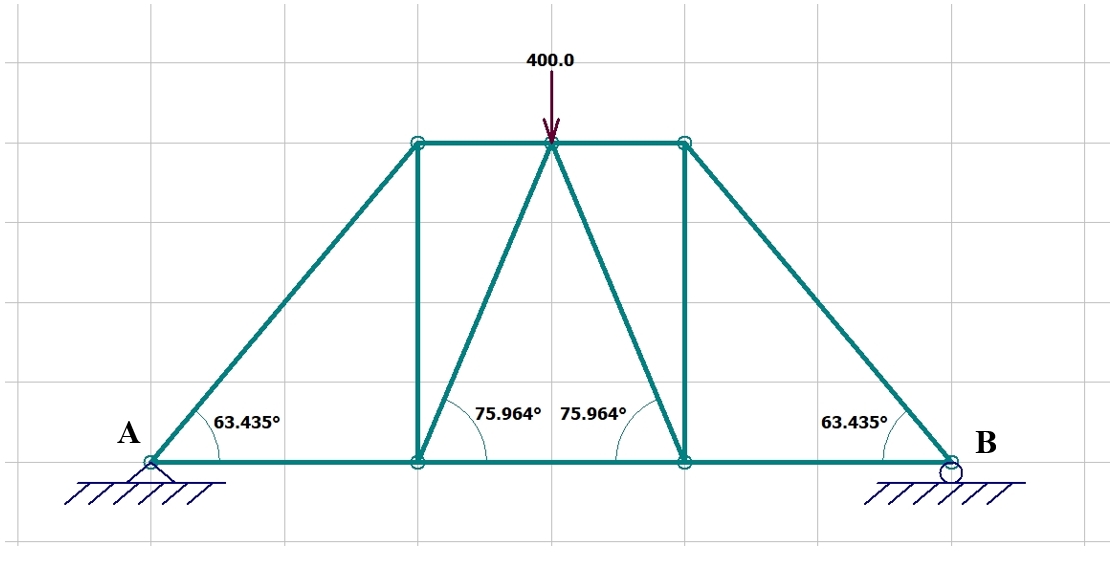

Given the truss above, find the following:
(Assume each square represents 1 foot by 1 foot and all forces are measured in lbs.)
No units needed in the answer.

1

MP.1

1

0.5

1

0.5

1

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

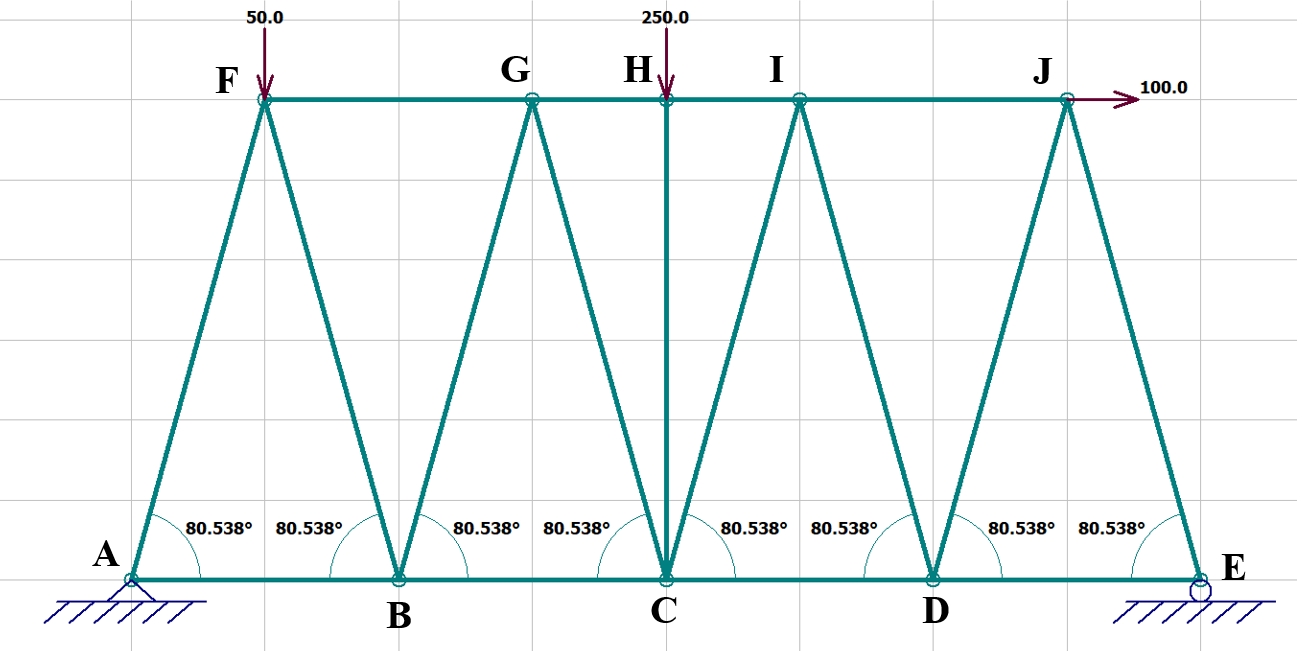

Given the truss above, find the following:
(Assume each square represents 1 foot by 1 foot and all forces are measured in lbs.)
Round answers (if necessary) to 2 decimal places.

1

0.5

1

0.5

1

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Last Truss problem - YOU CAN DO IT!

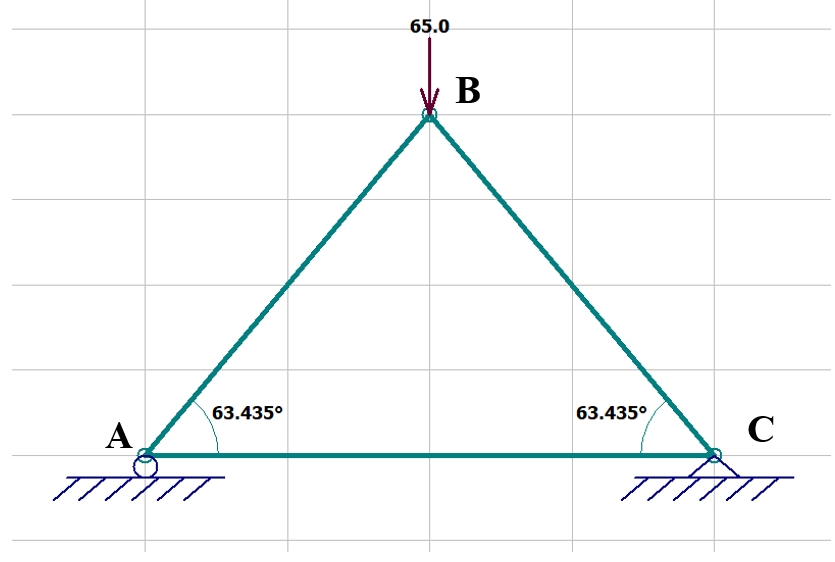

Given the truss above, find the following:
(Assume each square represents 1 foot by 1 foot and all forces are measured in lbs.)
Indicate units in your answers and round answers (if necessary) to 2 decimal places.

1

0.5

1

0.5

1

0.5

1

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

0

Extra Credit / Challenge

Now that you have found the reaction forces for the above truss, Determine the force in member AB.

Indicate units in your answer and round final answers (if necessary) to 2 decimal places.
Attach a photo of your work to find the force in member AB. No Units.

Trusses - POE - Mr. Zwart

Trusses - POE - Mr. Zwart

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Extra Credit / Challenge

Now that you have found the reaction forces for the above truss, Determine the force in member AB.

Indicate units in your answer and round final answers (if necessary) to 2 decimal places.
Attach a photo of your work to find the force in member AB. No Units.

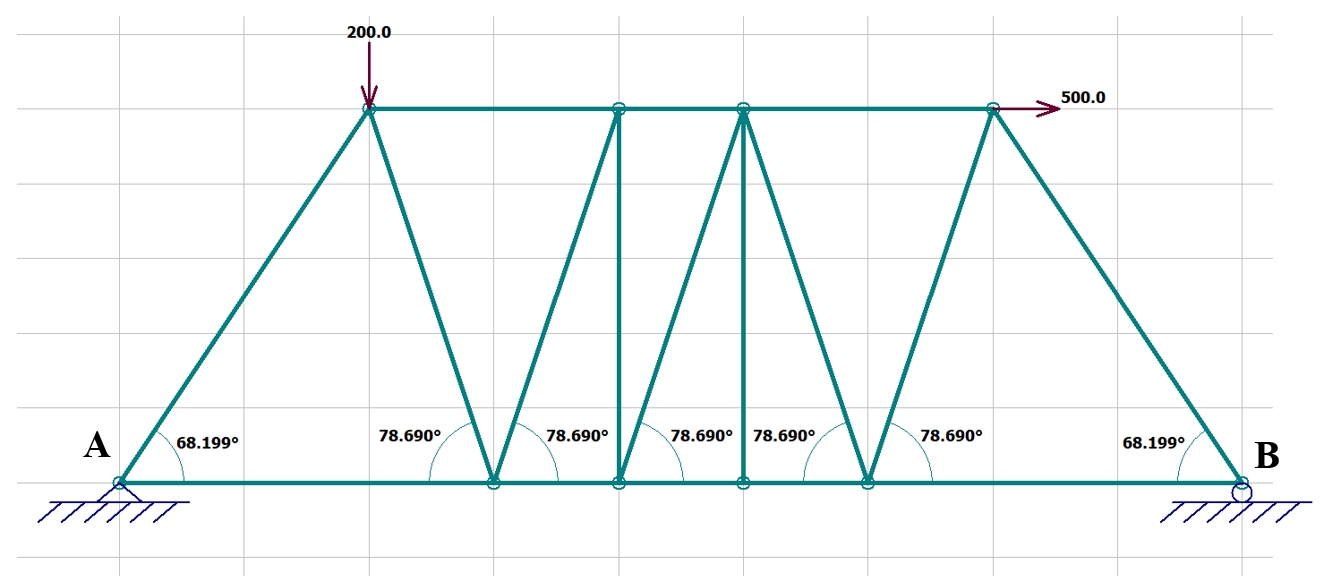

Given the truss above, which member(s) are in tension? Select all that apply.

Given the truss above, which member(s) are in compression? Select all that apply.

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

is directed

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Extra Credit / Challenge

Now that you have found the reaction forces for the above truss, Determine the force in member AB.

Indicate units in your answer and round final answers (if necessary) to 2 decimal places.
Attach a photo of your work to find the force in member AB. No Units.

Trusses - POE - Mr. Zwart

Trusses - POE - Mr. Zwart

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Extra Credit / ChallengeNow that you have found the reaction forces for the above truss, Determine the force in member AB. Indicate units in your answer and round final answers (if necessary) to 2 decimal places.Attach a photo of your work to find the force in member AB. No Units.

Given the truss above, which member(s) are in tension? Select all that apply.

Given the truss above, which member(s) are in compression? Select all that apply.

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

is directed

is directed

is directed

Upload a photo of your work for the above truss problem. Your work should clearly show the work for:

Extra Credit / ChallengeNow that you have found the reaction forces for the above truss, Determine the force in member AB. Indicate units in your answer and round final answers (if necessary) to 2 decimal places.Attach a photo of your work to find the force in member AB. No Units.

Extra Credit / Challenge

Now that you have found the reaction forces for the above truss, Determine the force in member AB.

Indicate units in your answer and round final answers (if necessary) to 2 decimal places.
Attach a photo of your work to find the force in member AB. No Units.

Extra Credit / Challenge

Now that you have found the reaction forces for the above truss, Determine the force in member AB.

Indicate units in your answer and round final answers (if necessary) to 2 decimal places.
Attach a photo of your work to find the force in member AB. No Units.
