5/7/2021- Tangents

Last updated over 4 years ago
17 questions
1

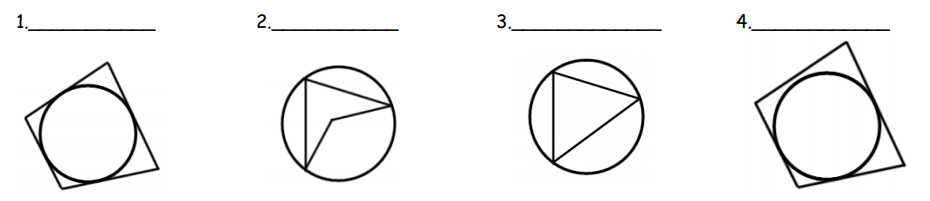

Which image is has an inscribed polygon?

1

Which image is the circumscribed circle?

1

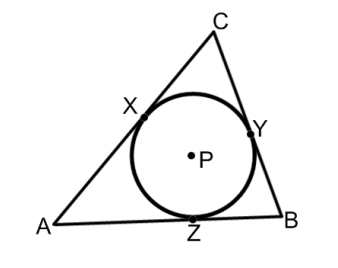

Triangle ABC is circumscribed about circle P. Points X, Y, and Z are the points of tangency.
XC=12, BC=21. What is BY?

1

Triangle ABC is circumscribed about circle P. Points X, Y, and Z are the points of tangency.
AX=8, AB= 24. What is BZ?

1

Line PQ is tangent to Circle O.
PQ=12, OP= 15. What is OQ?

1

Line PQ is tangent to Circle O.
OQ=12, OP=20. What is PQ?

1

Line PQ is tangent to Circle O.
PS=80. The diameter of the circle is 100. What is PQ?
Recall d=2r.

1

Find the perimeter of Triangle PQR.
PA=14, BQ=25, and CR=12.

1

Line BC is tangent to Circle A.
What is x?

1

Line BC is tangent to the Circle A.
What is x? Remember, x is part of segment AB.

1

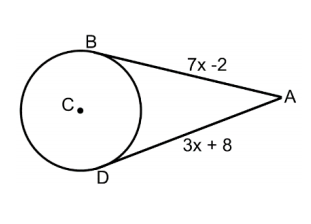

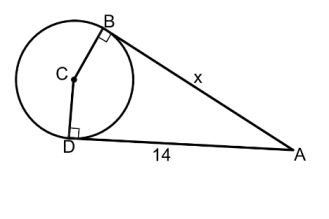

Line AB and Line AD are tangent to Circle C.
Find x.

1

Line AB and Line AD are tangent to Circle C.
Find x.

1

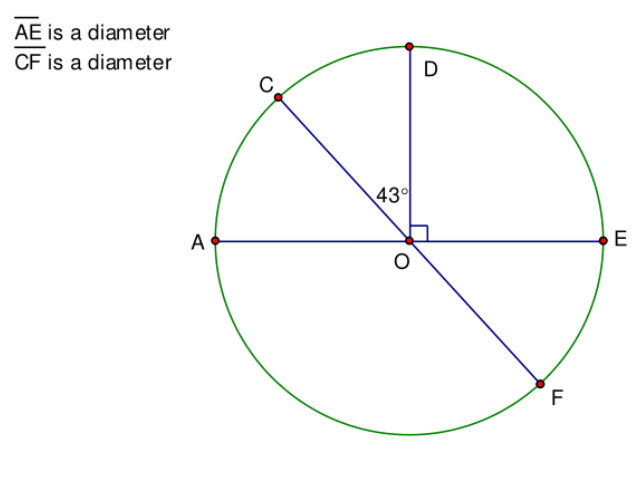

Find Arc CFD.

1

Find Angle DOF.

1

What is Angle NQP?

1

What is Arc BC?

1

What is x?
