Unit 5 Waves Review - Sanchez

By yenny t sanchez sarmiento
Last updated over 1 year ago
13 Questions
Respond to the questions and/or prompts below and do your best. Remember - don't leave anything blank! You may use the following on this test:
  • YOUR interactive notebook and/or paper notebook
  • blank scratch paper and pen or pencil
  • calculator
  • the mathematical models (equations) below

Match the definition below with the corresponding waves vocabulary term.

  • The distance measured from crest to crest or from trough to trough.
  • The speed and direction of the wave which is given by its frequency times its wavelength.
  • The number waves each second.
  • The distance from the crest or trough to the equilibrium position.
  • A sound wave is emitted and the distance is determined by the time delay between the sound emission and when the echo returns.
  • wave velocity
  • frequency
  • wavelength
  • amplitude
  • echolocation

In the "Show Your Work" section below, draw a diagram of a loud sound, soft sound, high-pitched sound and a low-pitched sound. Circle in purple the one with the highest frequency. Circle in red the one with the highest amplitude. (Ask if you're not sure how to pick colors and shapes in Formative - we can help you.)

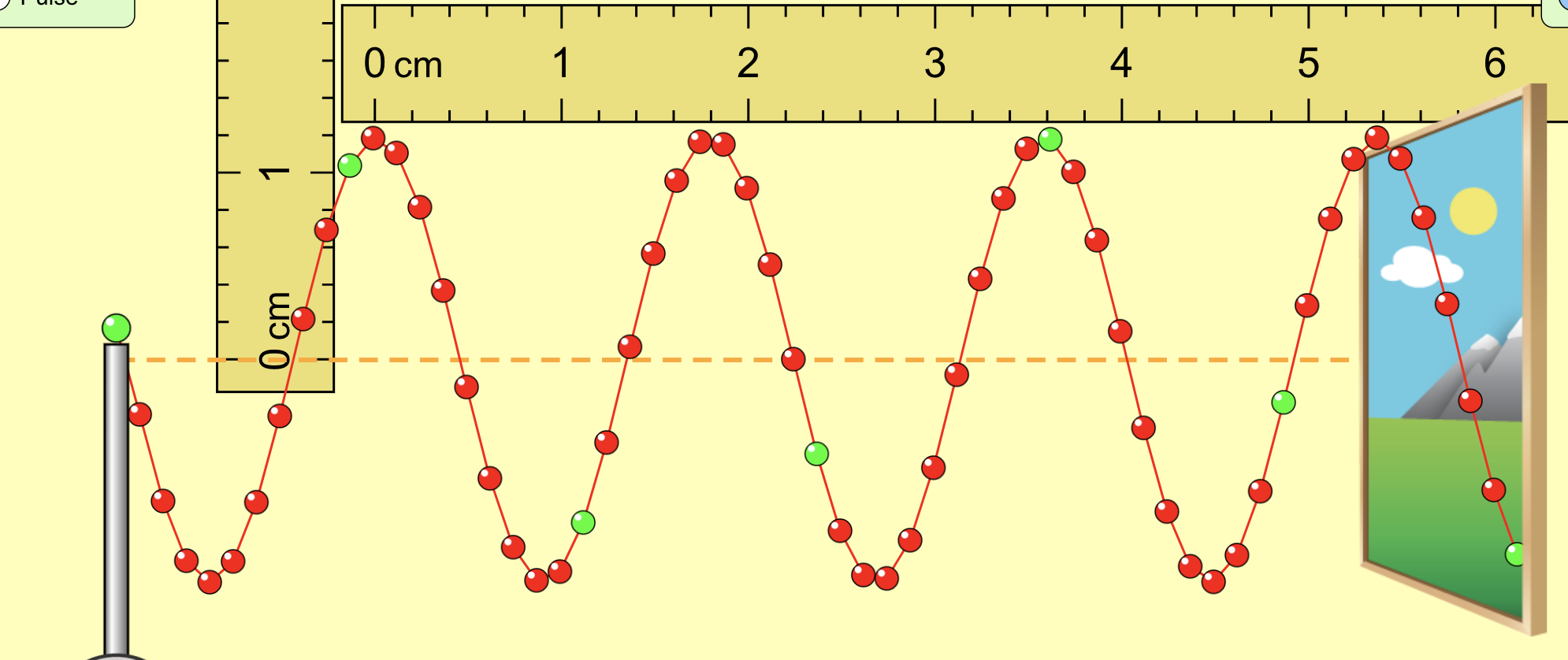

Measure the wavelength of the wave pictured below. The rulers have been set up for you. Enter the NUMBER ONLY in the space provided.

Measure the amplitude of the wave pictured below. The rulers have been set up for you. Enter the NUMBER ONLY in the space provided.

For the wave on a string simulation that we used in "Tinkering with Waves" and "Waves Lab", describe how you would measure the wave velocity.


A 680 Hz sound wave travels at 343 m/s in air. What is its wavelength? (Use the problem solving steps we learned in class and show your work below.)

An oceanic depth-sounding ship surveys the ocean bottom with ultrasonic sound that travels at 1430 m/s in sea water. They find a 20 s delay of the echo to the ocean floor and back. What is the depth? (Use the problem solving steps we learned in class and show your work below.)

If you increase amplitude, will the wavelength increase, decrease or stay the same?

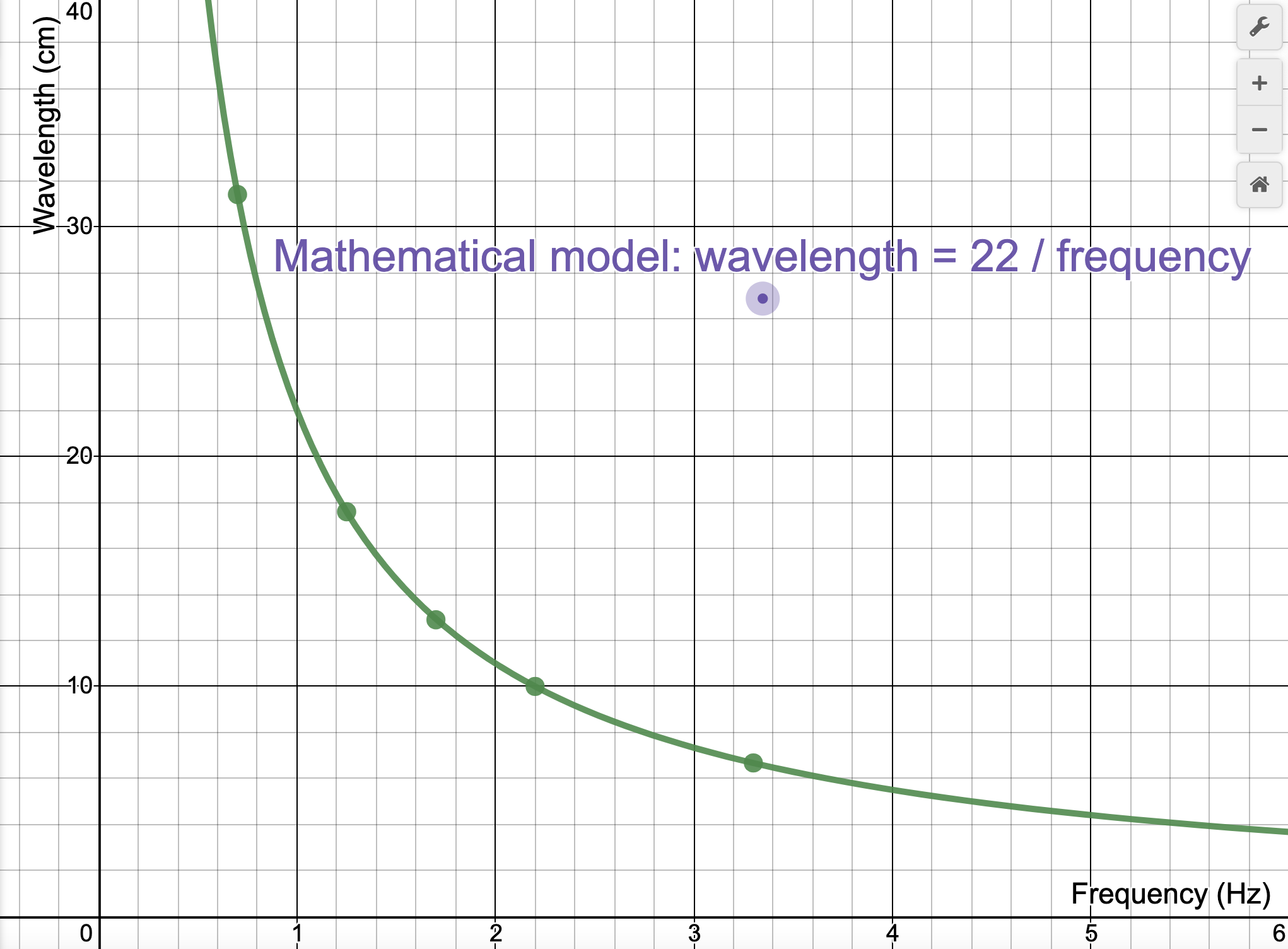

A graph about waves is shown below. Check all of the options that match the graph.

In this graph, which wave characteristic does the "22" represent?

A graph about waves is shown below. Check all of the options that match the graph.

What areas do you need to study?


Want credit for this assignment (regardless of how you did)? Check YES below.
