AP Diagnostic Exam Part 2

star
star
star
star
star
Last updated 12 months ago
40 questions
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Question 1
1.

Question 2
2.

Question 3
3.

Question 4
4.

Question 5
5.

Question 6
6.

Question 7
7.

Question 8
8.

Question 9
9.

Question 10
10.

Question 11
11.

Question 12
12.

Question 13
13.

Question 14
14.

Question 15
15.

Question 16
16.

Question 17
17.

Question 18
18.

Question 19
19.

Question 20
20.

Question 21
21.

Question 22
22.

Question 23
23.

Question 24
24.

Question 25
25.

Question 26
26.

Question 27
27.

Question 28
28.

Question 29
29.

Question 30
30.

Question 31
31.

Question 32
32.

Question 33
33.

Question 34
34.

Question 35
35.

Question 36
36.

Question 37
37.

Question 38
38.

Question 39
39.

Question 40
40.

Which of the following best describes the energy resource used most often for heating and cooking in less developed countries?
Cogeneration from fuel oil systems is primarily used because it has low up-front costs.
Biomass is the predominant fuel source because it is easily obtained locally.
Bituminous coal is primarily used because of its relative abundance and high moisture content.
Natural gas is the most prevalent fuel source because it is readily available and produces few air pollutants.
Which of the following correctly explains a positive climate feedback loop found in the Arctic?
Increased precipitation increases the size of high albedo snowpack in polar regions, which leads to increased habitat for Arctic organisms such as polar bears.
Increased global temperatures lead to decreased sea ice coverage and decreased albedo, which further increases global temperatures.
Increased evaporation and cloud formation decreases the amount of solar energy reaching the surface of Earth, which leads to cooler temperatures at the surface and decreased evaporation and cloud formation.
Increased melting of permafrost increases Earth’s ability to absorb methane gas, which decreases greenhouse warming and decreases the melting of permafrost.
Which of the following is the best method for preventing soil erosion in an agricultural area?
Slash-and-burn agriculture
Integrated pest management
Terrace farming
Monocrop farming

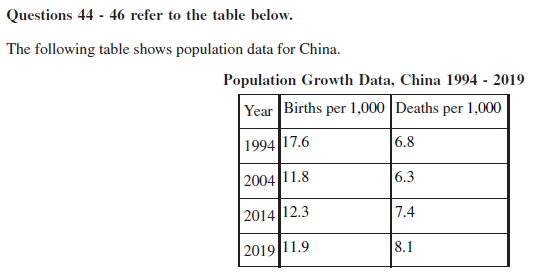

Using the data from the table, which of the following is the growth rate for China in 2019 ?
0.38%
0.49%
0.60%
0.68%
Which of the following was the doubling time for China’s population in 2014 if the growth rate was 0.49 percent?
1.4 years
34.3 years
142.9 years
3,430 years
Which of the following calculation methods would determine the percent change in the crude birth rate from 1994 to 2019 ?
(17.6-11.9) X 100
11.9/17.6 X 100
((17.6+11.9)/17.6) X100
((11.9-17.6)/17.6) X100
Earth currently rotates on an axis at an angle of 23.5 degrees. If that axis changed to 20 degrees, so that the axis was closer to vertical, which of the following would be expected to occur?
Earth would experience increased volcanic activity.
The amount of energy Earth receives from the Sun would increase.
Earth would experience a change in seasonal timing and length.
The number of days in a year would be reduced.
Which of the following accurately describes a benefit of concentrated animal feeding operations (CAFOs) ?
Concentrated animal feeding operations are efficient and relatively low-cost facilities that help keep consumer costs low.
When animals are kept in largeconcentrations in a small area, the water quality of local waterways is protected from excess runoff.
Concentrated animal feeding operation produce a large amount of manure, which is then often held in large manure lagoons.
The animals raised in concentrated animal feeding operations are usually grass-fed and therefore less susceptible to disease.
In addition to volatile organic compounds (VOCs), which of the following components must be present in the atmosphere to create photochemical smog?
NOx and UV light
NOx and particulates
UV light and CO2
Particulates and UV light

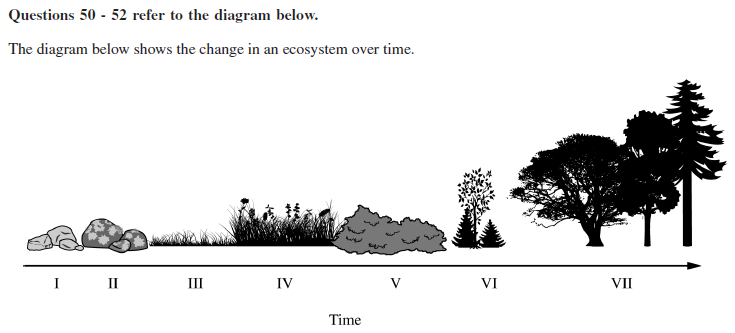

Which of the following best identifies and describes the process that is illustrated in the diagram above?
Primary succession, because the result is a mature forest with a variety of shade-intolerant shrubs and grasses
Secondary succession, because intermediate plant species like grasses and weeds are present
Primary succession, because the process in the diagram begins with bare rock.
Secondary succession, because the result is a mature forest with a variety of shade-tolerant trees
Based on the diagram above, in which stage are most species present considered pioneer species?
I
II
III
IV
Which of the following best describes the role of moss in the transition to stage III of the process?
It provides habitat for birds and mammals
It breaks down rock and adds organic nutrients to the soil.
It provides shade and reduces surface temperatures.
It serves as a soil seed bank in the leaf litter.

Questions 53 - 55 refer to the article below.

Era of ’Biological Annihilation’ Is Underway, Scientists Warn

…Thousands of animal species are in precipitous decline, a sign that an irreversible era of mass extinction is underway, new research finds.

…
Dr. Ceballos, a researcher at the Universidad Nacional Autónoma de México, emphasized that he and his co-authors, Paul R. Ehrlich and Rodolfo Dirzo, both professors at Stanford University,… are using scientific data to back up their assertions that significant population decline and possible mass extinction of species all over the world may be imminent, and that both have been underestimated by many other scientists.

The study’s authors looked at reductions in a species’ range— a result of factors like habitat degradation, pollution and climate change, among others— and extrapolated from that how many populations have been lost or are in decline … .

They found that about 30 percent of all land vertebrates… are experiencing declines and local population losses. In most parts of the world, mammal populations are losing 70 percent of their members because of habitat loss.…

Dr. Jonathan Losos, a biology professor at Harvard,… noted that giving precise estimates of wildlife populations was difficult, in part because scientists do not always agree on what defines a population… .
…

The authors of the paper suggest that previous estimates of global extinction rates have been too low, in part because scientists have been too focused on complete extinction of a species… .

Scientists estimate that 200 species have gone extinct in the past 100 years; the “normal” extinction rate over the past two million years has been that two species go extinct every 100 years because of evolutionary and other factors.
…

Dr. Ehrlich, who wrote “The Population Bomb,” a book that predicted the imminent collapse of humanity because of overpopulation, and Dr. Ceballos said that habitat destruction … and pollution were the primary culprits, but that climate change exacerbates both problems. Accelerating deforestation and rising carbon pollution are likely to make climate change worse, which could have disastrous consequences for the ability of many species to survive on earth.

Dr. Ceballos struck a slightly more hopeful tone, adding that some species have been able to rebound when some of these pressures are taken away. …

Which of the following statements best identifies the author’s claim about modern species?
Ranges of most species are expanding toward the poles because of climate change.
Populations of plants are increasing because of excess CO2 in the atmosphere.
While most organisms are declining in population size, most mammal populations are actually increasing.
Reduction in range size is an indicator that populations of many species are declining.

Questions 53 - 55 refer to the article below.

Era of ’Biological Annihilation’ Is Underway, Scientists Warn

…Thousands of animal species are in precipitous decline, a sign that an irreversible era of mass extinction is underway, new research finds.

…
Dr. Ceballos, a researcher at the Universidad Nacional Autónoma de México, emphasized that he and his co-authors, Paul R. Ehrlich and Rodolfo Dirzo, both professors at Stanford University,… are using scientific data to back up their assertions that significant population decline and possible mass extinction of species all over the world may be imminent, and that both have been underestimated by many other scientists.

The study’s authors looked at reductions in a species’ range— a result of factors like habitat degradation, pollution and climate change, among others— and extrapolated from that how many populations have been lost or are in decline … .

They found that about 30 percent of all land vertebrates… are experiencing declines and local population losses. In most parts of the world, mammal populations are losing 70 percent of their members because of habitat loss.…

Dr. Jonathan Losos, a biology professor at Harvard,… noted that giving precise estimates of wildlife populations was difficult, in part because scientists do not always agree on what defines a population… .
…

The authors of the paper suggest that previous estimates of global extinction rates have been too low, in part because scientists have been too focused on complete extinction of a species… .

Scientists estimate that 200 species have gone extinct in the past 100 years; the “normal” extinction rate over the past two million years has been that two species go extinct every 100 years because of evolutionary and other factors.
…

Dr. Ehrlich, who wrote “The Population Bomb,” a book that predicted the imminent collapse of humanity because of overpopulation, and Dr. Ceballos said that habitat destruction … and pollution were the primary culprits, but that climate change exacerbates both problems. Accelerating deforestation and rising carbon pollution are likely to make climate change worse, which could have disastrous consequences for the ability of many species to survive on earth.

Dr. Ceballos struck a slightly more hopeful tone, adding that some species have been able to rebound when some of these pressures are taken away. …

Based on the passage, which of the following describes the author’s perspective on why historical extinction rates were lower than present-day rates?
Previous research focused only on complete extinctions and did not collect data on imminent extinctions.
Scientists believe that humans are responsible for the first major mass extinction.
Habitat destruction occurred only in regions with low biodiversity until the last few decades.
Scientists disagree on how to define Ëśextinction.Ëś

Questions 53 - 55 refer to the article below.

Era of ’Biological Annihilation’ Is Underway, Scientists Warn

…Thousands of animal species are in precipitous decline, a sign that an irreversible era of mass extinction is underway, new research finds.

…
Dr. Ceballos, a researcher at the Universidad Nacional Autónoma de México, emphasized that he and his co-authors, Paul R. Ehrlich and Rodolfo Dirzo, both professors at Stanford University,… are using scientific data to back up their assertions that significant population decline and possible mass extinction of species all over the world may be imminent, and that both have been underestimated by many other scientists.

The study’s authors looked at reductions in a species’ range— a result of factors like habitat degradation, pollution and climate change, among others— and extrapolated from that how many populations have been lost or are in decline … .

They found that about 30 percent of all land vertebrates… are experiencing declines and local population losses. In most parts of the world, mammal populations are losing 70 percent of their members because of habitat loss.…

Dr. Jonathan Losos, a biology professor at Harvard,… noted that giving precise estimates of wildlife populations was difficult, in part because scientists do not always agree on what defines a population… .
…

The authors of the paper suggest that previous estimates of global extinction rates have been too low, in part because scientists have been too focused on complete extinction of a species… .

Scientists estimate that 200 species have gone extinct in the past 100 years; the “normal” extinction rate over the past two million years has been that two species go extinct every 100 years because of evolutionary and other factors.
…

Dr. Ehrlich, who wrote “The Population Bomb,” a book that predicted the imminent collapse of humanity because of overpopulation, and Dr. Ceballos said that habitat destruction … and pollution were the primary culprits, but that climate change exacerbates both problems. Accelerating deforestation and rising carbon pollution are likely to make climate change worse, which could have disastrous consequences for the ability of many species to survive on earth.

Dr. Ceballos struck a slightly more hopeful tone, adding that some species have been able to rebound when some of these pressures are taken away. …

Which of the following pieces of evidence presented in the article suggests that extinction rates may continue to increase?
Populations are unable to rebound even when environmental stressors are removed.
Species ranges are expanding as pollution increases in less-developed countries.
Climate change will exacerbate the primary causes of population decline.
Mammal populations are declining faster than other vertebrate groups.
Which of the following would most likely neutralize the effect of acid rain on bodies of water, based on the composition of soils and bedrock in the region?
A forest underlain by limestone
An area downwind of a coal-burning
electrical plant
An open plain underlain by granite
A valley that is frequently shrouded in fog
Which of the following best describes a density-independent factor that controls population size?
Occurrences of droughts and flooding
Infectious disease transmission
Competition for resources like food and
water
Reduced availability of habitat
Scientists want to investigate whether the increased concentration of carbon dioxide in the
ocean affects fish survival. Scientists suspect immature fish larvae may be most affected by
increased carbon dioxide concentrations. Which of the following best identifies a testable hypothesis for the investigation?
There will be a greater percentage of fish larvae that survive than mature fish that survive.
The decreasing pH of the ocean water will decrease the survivorship of fish.
The increasing carbon dioxide concentrations will increase the density of adult fish skeletons.
The decreasing temperature of the ocean water will increase the survivorship of fish larvae.

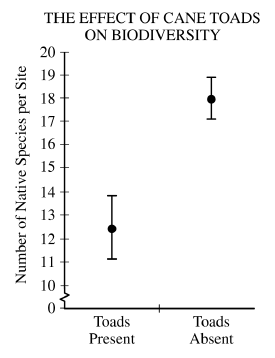

Cane toads are an invasive species that were introduced to Australian ecosystems. Researchers studying cane toads hypothesize that cane toads are negatively affecting native species. The researchers observed different locations with and without cane toads and collected the data that are presented in the
following graph.

Which of the following best interprets the results in the graph in relation to the given hypothesis?
The results do not support the researchers’ hypothesis because there is less biodiversity at sites with cane toads.
The results support the researchers’ hypothesis because there is a greater biodiversity at sites without cane toads.
The results do not support the researchers’ hypothesis because there is less biodiversity at sites without cane toads.
The results support the researchers’ hypothesis because there is a greater biodiversity at sites with cane toads.
The table below shows the oral LD50 values for various household substances.

Based on the LD50 values, which of the following best describes the toxicity level of the household substances shown in the table?
Aspirin is less toxic than vinegar.
Table salt is the most toxic substance in the table.
Antifreeze is more toxic than aspirin.
Table salt is more toxic than vinegar.
Silver carp were introduced in the southeastern United States in the 1970s from their native habitat of China to control algal blooms that were occurring at aquaculture facilities and sewage lagoons. Silver carp escaped from captivity shortly after their introduction and are currently found as far north as North Dakota and Minnesota. Which of the following describes an unintended, negative consequence of the
introduction of silver carp into the United States?
Silver carp decreased the amount of algae and aquatic vegetation in ponds and lagoons in the southern United States.
Silver carp populations in the United States are likely to become endangered as a result of limited prey resources in the new environment.
Silver carp became an invasive species in the United States because their numbers were not being controlled by natural predators.
Silver carp became a keystone species and created more biodiversity in lakes and rivers in the Southeastern United States.
A farm is experiencing extensive crop loss due to high rains causing overly saturated soils. Which of the following approaches would best help the farmer alleviate the problem?
Amending the soil with sand to increase the permeability of the soil
Using contour plowing to decrease soil erosion
Amending the soil with clay to increase the water-holding capacity of the soil
Fertilizing the area with manure to eliminate the need for inorganic chemical fertilizers
Which of the following best describes a potential unintended negative consequence of implementing measures to control acid deposition?
A reduction in sulfur for crops as a result of less acidic rainfall, leading to an increased need for sulfur supplements
A reduction in environmental lead, leading to decreased negative health effects in humans and wildlife
A reduction in mortality rates in freshwater aquatic organisms from an increase in pH of the water
A reduction in acid mine drainage, resulting from a reduced need for nuclear fuel and uranium mining
Scientists are interested in measuring the effect of pollution on the water quality of a stream. They will use observations of various bottom-dwelling insects, or macroinvertebrates, collected in the stream as indicators of the physical, chemical, and biological conditions within the stream. Which of the following best describes why macroinvertebrate sampling can be used to assess the overall health of a stream?
Macroinvertebrates live in an aquatic ecosystem for a long enough time to show the chronic effects of pollutants, and many tend to remain in the same area throughout their life span.
Macroinvertebrates are top predators, so they are often used in determining whether toxins will bioaccumulate or biomagnify in an aquatic environment.
Macroinvertebrates migrate long distances to feed or reproduce, and they have a low tolerance to pollutants.
Macroinvertebrates can be collected to evaluate the effect of various test parameters such as dissolved oxygen, nitrites, and pH at the time that the sample was taken.

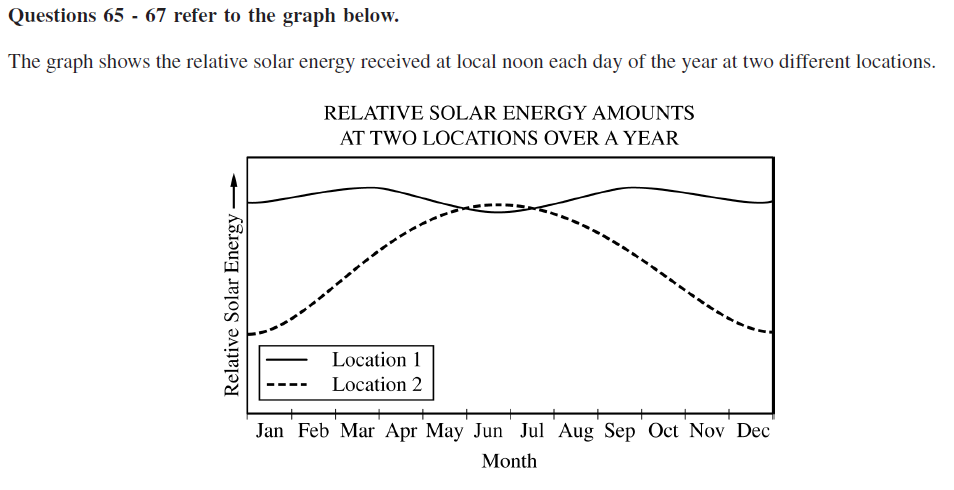

Based on the graph, which of the following can be concluded about the latitudes of the two locations?
Location 1 is in the Northern Hemisphere, and Location 2 is in the Southern Hemisphere.
Both locations are at the same latitude.
Location 1 is close to the equator, and Location 2 is in the Northern Hemisphere.
Location 1 is in the Southern Hemisphere, and Location 2 is close to the equator.
Assuming all other variables are constant, which of the following is the most likely conclusion about the greatest potential for gross primary productivity that can be supported by data in the graph?
Gross primary productivity is the same for both locations all year.
Gross primary productivity in Location 2 is greater than that in Location 1 in September.
Gross primary productivity in Location 1 is greater than that in Location 2 in March.
Gross primary productivity in Location 2 is greater than that in Location 1 in December.
Location 1 is most likely located in which of the following terrestrial biomes?
Temperate grassland
Tropical rain forest
Tundra
Taiga

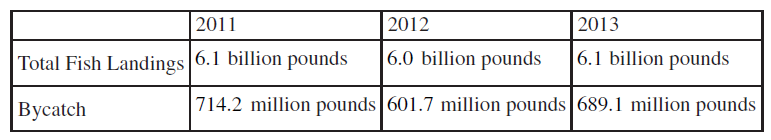

The table below shows fish harvest data from United States commercial fisheries in 2011, 2012, and 2013.

Fish landings are defined as the total catch of marine fish that are brought into ports for sale. Bycatch refers to the unwanted fish and other marine organisms that are caught during commercial fishing operations, but are not harvested or sold. Which of the following methods would you use to calculate the percent of the total catch of all fish in 2012 that was bycatch?
6.017X108/(6X109+6.017X108) X 100
6X109/(6X109 + 6.017X108)
(6.109/6.017X108) X 100
6.017X108/(6X109 + 6.017X108)
Integrated pest management (IPM) uses a variety of techniques to reduce pest populations
while reducing the economic damage caused by pests. Which of the following techniques is a
mechanical IPM method for reducing pests?
The use of screens or traps to prevent pests from entering the crop area
The use of a predator or parasites to keep the population size of pest species low
The use of monocultures to keep the population size of pest species low
The use of pesticides sprayed on fields to kill pests and keep population sizes low
Which of the following best describes one way the Clean Air Act helped reduce air pollution?
Proposed incentives for countries to reduce carbon emissions
Created a fund to aid developing countries in reducing ozone-depleting emissions
Introduced regulatory measures to control the amount of lead in fuels
Implemented a program to manage hazardous and nonhazardous wastes
Which of the following best explains why the lower portion of the troposphere is warmer than the upper portion?
The surface of Earth absorbs sunlight, heating the lower portion of the troposphere more than the upper part.
The air in the lower portion of the troposphere is less dense than the air in the upper portion, leading to a higher temperature in the lower portion.
The lower portion of the troposphere is separated by the ozone layer from the upper portion, so the lower portion absorbs more sunlight, increasing the temperature.
The troposphere is the highest layer of the atmosphere, so the lower portion is warmed more than the upper part by rising air.

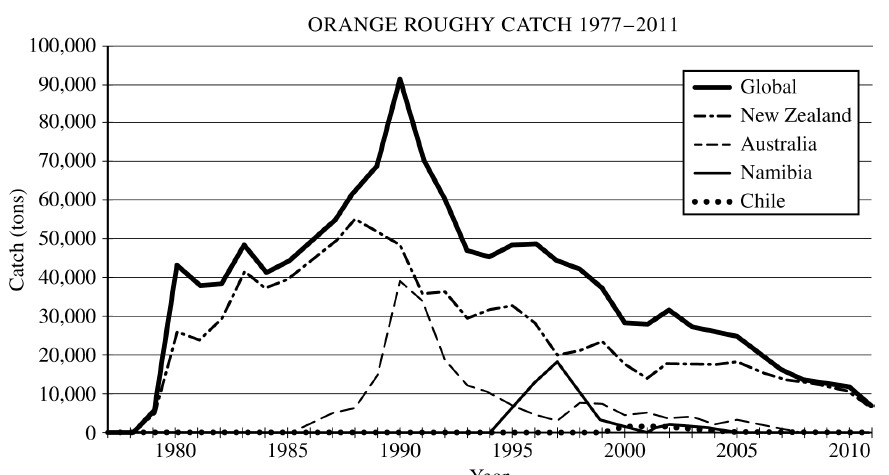

The graph shows the worldwide catch of orange roughy, a type of wild caught fish, in tons, from 1977 to 2011.

Based on the data in the graph, which of the following fishing practice solutions would best promote the
sustainability of the orange roughy population?
Protection of the orange roughy predator through legislation
A decrease in the minimum size limit of fish that can be caught
Establishment of quotas on the number of orange roughy caught
An increase in subsidies to fishermen that catch orange roughy
A local citizen science group is monitoring the water quality of a nearby lake. They gather
water samples once a week onWednesday between the hours of 7 A.M. and 9 A.M. from the
same location. One day in August they were unable to sample within that time frame and
collected the sample at 3 P.M.

How might this modification to the sampling procedure affect the results?
Water sampled later in the day may have decreased macroinvertebrate respiration and therefore lower dissolved oxygen levels.
Water sampled later in the day may have increased macroinvertebrate respiration and therefore higher dissolved oxygen levels.
Water sampled later in the day may be warmer and therefore have higher dissolved oxygen levels.
Water sampled later in the day may be warmer and therefore have lower dissolved oxygen levels.
Which of the following would be the best way to
mitigate deforestation?
Stimulate intensive agricultural production of native vegetation close to villages.
Replant and protect trees in areas that have been previously cleared.
Grow more diverse timber products to increase economic value in an area.
Employ clear cutting harvest techniques that are more sustainable.

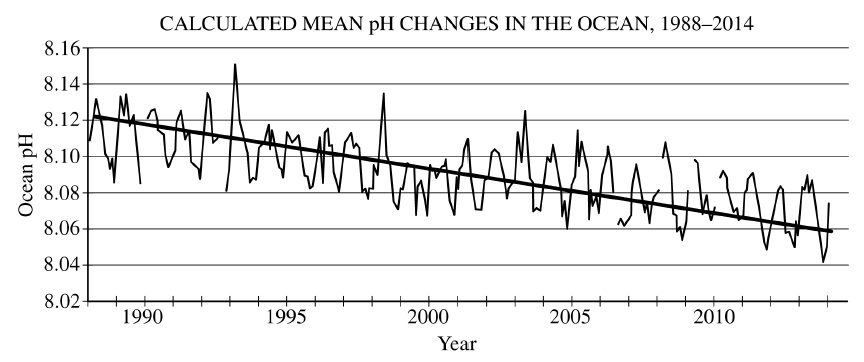

Which of the following best explains an anthropogenic cause of the trend illustrated on the graph?
Increased atmospheric CO2 concentrations from burning of fossil fuels and vehicle emissions are
contributing to ocean acidification.
Increased atmospheric NOx concentrations from fertilizers and livestock operations are contributing to a
decrease in acid deposition in the ocean.
Increased atmospheric NOx concentrations from decomposition in landfills is contributing to
eutrophication.
Increased atmospheric CO2 concentrations from volcanic eruptions and cellular respiration are contributing to coral bleaching.
Industrial scrubbers and electrostatic precipitators collect enormous amounts of particulate matter (coal ash) at coal-burning power plants. Which of the following best describes an environmental disadvantage of using industrial scrubbers and electrostatic precipitators for pollution abatement?
Industrial scrubbers and electrostatic precipitators cannot remove fine particles like dust and smoke from the waste, so a secondary measure must be used.
Industrial scrubbers and electrostatic precipitators are very costly to install and increase the cost of operating coal-burning power plants, leading to increased costs for consumers.
Coal ash is highly flammable, and it is very hazardous to ship the materials to hazardous waste landfills.
Coal ash contains toxic levels of several different pollutants, so when it is collected and stored long-term in coal ash ponds, there is increased risk of exposure to toxic metals.
A sanitary landfill with a surface area of 6000 m2 receives a yearly rainfall amount of 300 mm. About 20 percent of this precipitation is runoff and does not infiltrate the surface. A leachate collection system, which is installed underneath the landfill, is 90 percent effective at collecting and treating any water that infiltrates the surface of the landfill. Assuming consistent yearly rainfall amounts, what is the volume of leachate, in m3, that the landfill will be able to treat per year?
1,800 m3
1,296 m3
360 m3
324 m3

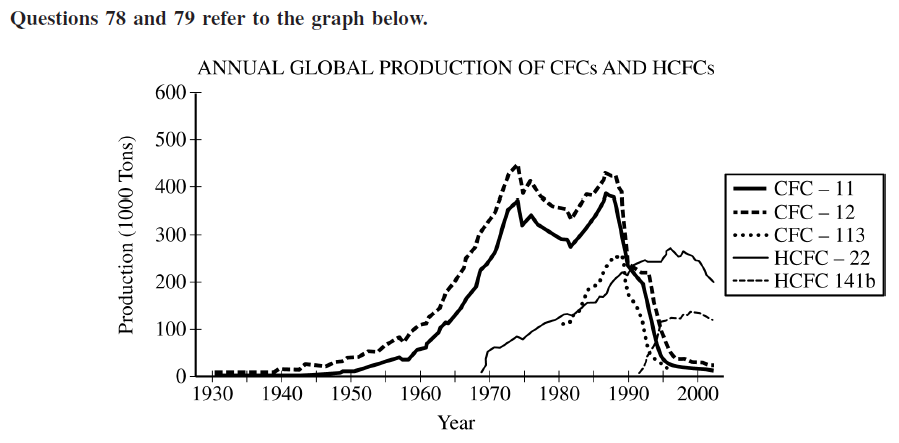

In 1978, the United States banned the use of CFCs in aerosols. Based on the data in the
graph, which of the following best explains the effect of this ban as a solution to decrease global
CFC production?
The ban on CFCs in aerosols led to an increase in CFC-113 production for use in refrigerants and air conditioners in the United States, which led to a 10% overall increase in global CFC production
between 1970 and 1980.
The ban on CFCs led to a decrease of CFC-11 and CFC-12 production by more than 15% between 1978 and 1980, which supports the ban as an effective solution to reduce global CFC production.
The ban on CFCs in aerosols in the United States was not effective on a global scale because it led to an increase in reports of skin cancer and cataracts in patients in the Southern Hemisphere from 1970 to 2000.
The ban on CFCs also led to a decrease in HCFC production beginning in 1980, reducing the reliance on chlorinated chemicals used in industrial processes and greatly reducing stratospheric ozone
depletion.
Which of the following statements best uses the data to support the claim that the Montreal Protocol was an effective solution for a global problem?
The Montreal Protocol was passed in 1970 to increase the production of HCFCs, which led to decreased reliance on CFCs. Based on the graph, HCFC-22 production increased steadily from 1980 to 1990 and HCFC-141b increased from 1990 to 2000.
The Montreal Protocol monitored the production and sale of CFCs and HCFCs in the late 1990s to decrease tropospheric ozone pollution and photochemical smog. Based on the graph, CFCs and
HCFCs leveled off at 100,000 tons produced in 2000.
The Montreal Protocol led to a dramatic reduction in CFC production globally after 1987, which greatly reduced the concentration of chlorinated hydrocarbons present in the stratosphere and decreased the breakdown of stratospheric ozone. Based on the graph, the annual production of CFCs decreased
significantly in the late 1980s to almost 0 tons by 2000.
The Montreal Protocol reduced stratospheric ozone depletion by increasing the reliance on CFCs in
industrial processes. Based on the graph, the increase in global CFC production from 1960 to 1970 demonstrates the success of the protocol by substituting ozone-depleting substances with CFCs.
Bats use echolocation to find prey by emitting high-pitched bursts of sound and analyzing the reflection. Scientists studying a population of bats in a forest observed that their population size had declined in the years following the completion of a nearby highway. Based on the information above, which of the
following best explains how noise pollution from the highway has affected the size of the bat population?
The highway noise is interfering with bats’ echolocation, preventing them from successfully locating and catching prey as they fly.
The highway noise is decreasing the bats’ echolocation, allowing them to catch more prey each night.
The highway noise is producing sound waves that disrupt air flow, preventing the bats from flying at night.
The highway noise is attracting more bats to the forest, causing an increase in intraspecies competition.
