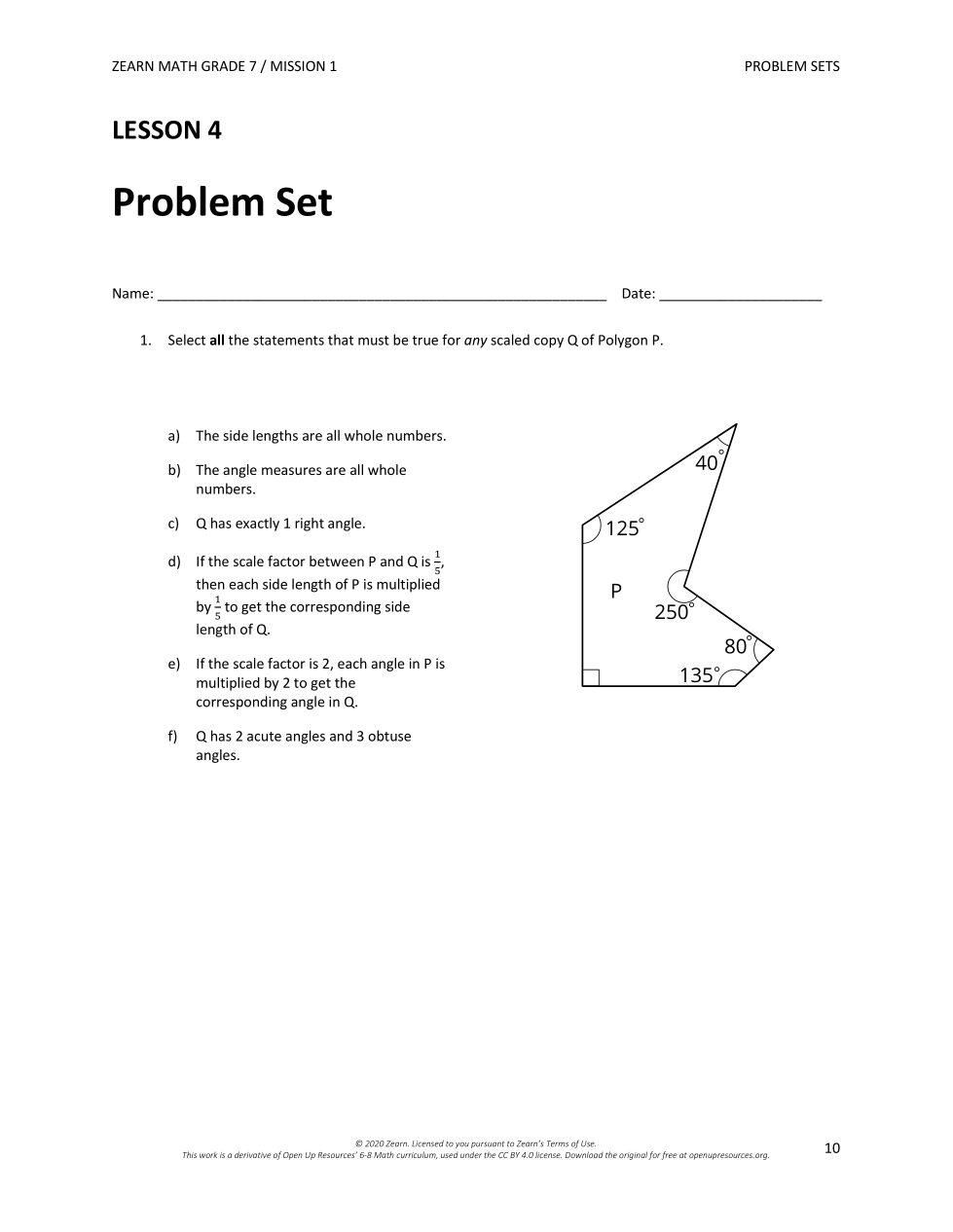

Select ALL the statements that must be true for any scaled copy Q of Polygon P.
Select ALL the statements that must be true for any scaled copy Q of Polygon P.
1

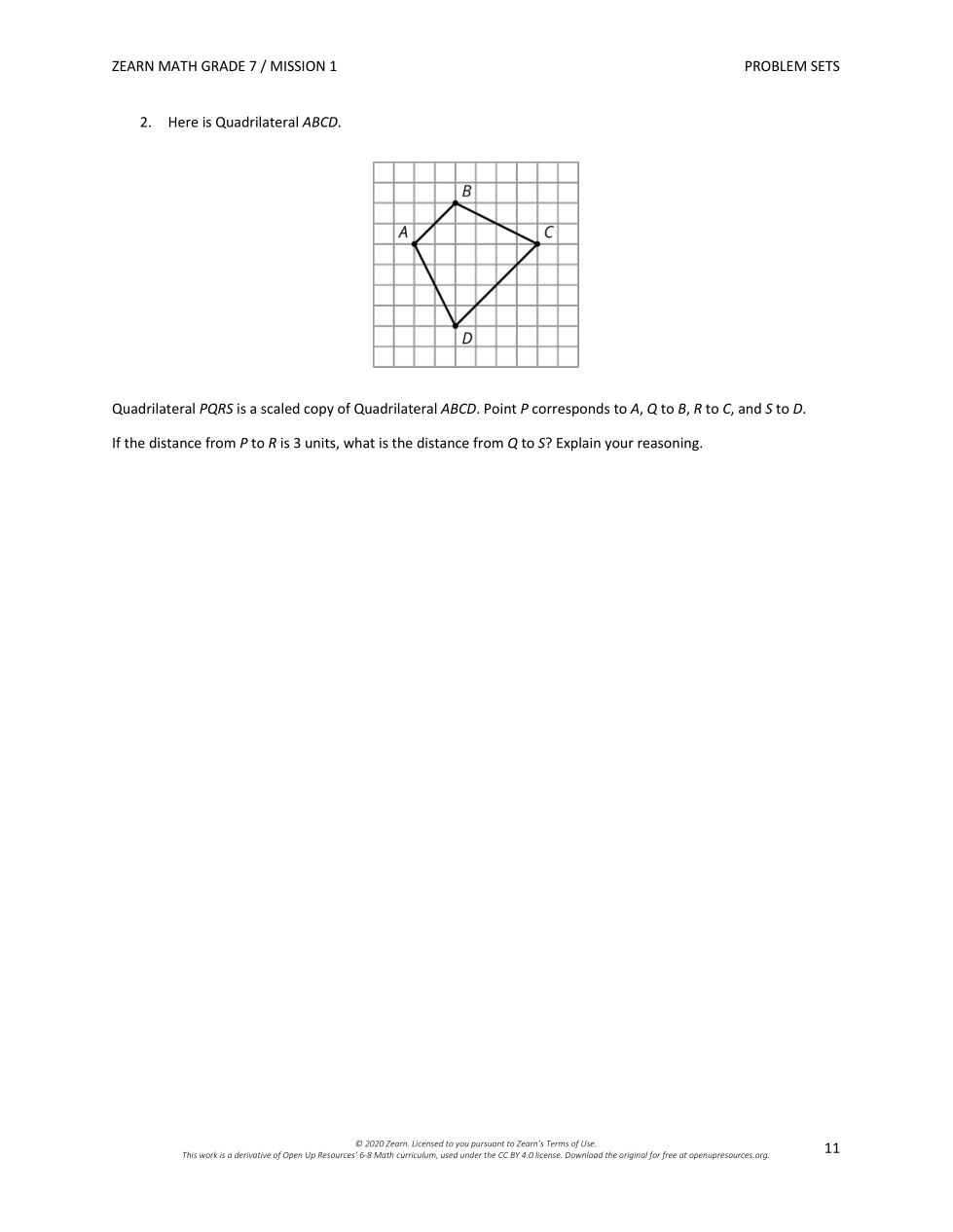

Quadrilateral PQRS is a scaled copy of Quadrilateral ABCD. Point P corresponds to A, Q to B, R to C, and S to D.
If the distance from P to R is 3 units, what is the distance from Q to S? Explain or show your reasoning in the space provided.
Quadrilateral PQRS is a scaled copy of Quadrilateral ABCD. Point P corresponds to A, Q to B, R to C, and S to D.
If the distance from P to R is 3 units, what is the distance from Q to S? Explain or show your reasoning in the space provided.
1

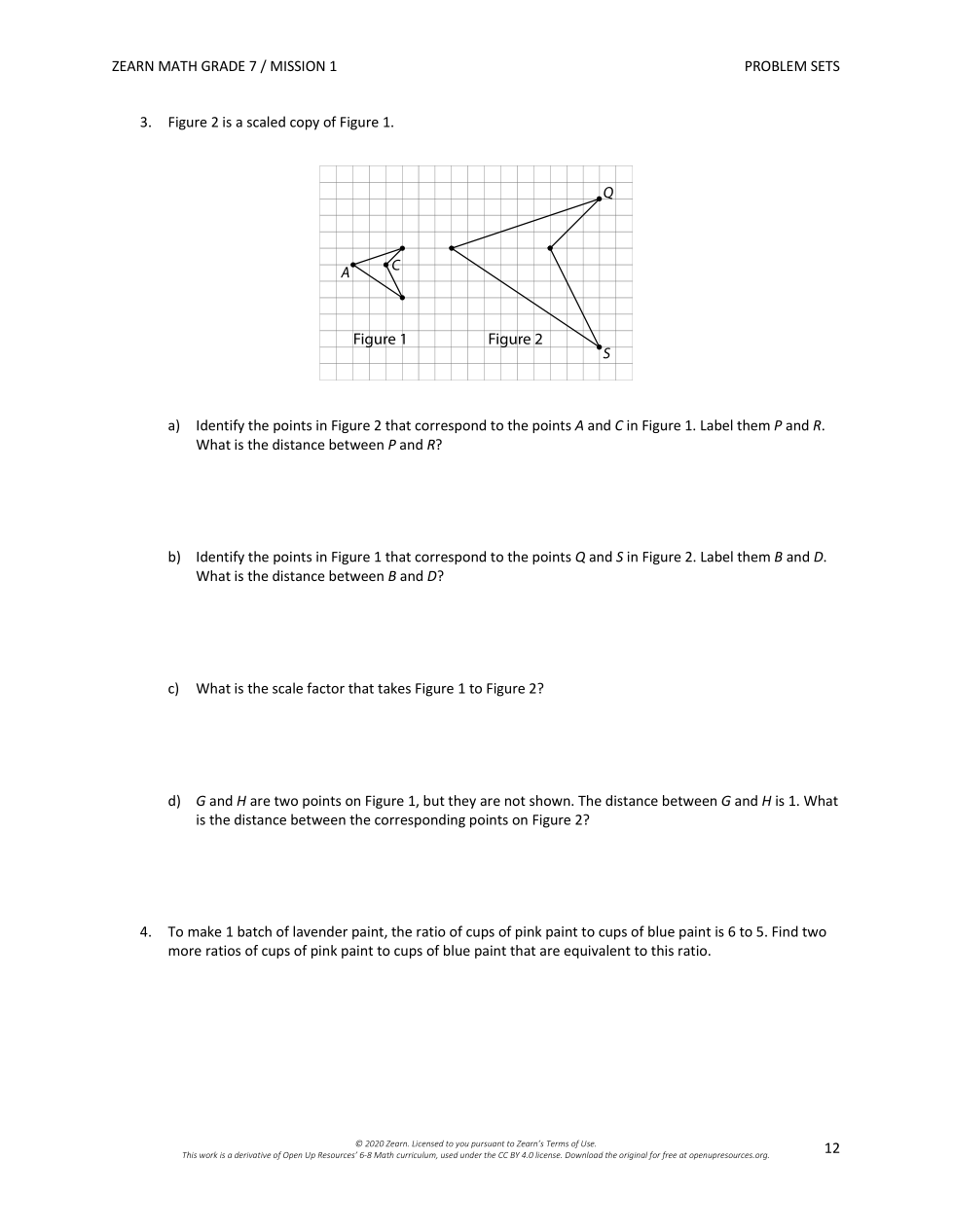

3a. Identify the points in Figure 2 that correspond to the points A and C in Figure 1. Label them P and R.
What is the distance between P and R?
3a. Identify the points in Figure 2 that correspond to the points A and C in Figure 1. Label them P and R.
What is the distance between P and R?
1
3b. Identify the points in Figure 1 that correspond to the points Q and S in Figure 2. Label them B and D.
What is the distance between B and D?
3b. Identify the points in Figure 1 that correspond to the points Q and S in Figure 2. Label them B and D.
What is the distance between B and D?
1
What is the scale factor that takes Figure 1 to Figure 2?
What is the scale factor that takes Figure 1 to Figure 2?
1
3d. G and H are two points on Figure 1, but they are not shown. The distance between G and H is 1. What is the distance between the corresponding points on Figure 2?
3d. G and H are two points on Figure 1, but they are not shown. The distance between G and H is 1. What is the distance between the corresponding points on Figure 2?
1
4. To make 1 batch of lavendar paint, the ratio of cups of pink paint to cups of blue paint is 6 to 5. Find TWO more ratios of cups of pink paint to cups of blue paint that are equivalent to this ratio.
4. To make 1 batch of lavendar paint, the ratio of cups of pink paint to cups of blue paint is 6 to 5. Find TWO more ratios of cups of pink paint to cups of blue paint that are equivalent to this ratio.
1

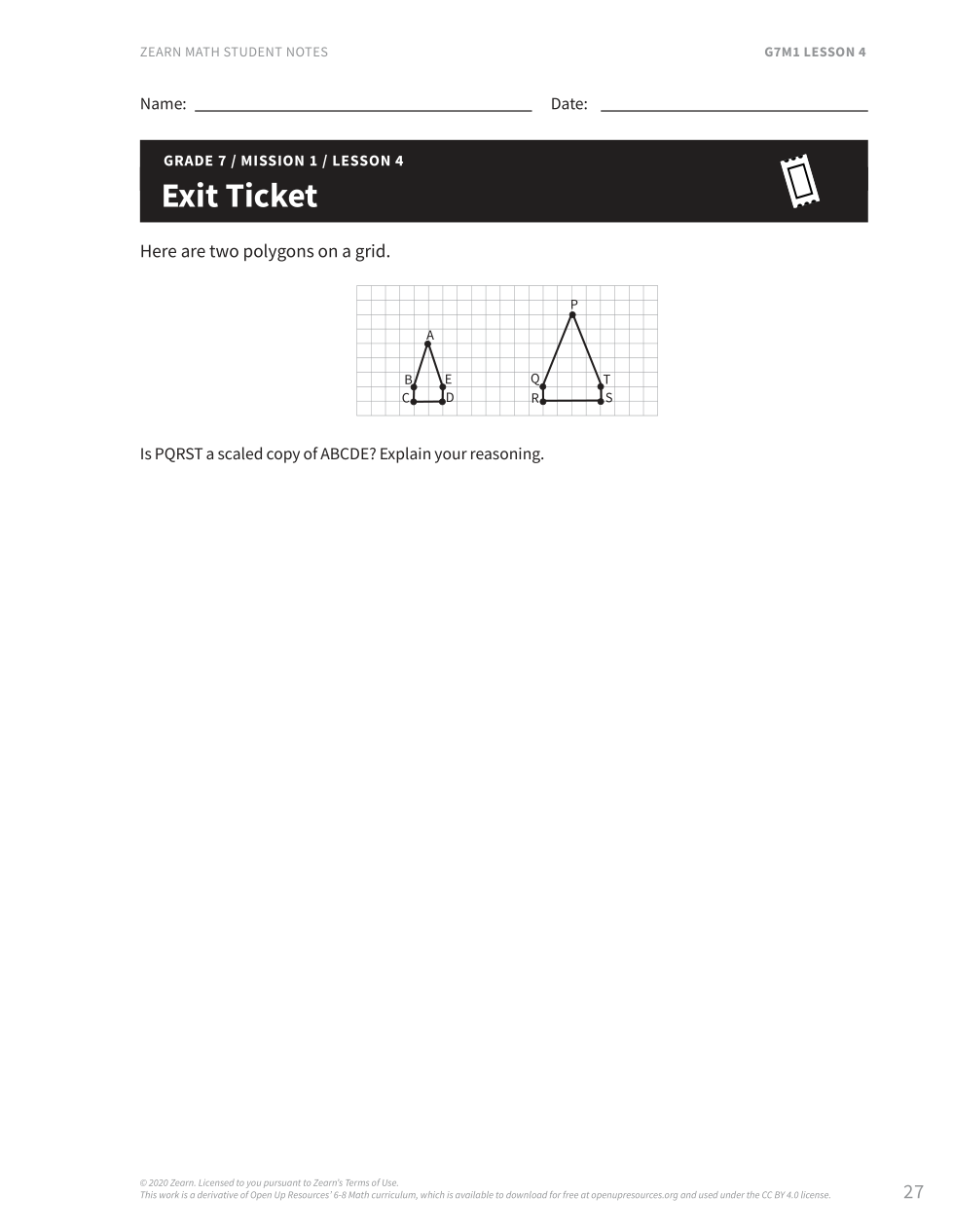

Exit TicketIs PQRST a scaled copy of ABCDE?
Explain or show your reasoning in the space provided.
Exit Ticket
Is PQRST a scaled copy of ABCDE?
Explain or show your reasoning in the space provided.
