Question: How do height and initial velocity affect the range and time of a projectile?

2

Create a hypothesis for this experiment by writing a testable answer to the above question in an if/then format.

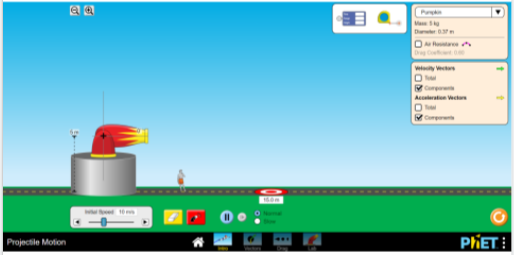

Use this Simulation and set the settings like the example below:

Change the Height and Initial Speed to match the data table below and use the Blue Measuring tool (Right corner) to take measurements.

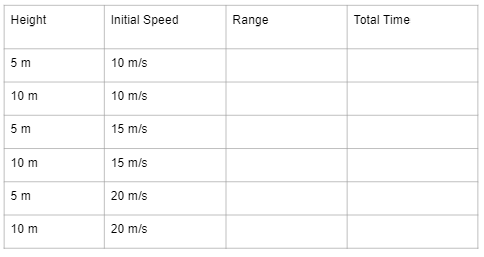

Data Table
Clear your path after each launch to keep the screen clean.

10

2

1

2

How does this compare to yesterday's lab (other than one is vertical and one is horizontal)

1

If you were given the range and the time it took to fall, how would you find the initial velocity?

Application

Just like Freefall, this still uses the basic kinematics formulas. The only tricky part is you may need to mix and match to find certain variables.

1

Question: How do height and initial velocity affect the range and time of a projectile?

20

Write a mini CER (8-15 sentences) for horizontal projectiles. (No need for procedure or sources of error)

Question: How do height and initial velocity affect the range and time of a projectile?

Create a hypothesis for this experiment by writing a testable answer to the above question in an if/then format.

Use this Simulation and set the settings like the example below:

Change the Height and Initial Speed to match the data table below and use the Blue Measuring tool (Right corner) to take measurements.

Data Table
Clear your path after each launch to keep the screen clean.

10

Fill in the Data Table.

2

What happens to the Range as Height increases? Why?

2

What happens to the Range as Initial Speed increases? Why?

2

What happens to range as mass increases? Why?

Launch one more time and watch the Velocity Vectors (components). What happens to the Horizontal Velocity Vector (Green arrow) throughout the launch?

Increases

Decreases

Stays the same

Launch on more time and watch the vectors. What happens to the Acceleration Vector (Yellow arrow) throughout the launch?

Increases

Decreases

Stays the same

Is there any acceleration in the x direction?

Yes

No

How does gravity affect the projectile?

It causes the projectile to accelerate forward.

It causes the projectile to accelerate downward.

It causes the projectile to accelerate upward.

It causes the projectile to accelerate backward.

What would happen if it were fired on a planet without gravity?

The projectile would continue forward for a while then start to fall down.

The projectile would rise upward immediately.

The projectile would continue forward until acted on by an unbalanced force.

The projectile would fall downward immediately.

How does this compare to yesterday's lab (other than one is vertical and one is horizontal)

If you were given the range and the time it took to fall, how would you find the initial velocity?

Application

Just like Freefall, this still uses the basic kinematics formulas. The only tricky part is you may need to mix and match to find certain variables.

1

What is the initial velocity of a projectile that has a range (dx) of 2.5 m and landed in 2.6 s?

1

What is the height (dy) this projectile was dropped from?

1

How long did it take for a projectile dropped from 5 m to land?

1

If the initial velocity was 1.8 m/s, what is the range of the projectile? (Use your time from #15)

Question: How do height and initial velocity affect the range and time of a projectile?

20

Write a mini CER (8-15 sentences) for horizontal projectiles. (No need for procedure or sources of error)

Fill in the Data Table.

What happens to the Range as Height increases? Why?

What happens to the Range as Initial Speed increases? Why?

What happens to range as mass increases? Why?

Launch one more time and watch the Velocity Vectors (components). What happens to the Horizontal Velocity Vector (Green arrow) throughout the launch?

Increases

Decreases

Stays the same

Launch on more time and watch the vectors. What happens to the Acceleration Vector (Yellow arrow) throughout the launch?

Increases

Decreases

Stays the same

Is there any acceleration in the x direction?

Yes

No

How does gravity affect the projectile?

It causes the projectile to accelerate forward.

It causes the projectile to accelerate downward.

It causes the projectile to accelerate upward.

It causes the projectile to accelerate backward.

What would happen if it were fired on a planet without gravity?

The projectile would continue forward for a while then start to fall down.

The projectile would rise upward immediately.

The projectile would continue forward until acted on by an unbalanced force.

The projectile would fall downward immediately.
