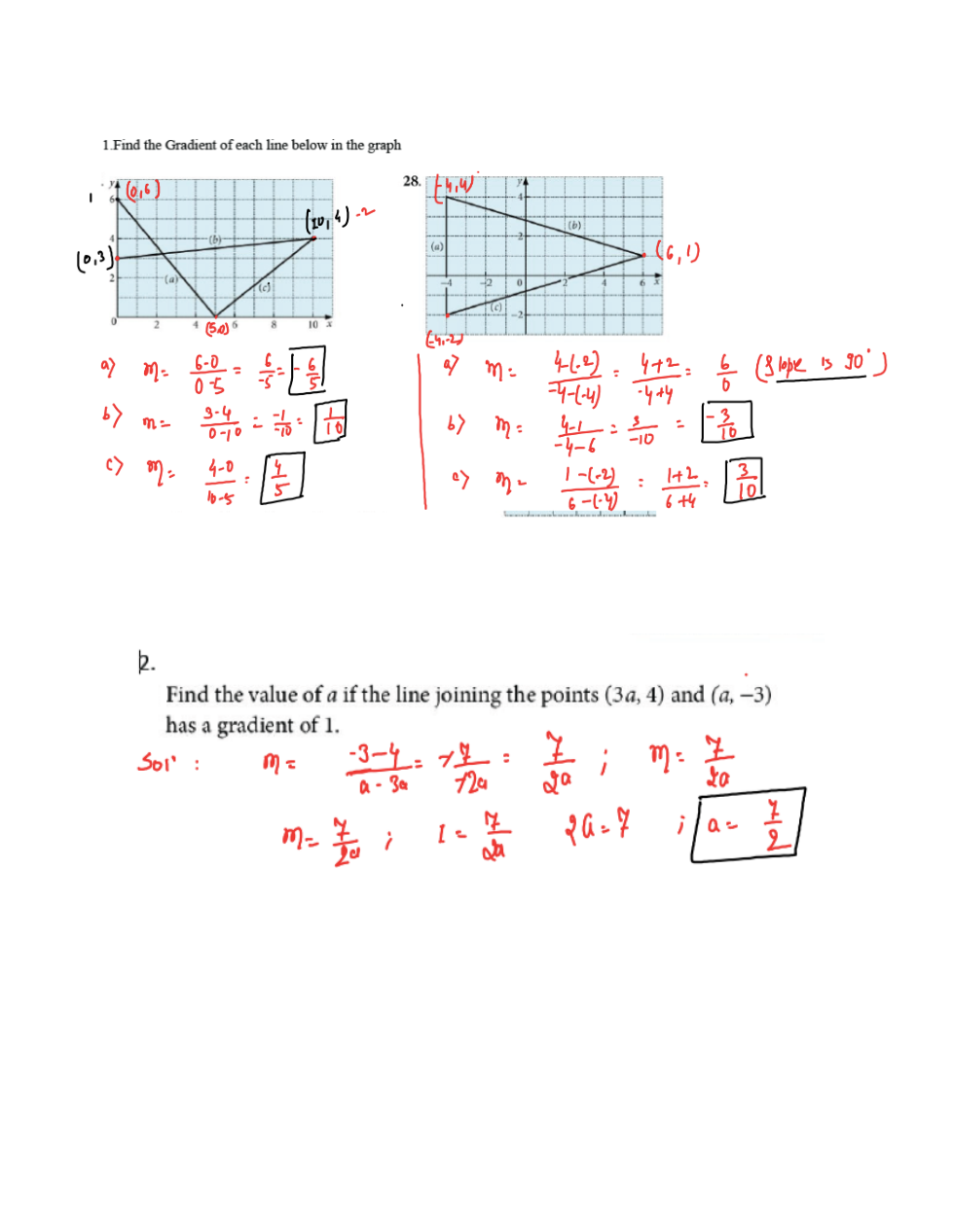

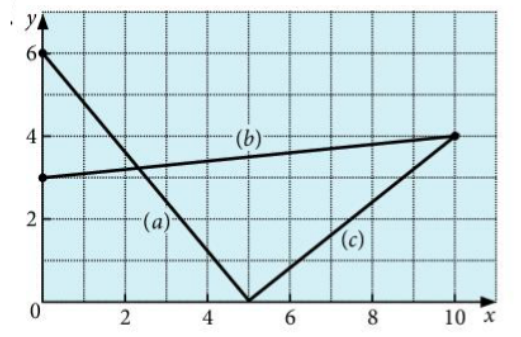

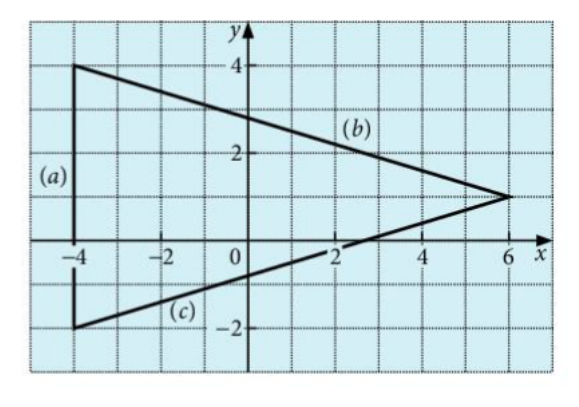

Find the gradient of each line in the graph below:
2 points
2
Question 2
2.
Find the value of a, if the line joining the points (3a,4) and (a,-3) has a gradient of 1.
2 points
2
Question 3
3.

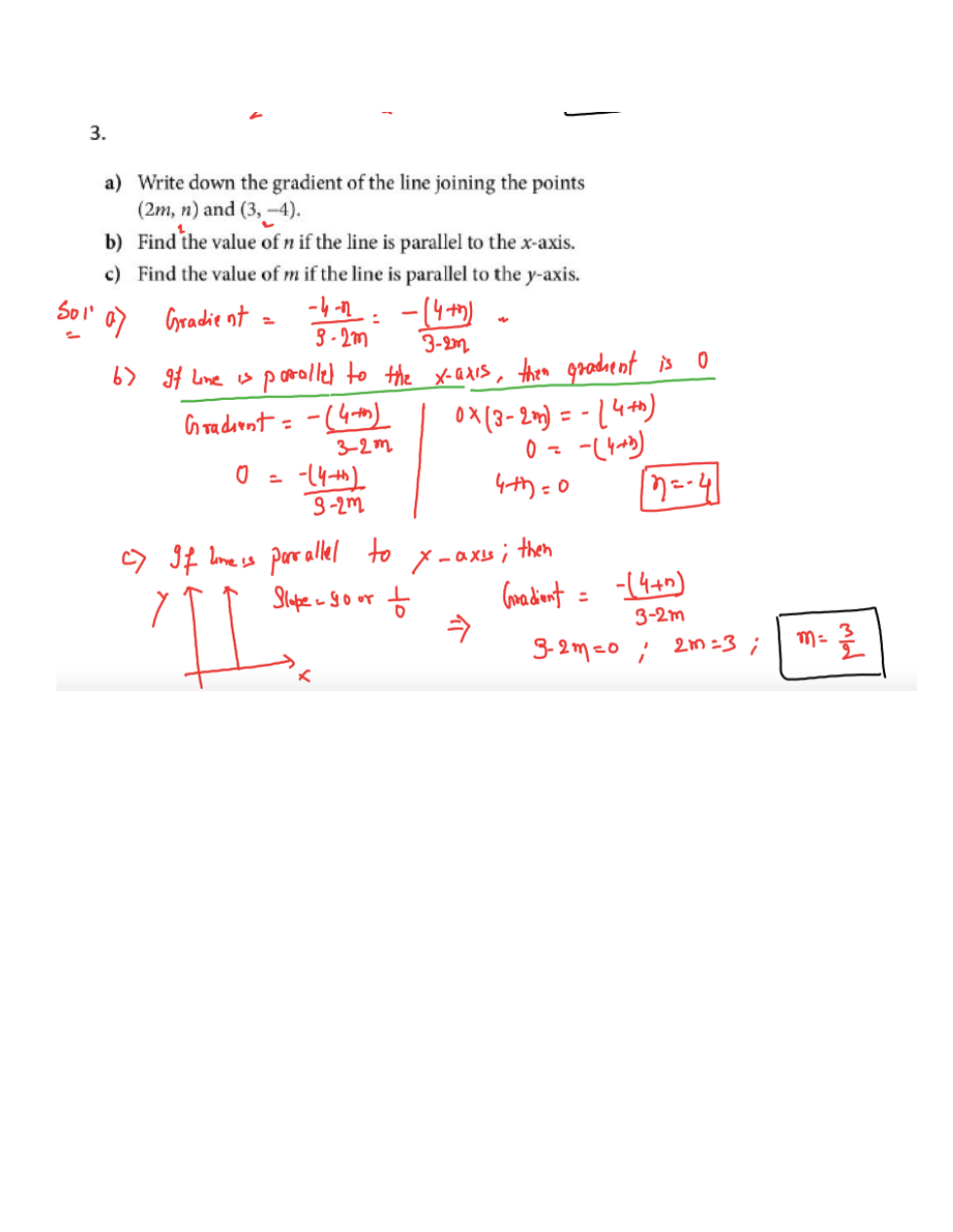

Write down the gradient of the line joining the points (m,n) and (3,-4).
Find the value of n, if the line is parallel to the x-axis.
Find the value of m, if the line is parallel to the y-axis.
2 points
2
Question 4
4.

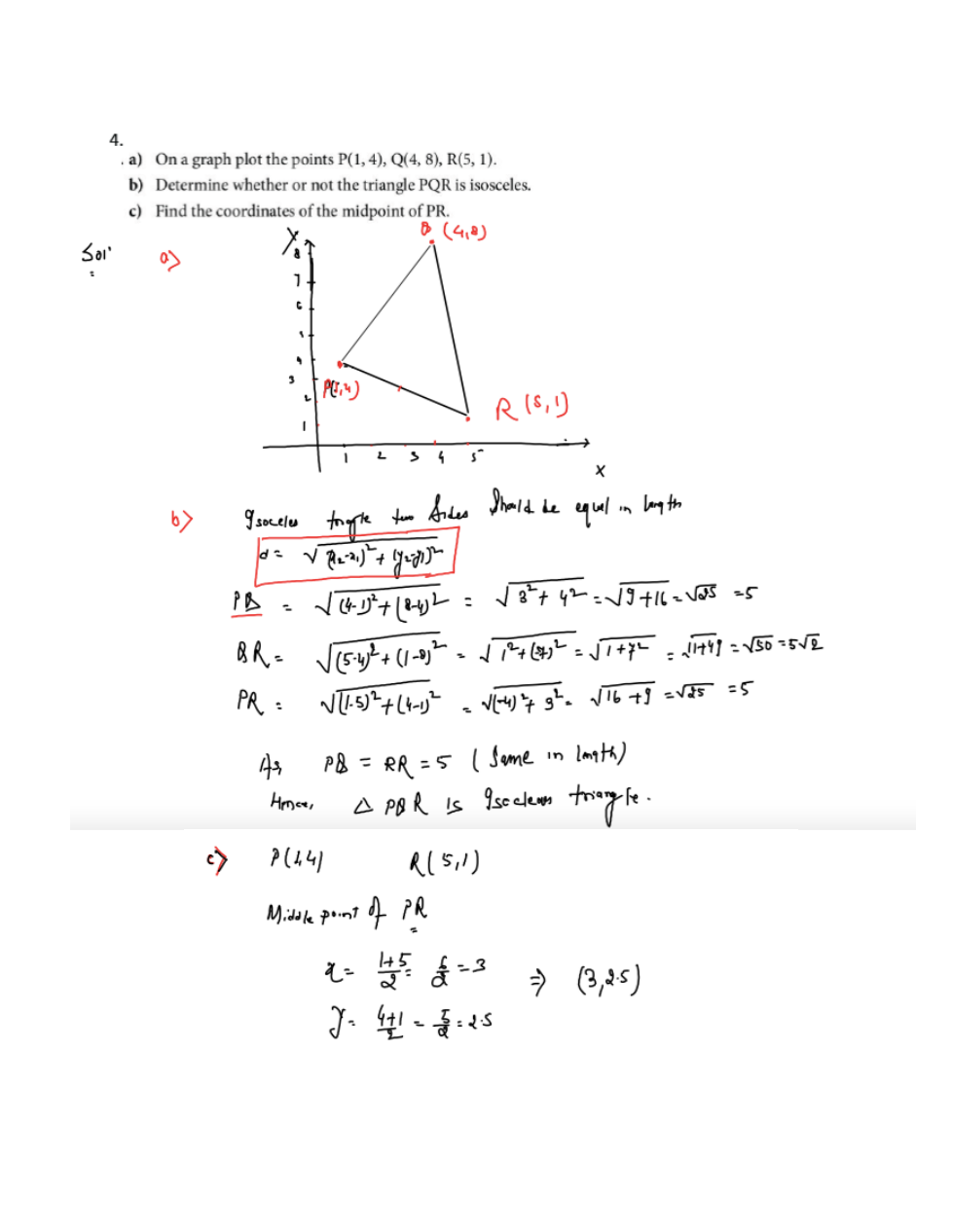

Plot the points P(1,4), Q(4,8) and R(5,1).
Determine whether or not ∆PQR is isosceles.
Find the coordinates of the midpoint of PR
We have released a new and improved Graphing question type! Students will no longer be able to answer this question.
2 points
2
Question 5
5.

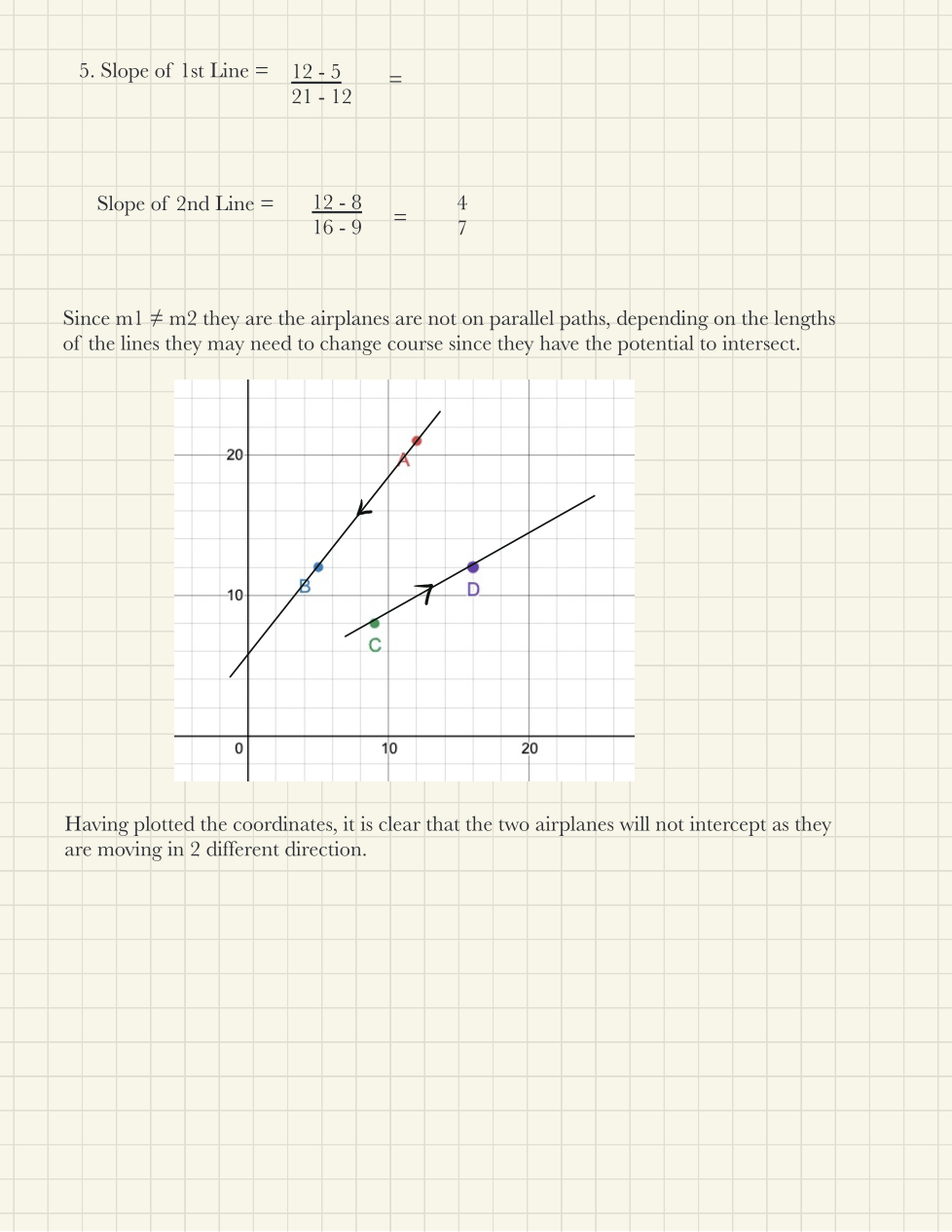

Air traffic controllers are in charge of planes taking off and landing in their airport and any others that fly overhead o the way to other destinations. When planes come into their airspace, they track them using coordinate systems.
Plane A is at (12,5) flying towards (21,12). Plane B is moving from (9,8) to (16,12).
Is there a need to course correct?
2 points
2
Question 6
6.

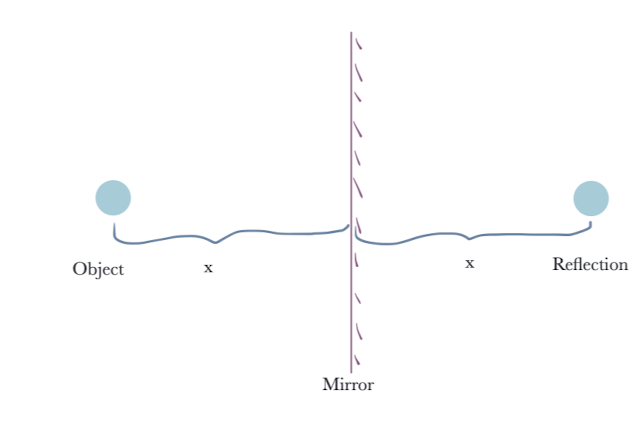

When an object is placed in front of a plane mirror, the reflection appears to be at a distance equal to that of the object from the mirror.

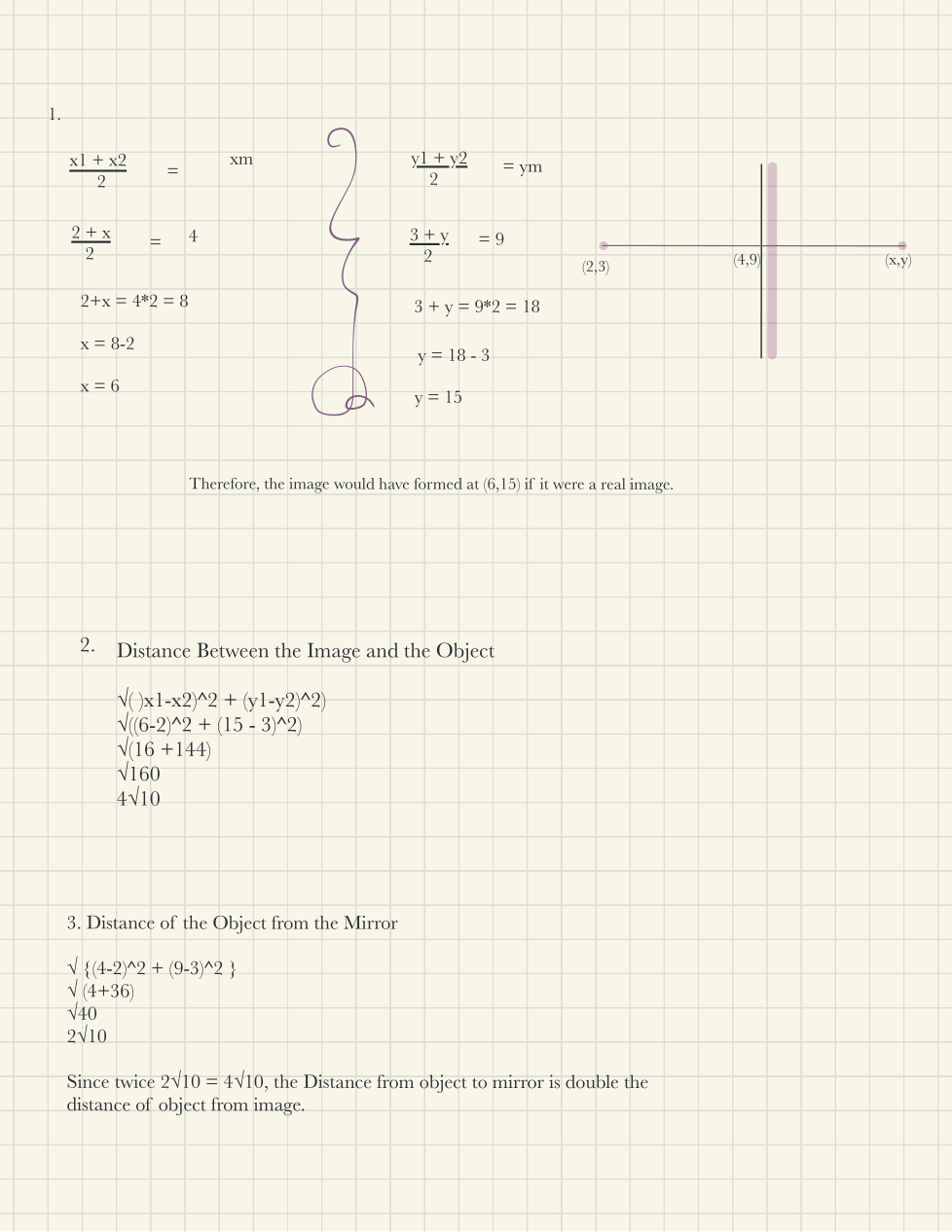

The coordinates of the object (2,3) and the mirror (4,9) are plotted on a graph sheet. Predict where the coordinates of the reflection would have been if it could be plotted.
What is the distance between the object and the reflection?
Verify that it is twice the distance of the object from the mirror.
