Question 1

Provide the correct term for the following: The single vector which has the same effect as the original vectors acting together

Required

Question 2

A 3 N force and a 6 N force act on the same object. Which of the following CANNOT be the magnitude of the resultant of these two forces?

9 N

4 N

3 N

5 N

1 N

Required

Question 3

A plane flies north at 200 m.s-1 with a headwind blowing from the north at 70 m.s-1. What is the resultant velocity of the plane?

130 m.s-1 north

270 m.s-1 south

130 m.s-1 south

270 m.s-1 north

Required

Question 4

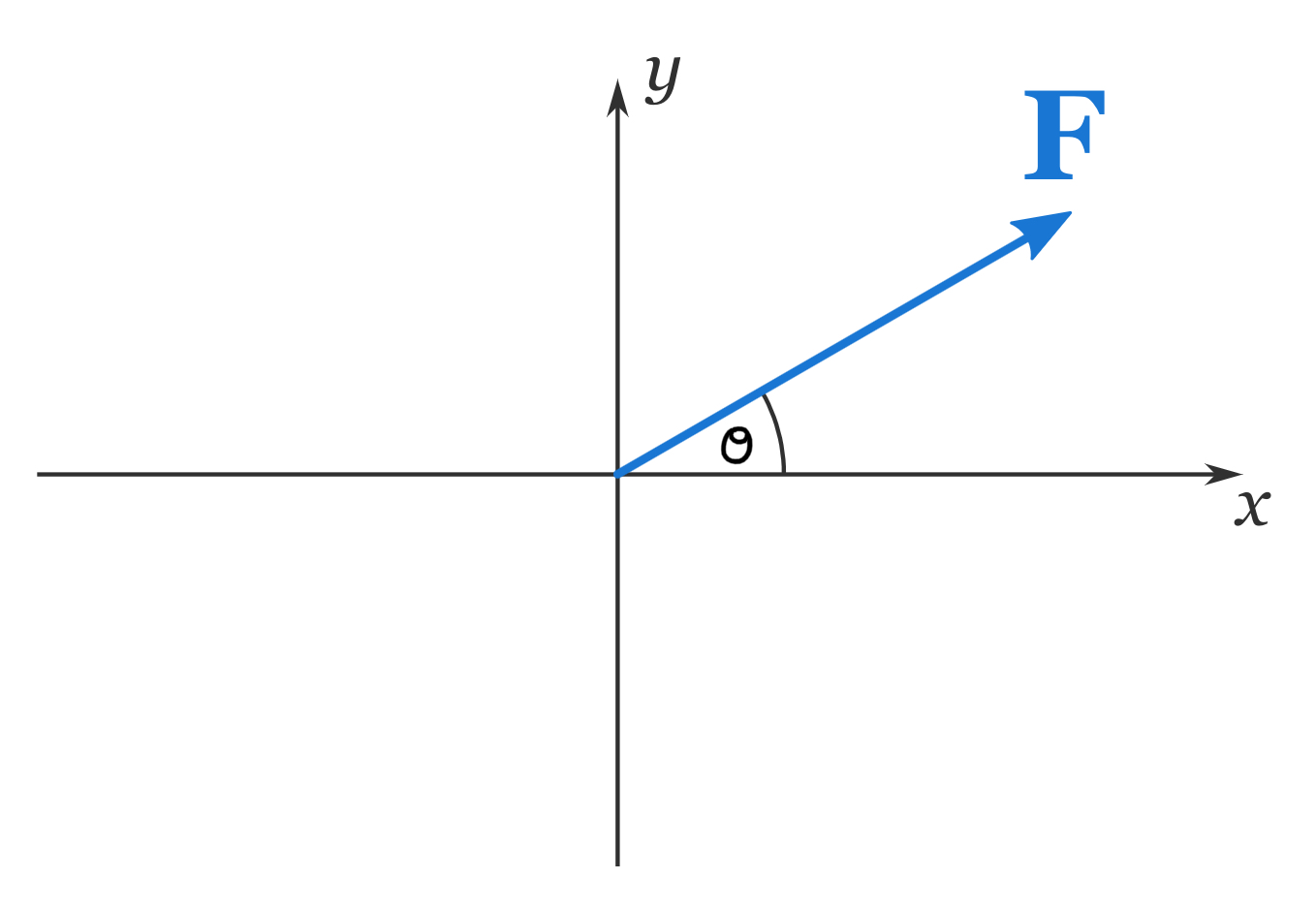

When will the 𝓍-component of a vector with angle θ be greater than its 𝓎-component?

0º < θ < 45º

θ = 45º

45º < θ < 60º

60º < θ < 90º

Required

Question 5

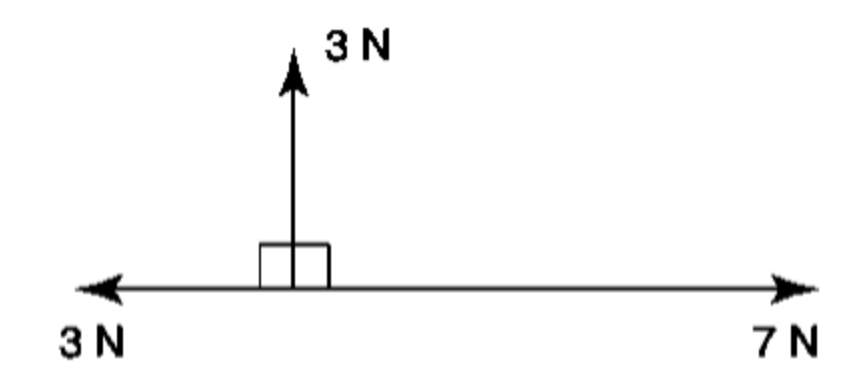

The magnitude of the resultant of the vectors in this diagram is ........

13 N

5 N

63 N

1 N

Question 6

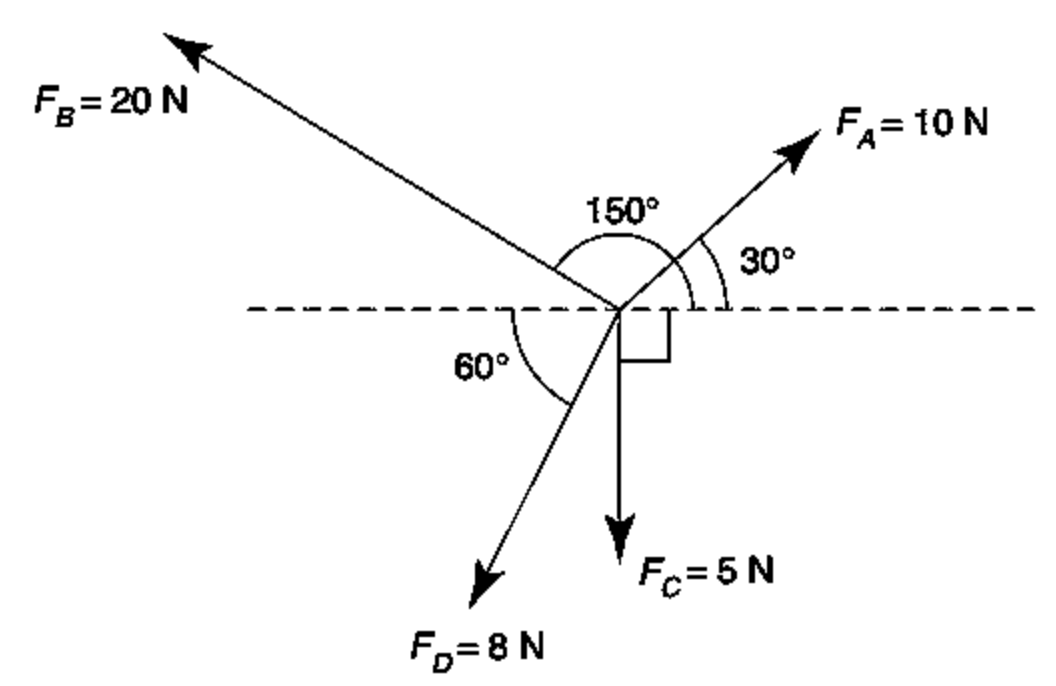

Consider the diagram showing 4 forces acting on a point. Complete the table below by deciding if the statements are true or false.

	True	False
The horizontal component of FA is 8,66 N
The vertical component of FB is 10,00 N
The horizontal component of FC is 0 N
The vertical component of FD is 4 N
FA is acting on a bearing of 60º

Question 7

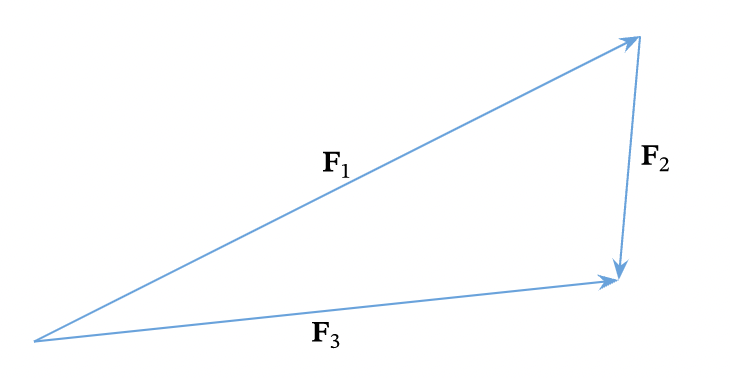

Which vector is the resultant?

A

B

C

Question 8

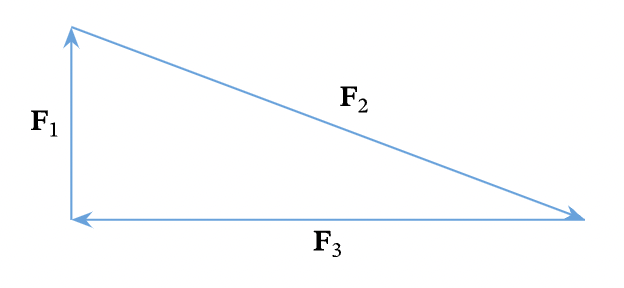

Which option illustrates a scenario where the forces are in equilibrium?

Question 1

Provide the correct term for the following: The single vector which has the same effect as the original vectors acting together

Question 2

A 3 N force and a 6 N force act on the same object. Which of the following CANNOT be the magnitude of the resultant of these two forces?

9 N

4 N

3 N

5 N

1 N

Question 3

A plane flies north at 200 m.s-1 with a headwind blowing from the north at 70 m.s-1. What is the resultant velocity of the plane?

130 m.s-1 north

270 m.s-1 south

130 m.s-1 south

270 m.s-1 north

Question 4

When will the 𝓍-component of a vector with angle θ be greater than its 𝓎-component?

0º < θ < 45º

θ = 45º

45º < θ < 60º

60º < θ < 90º

Question 5

The magnitude of the resultant of the vectors in this diagram is ........

13 N

5 N

63 N

1 N

Question 6

Consider the diagram showing 4 forces acting on a point. Complete the table below by deciding if the statements are true or false.

	True	False
The horizontal component of FA is 8,66 N
The vertical component of FB is 10,00 N
The horizontal component of FC is 0 N
The vertical component of FD is 4 N
FA is acting on a bearing of 60º

Question 7

Which vector is the resultant?

A

B

C

Question 8
