The resistance of each of the Yellow Lights in both diagrams are 10 Ohms

An electrical circuit is simply an energy __________ tool.

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, justify with your shown work!)

Unit 07 - Electric Circuts Test

Unit 07 - Electric Circuts Test

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, justify with your shown work!)

Explain what was discovered in Ethan's cord length experiment.

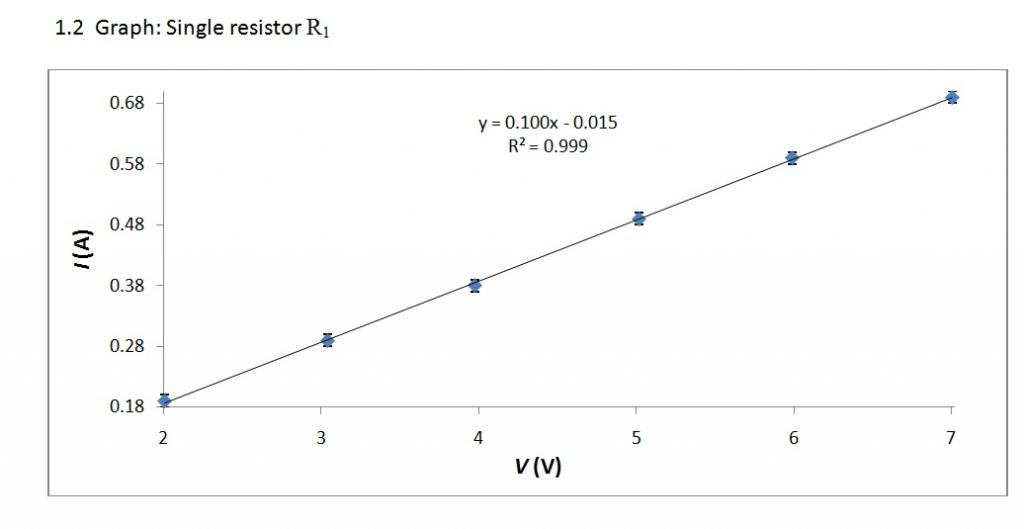

Calculate the Ohms of the single resistor using this graph.

Where is the electrical resistance the highest?

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, justify with your shown work!)

Predict the appropriate use of parallel or series circuits.

Match the left definition with the appropriate term on the right.

Explain what was discovered in Ethan's cord length experiment.

Calculate the Ohms of the single resistor using this graph.

Where is the electrical resistance the highest?

What can affect electrical resistance?

Volts =

Volts =

Volts =

Volts =

Volts =

Volts =

I =

I =

I =

Unit 07 - Electric Circuts Test

Unit 07 - Electric Circuts Test

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)(There are multiple ways to get the correct answer, justify with your shown work!)

Explain what was discovered in Ethan's cord length experiment.

Calculate the Ohms of the single resistor using this graph.

Where is the electrical resistance the highest?

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)(There are multiple ways to get the correct answer, justify with your shown work!)

Predict the appropriate use of parallel or series circuits.

Match the left definition with the appropriate term on the right.

Explain what was discovered in Ethan's cord length experiment.

Calculate the Ohms of the single resistor using this graph.

Where is the electrical resistance the highest?

What can affect electrical resistance?

Volts =

Volts =

Volts =

Volts =

Volts =

Volts =

I =

I =

I =

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, justify with your shown work!)

How much does it cost to power an induction stove that draws 6 amps of current for 32minutes and 45 seconds when plugged into a 240-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, justify with your shown work!)
