Unit 07 Practice Test

4

Fill in the blanks.

4

Fill in the blanks.

2

In an electrical circut, a high rate of charge flow will lead to a ________________

4

An circuit is simply an energy tool.

4

Power is the rate at which energy is to a circuit or by a .

8

How much does it cost to power a toaster that draws 6 amps of current for 45seconds when plugged into a 120-volt outlet? ( Remember, Centerpoint charges you about $0.16/kWh)
(There are multiple ways to get the correct answer, make sure you can justify with your shown work!)

8

Predict the appropriate use of parallel or series circuits.

burglar alarm
GFCI recepticals
want a failure to affect all devices/bulbs
wiring in a house
want a failure to not affect all devices/bulbs
need the components to have the same voltage
less wires

Series Circuit
Parallel Circuit

6

Match the left definition with the appropriate term on the right.

measure of the electrical push through a wire
= V/R
measure of how much electricity is being pushed
= V/I
= I*R
measure of the resistance to electrical flow

Ohms
Current
Volts

4

In Ethan's phone charging example, what had to remain the same within the experiment?

2

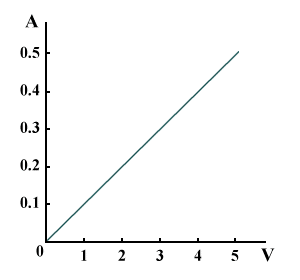

Ohm's on a Volts vs. Amps graph is the

density

time

net force

temperature

atmospheric pressure

gravity

length

thickness

material
