All matter has positive and negative charges. Positive and negative charges ___________.

multiply

attract

divide

repel

When electrons transfer onto a material it will become...

positivlely charged

negatively charged

neutral charge

The act of charging materials by rubbing them together is called:

Charging by reflex

Charging by contact

Charging by induction

Charging by friction

If you bring a charged object near, but not touching an object, the process is called:

Charging by Induction

None of the above

Charging by contact

Charging by friction

When lightning strikes, the electrons get close to the ground, which attract the positive ions that surge upward. The ions connect in between the cloud and the ground.

True

False

According to the documentary we watched in class about lightning, there are many types of lightning that are seen in the upper atmosphere. These types of lightning are called:
(select all that apply)

sprites

blue jets

fairies

elves

Using this Electrostatic Series, if you rubbed a glass rod with some cotton, which material would receive electrons from which?

glass rod electrons would move to the cotton

cotton electrons would move to the glass rod

you would not be able to guess this without measuring

To complete a circuit the switch must be:

open

closed

unattached

none of the above

What does this symbol represent in a circuit?

buzzer

resistor

closed switch

battery cell

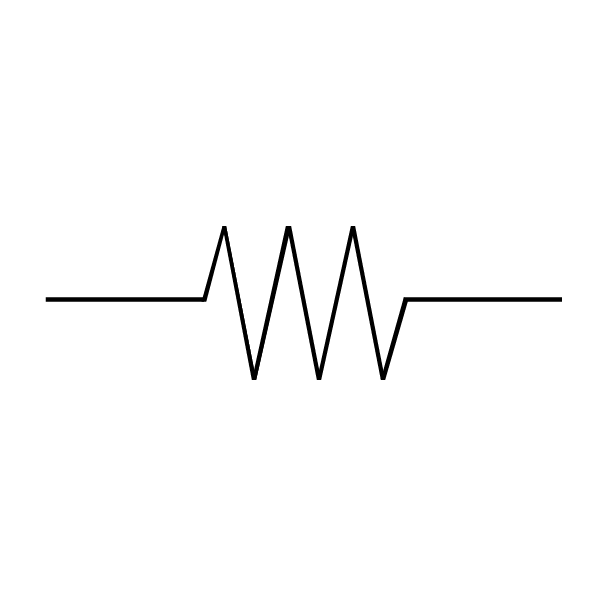

What does this symbol represent in a circuit?

motor

battery

light bulb

resistor

In a series circuit, if one bulb goes out_________________________________.

they all go out

the rest stay on

half stay on and half go out

nothing happens

In a parallel circuit, if one bulb goes out_________________________________.

they all go out

the rest stay on

half stay on and half go out

nothing happens

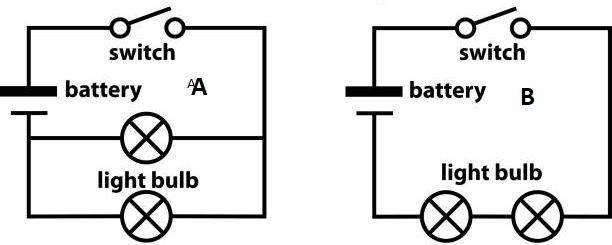

Which of these circuits is considered a parallel circuit?

A

B

Using the space provided, draw a series circuit diagram with one battery, one light bulb, and an open switch. Be sure to use the proper symbols.

A 12 volt battery is connected to a 0.5 amp wire. What is the resistance of the light bulb connected in the circuit?

How much voltage does a line with a resistance of 10 ohms and a current of 20 amps possess?

200 V

2000 V

2 V

0.5 V

An electric toaster has a resistance of 12 Ω. What current will it draw from a 120 V supply?

What is the current if the voltage is 110V and the resistance is 10Ω?

0.09 A

11 A

1100 A

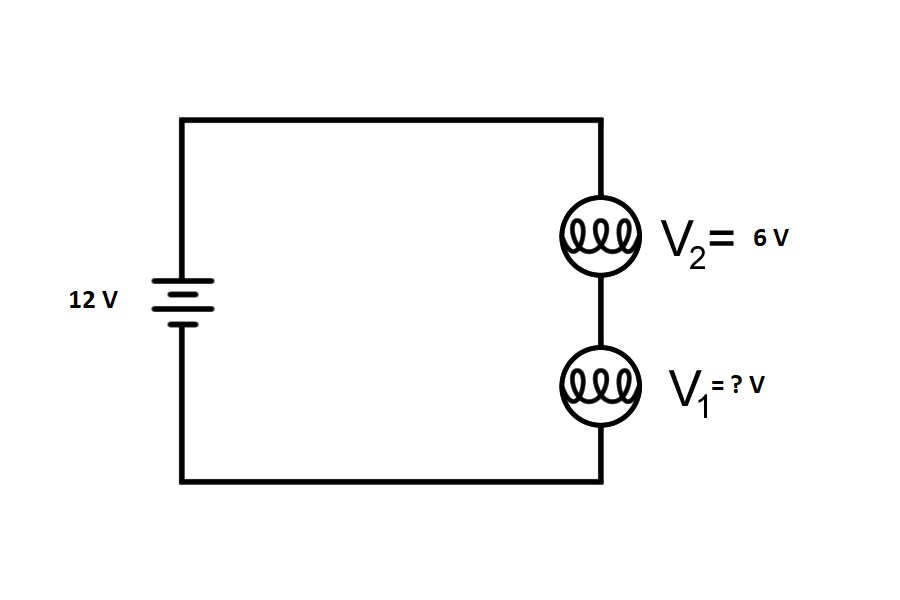

What is the voltage at V1?

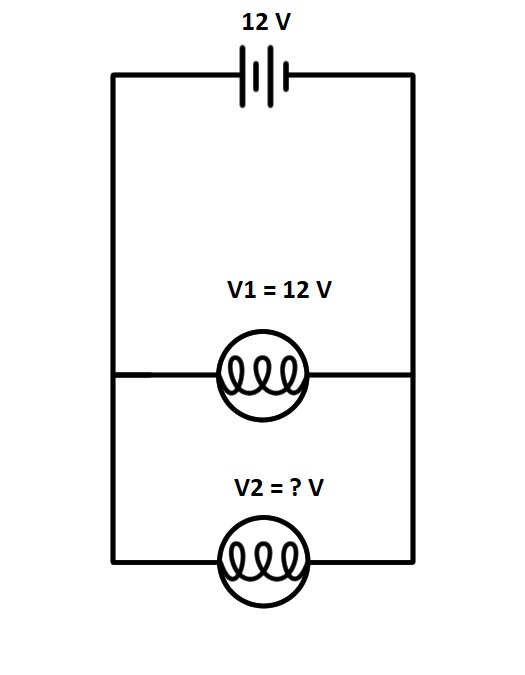

What is the voltage at V2?

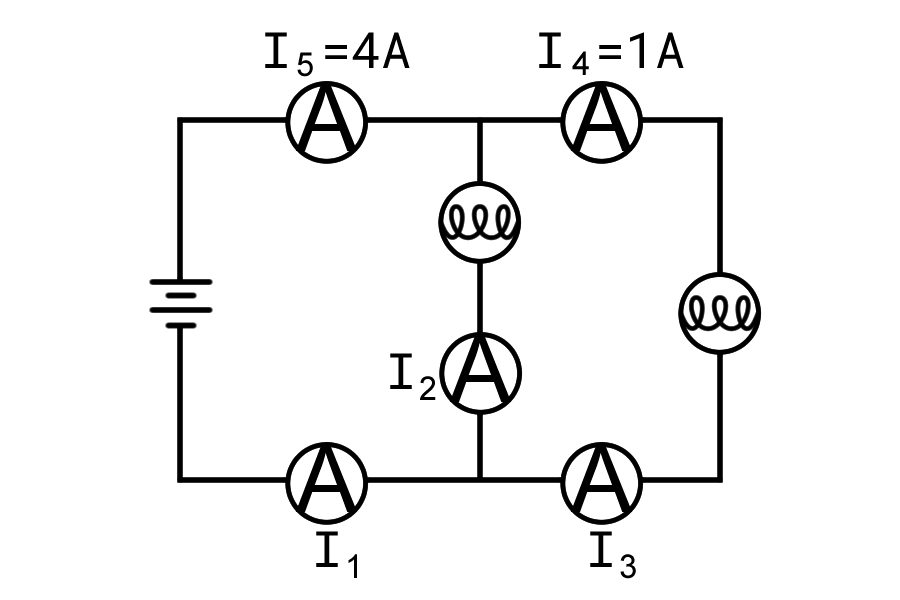

What is the current at I2?

What is the current at I1?

All matter has positive and negative charges. Positive and negative charges ___________.

multiply

attract

divide

repel

When electrons transfer onto a material it will become...

positivlely charged

negatively charged

neutral charge

The act of charging materials by rubbing them together is called:

Charging by reflex

Charging by contact

Charging by induction

Charging by friction

If you bring a charged object near, but not touching an object, the process is called:

Charging by Induction

None of the above

Charging by contact

Charging by friction

When lightning strikes, the electrons get close to the ground, which attract the positive ions that surge upward. The ions connect in between the cloud and the ground.

True

False

According to the documentary we watched in class about lightning, there are many types of lightning that are seen in the upper atmosphere. These types of lightning are called:
(select all that apply)

sprites

blue jets

fairies

elves

Using this Electrostatic Series, if you rubbed a glass rod with some cotton, which material would receive electrons from which?

glass rod electrons would move to the cotton

cotton electrons would move to the glass rod

you would not be able to guess this without measuring

To complete a circuit the switch must be:

open

closed

unattached

none of the above

What does this symbol represent in a circuit?

buzzer

resistor

closed switch

battery cell

What does this symbol represent in a circuit?

motor

battery

light bulb

resistor

In a series circuit, if one bulb goes out_________________________________.

they all go out

the rest stay on

half stay on and half go out

nothing happens

In a parallel circuit, if one bulb goes out_________________________________.

they all go out

the rest stay on

half stay on and half go out

nothing happens

Which of these circuits is considered a parallel circuit?

A

B

How much voltage does a line with a resistance of 10 ohms and a current of 20 amps possess?

200 V

2000 V

2 V

0.5 V

What is the current if the voltage is 110V and the resistance is 10Ω?

0.09 A

11 A

1100 A
