Basic Electrical Symbols Practice
star
star
star
star
star
Last updated over 3 years ago
3 questions
Required
7
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
| arrow_right_alt | DC power supply | |
| arrow_right_alt | selector switch NC (normally closed) | |
| arrow_right_alt | pushbutton switch NC (normally closed) | |
| arrow_right_alt | knife switch NC (normally closed) | |

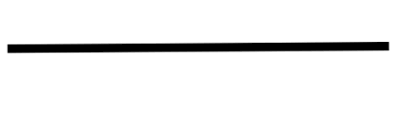

| arrow_right_alt | wire or conductor | |
| arrow_right_alt | buzzer | |
| arrow_right_alt | lamp |
Required
6
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
| arrow_right_alt | AC power supply | |
| arrow_right_alt | DC power supply | |

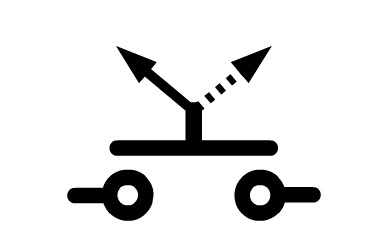

| arrow_right_alt | selector switch NO (normally open) | |
| arrow_right_alt | pushbutton switch NO (normally open) | |
| arrow_right_alt | knife switch NO (normally open) | |
| arrow_right_alt | solenoid |
Required
6
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
| arrow_right_alt | buzzer | |
| arrow_right_alt | LED (light emitting diode) | |
| arrow_right_alt | lamp | |
| arrow_right_alt | resistor | |
| arrow_right_alt | motor | |
| arrow_right_alt | DC power supply |
