Chapter 3 Review

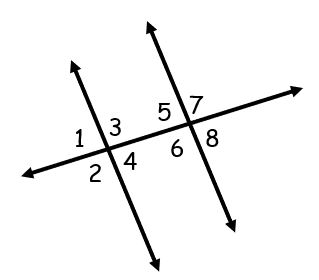

Use the diagram below for the next 5 questions.

null

1

\angle{1} and \angle{} _______ are Alternate Exterior Angles.

1

\angle{3} and \angle{} _______ are Consecutive Interior Angles.

1

\angle{3} and \angle{} _______ are Alternate Interior Angles.

1

\angle{2} and \angle{} _______ are Corresponding Angles.

1

\angle{5} and \angle{} _______ are Vertical Angles.

1

Consecutive Interior Angles are _________________.

Congruent

Supplementary

1

Corresponding Angles are _________________.

Congruent

Supplementary

1

Alternate Interior Angles are _________________.

Congruent

Supplementary

1

Alternate Exterior Angles are _________________.

Congruent

Supplementary

1

Vertical Angles are _________________.

Congruent

Supplementary

1

A Linear Pair is _________________.

Congruent

Supplementary

Use the diagram below for the next 3 questions.

null

1

If m\angle{1} = 72^o, then m\angle{5} = ________

1

If m\angle{4} = 66^o, then m\angle{6} = ________

1

If m\angle{7} = 102^o, then m\angle{2} = ________

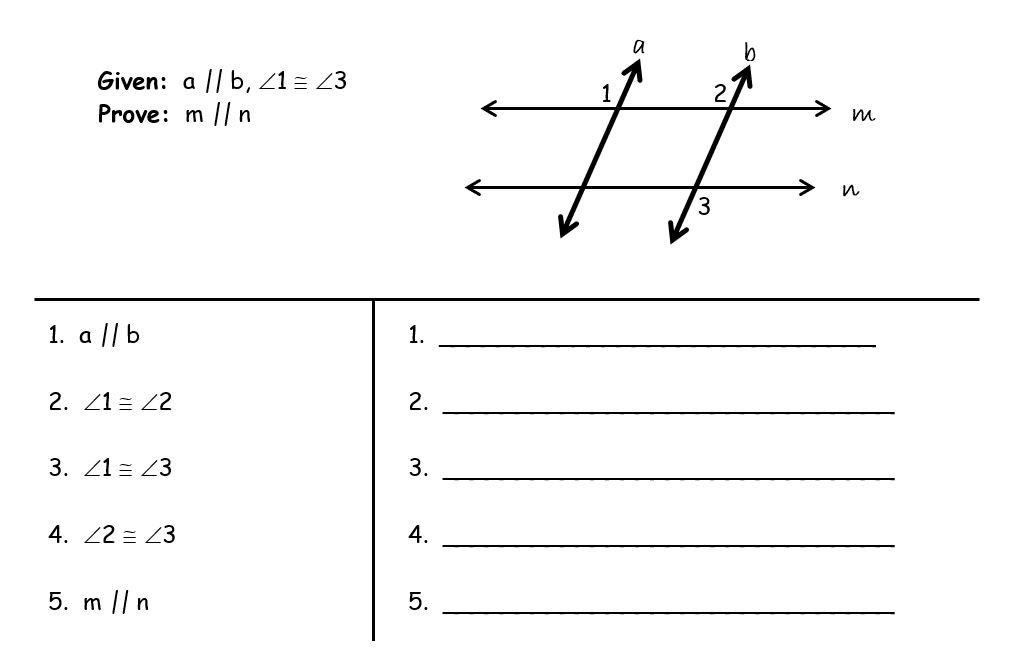

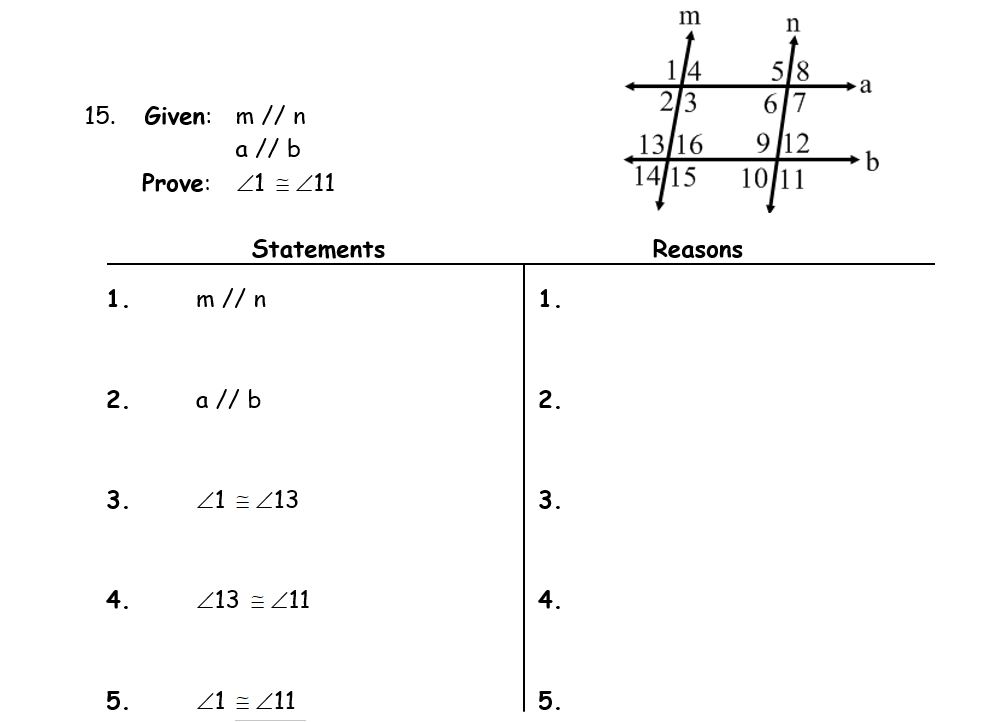

Use the proof below for the next 5 questions.

null

1

Reason #1

1

Reason #2

1

Reason #3

1

Reason #4

1

Reason #5

1

Two lines that are not coplanar and do not intersect are called?

Use the points below for the next 2 questions.

(2, 5) and (-4, 8)

1

What is the slope between these two points?

1

Determine the type of slope from your answer above.

Rises

Falls

Vertical

Horizontal

Use the points below for the next 2 questions.

(-3, -7) and (-3, 4)

1

What is the slope between these two points?

1

Determine the type of slope from your answer above.

Rises

Falls

Vertical

Horizontal

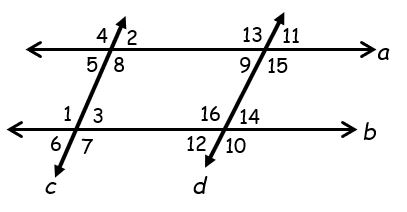

Use the diagram below for the next 8 questions.

For each question, determine which lines (a & b, c & d, or none), if any, must be parallel with the given information.

null

1

Use the proof below for the next 5 questions.

null

1

Reason #1

1

Reason #2

1

Reason #3

1

Reason #4

1

Reason #5

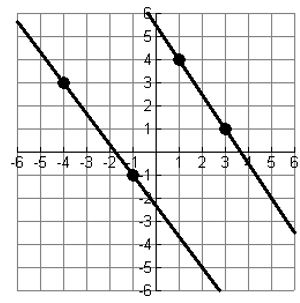

Use the diagram below for the next 3 questions.

null

1

What is the slope of the line on the left?

1

What is the slope of the line on the right?

1

Are the lines parallel?

Yes

No

Use the linear equation below for the next 2 questions.

1

What is the slope of this line?

1

What is the y-intercept of this line?

Use the linear equation below for the next 2 questions.

1

What is the slope of this line?

1

What is the y-intercept of this line?

1

Write the equation of a line with a slope of 8 and a y-intercept of -1/2.

1

Write the equation of a line that passes through the point (2, 3) and has a slope of -2.

1

Write the equation of a line parallel to y = 1/4x + 2 through the point (12, -5).

1

Write the equation of a line perpendicular to y = 1/4x + 2 through the point (12, -5).

1

Determine if the following pairs of lines are parallel, perpendicular, or neither:

Parallel

Perpendicular

Neither

1

Determine if the following pairs of lines are parallel, perpendicular, or neither:

Parallel

Perpendicular

Neither

1

Determine if the following pairs of lines are parallel, perpendicular, or neither:

Parallel

Perpendicular

Neither

1

Determine if the following pairs of lines are parallel, perpendicular, or neither:

Parallel

Perpendicular

Neither

Use the lines below for the next 2 questions.

Line 1: (10, 7) and (13, 9)

Line 2: (-4, 3) and (-1, 5)

1

What is the slope of Line 1?

1

What is the slope of Line 2?

1

Are these lines parallel, perpendicular, or neither?

Parallel

Perpendicular

Neither

Use the lines below for the next 2 questions.

Line 1: (2, -3) and (7, -1)

Line 2: (1, 9) and (3, 4)

1

What is the slope of Line 1?

1

What is the slope of Line 2?

1

Are these lines parallel, perpendicular, or neither?

Parallel

Perpendicular

Neither

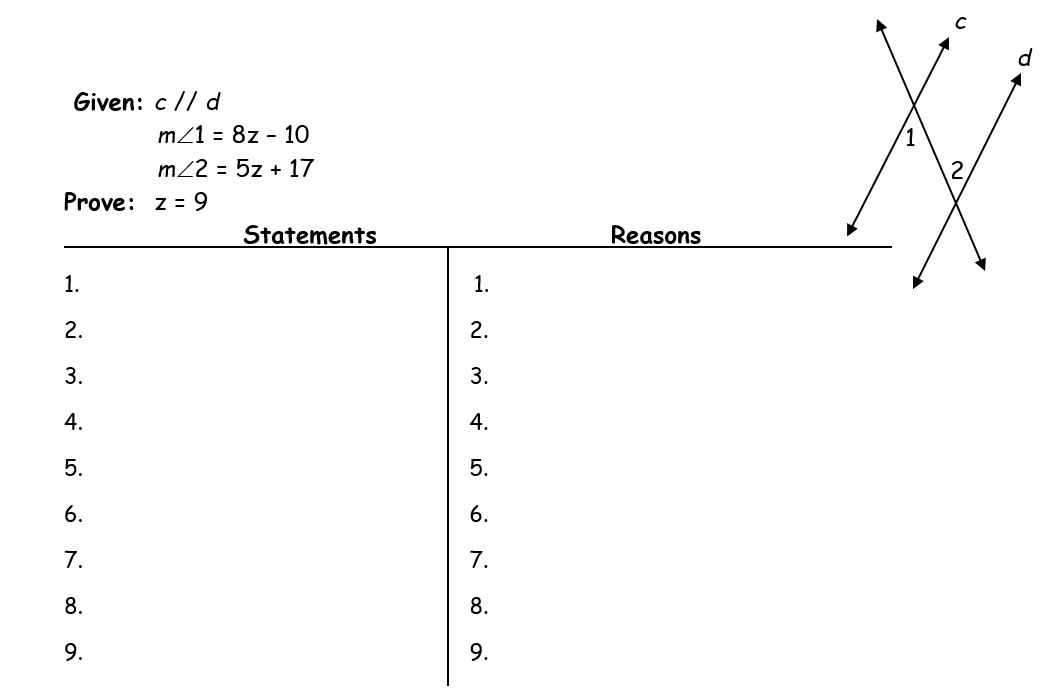

In the proof below, first reorder the statements to complete the left side of the proof. Then, provide the reasons for each statement.

null

1

Put the statements in the correct order to complete the proof.

8z - 10 = 5z + 17
m\angle{2} = 5z + 17
\angle{1} \cong \angle{2}
c || d
z = 9
3z = 27
m\angle{1} = 8z - 10
m\angle{1} = m\angle{2}
3z - 10 = 17

Using the correct order of the proof completed above, state the reasons for each step.

null

1

Reason #1

1

Reason #2

1

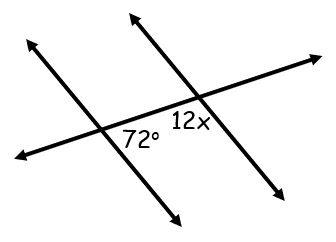

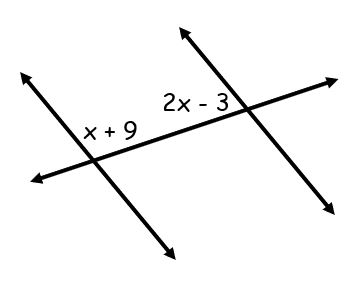

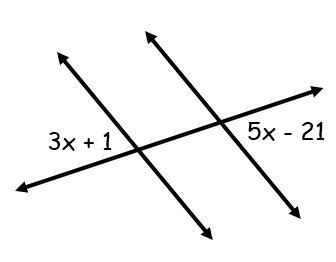

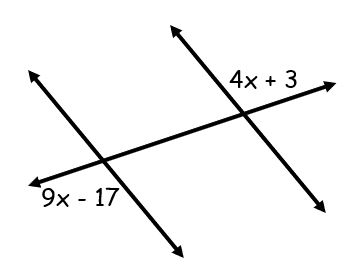

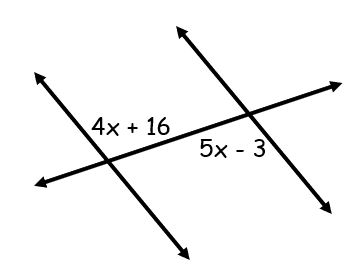

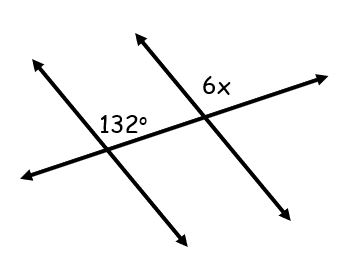

Using the diagram below, find the value of x.

1

Using the diagram below, find the value of x.

1

Using the diagram below, find the value of x.

1

Using the diagram below, find the value of x.

1

Using the diagram below, find the value of x.

1
