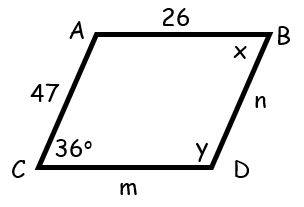

Use the following parallelogram for the next 4 questions.
1 point
1
Question 1
1.
Find the value of x.
1 point
1
Question 2
2.
Find the value of y.
1 point
1
Question 3
3.
Find the value of m.
1 point
1
Question 4
4.
Find the value of n.
Use the following parallelogram for the next 2 questions.
1 point
1
Question 5
5.
If CD = x + 12, and AB = 3x - 4, find the value of x.
1 point
1
Question 6
6.
If AE = x + 9, and AD = 3x + 15, find the value of x.
Use the following square for the next 5 questions.
1 point
1
Question 7
7.
What is the length of segment MN?
1 point
1
Question 8
8.
What is the measure of angle MLN?
1 point
1
Question 9
9.
What is the measure of angle LFM?
1 point
1
Question 10
10.
What is the length of segment LN? Round your answer to the nearest TENTH.
1 point
1
Question 11
11.
If the measure of angle LON = 4x - 2, find the value of x.

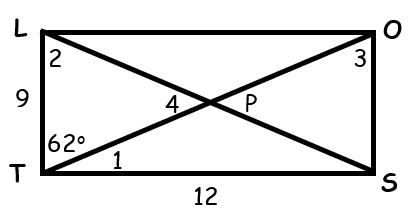

Ues the following rectangle for the next 8 questions.
1 point
1
Question 12
12.
What is the measure of angle 1?
1 point
1
Question 13
13.
What is the measure of angle 2?
1 point
1
Question 14
14.
What is the measure of angle 3?
1 point
1
Question 15
15.
What is the measure of angle 4?
1 point
1
Question 16
16.
What is the length of segment OS?
1 point
1
Question 17
17.
What is the length of segment LO?
1 point
1
Question 18
18.
What is the length of segment LS?
1 point
1
Question 19
19.
What is the length of segment LP?

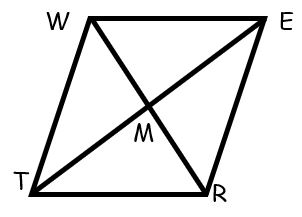

Use the following rhombus for the next 5 questions.
1 point
1
Question 20
20.
If WE = 19, what is the length of segment ER?
1 point
1
Question 21
21.
What is the measure of angle WME?
1 point
1
Question 22
22.
If the measure of angle ERT = 92, what is the measure of angle ERM?
1 point
1
Question 23
23.
If the measure of angle RMT = 5x - 10, find the value of x.
1 point
1
Question 24
24.
If the measure of angle MTW = 44, what is the measure of angleTWM?
Use the following isosceles trapezoid for the next 6 questions.
1 point
1
Question 25
25.
Which of the following pairs of angles are base angles?
1 point
1
Question 26
26.
Which of the following segments are legs? Check all that apply.
1 point
1
Question 27
27.
Which of the following segments are bases? Check all that apply.
1 point
1
Question 28
28.
If the measure of angle B = 110, what is the measure of angle A?
1 point
1
Question 29
29.
If the measure of angle B = 110, what is the measure of angle D?
1 point
1
Question 30
30.
If diagonal AC = 3x + 9, and diagonal DB = 15, find the value of x.
Use the following trapezoid for the next 5 questions. NM is the midsegment.
1 point
1
Question 31
31.
If the length of ZT = 24, what is the length of NT?
1 point
1
Question 32
32.
If the length of ZB = 9, and TU = 41, what is the length of MN?
1 point
1
Question 33
33.
If the measure of angle ZTU = 48, what is the measure of angle ZNM?
1 point
1
Question 34
34.
If the measure of angle NMU = 120, what is the measure of angle ZBM?
1 point
1
Question 35
35.
If the measure of angle TNM = 140, what is the measure of angle ZNM?

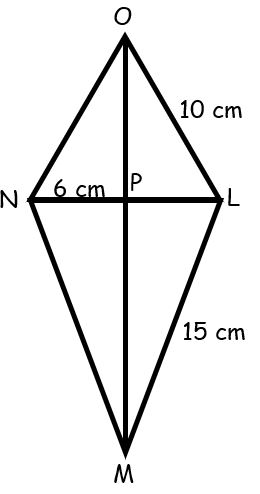

Use the following kite for the next 6 questions.
1 point
1
Question 36
36.
What is the length of segment LP?
1 point
1
Question 37
37.
What is the length of segment LN?
1 point
1
Question 38
38.
What is the length of segment MN?
1 point
1
Question 39
39.
What is the measure of angle LPM?
1 point
1
Question 40
40.
What is the length of segment PM? Round your answer to the nearest TENTH?
1 point
1
Question 41
41.
If the measure of angle ONM = 9x - 11, and the measure of angle OLM = 4x + 29, find the value of x.

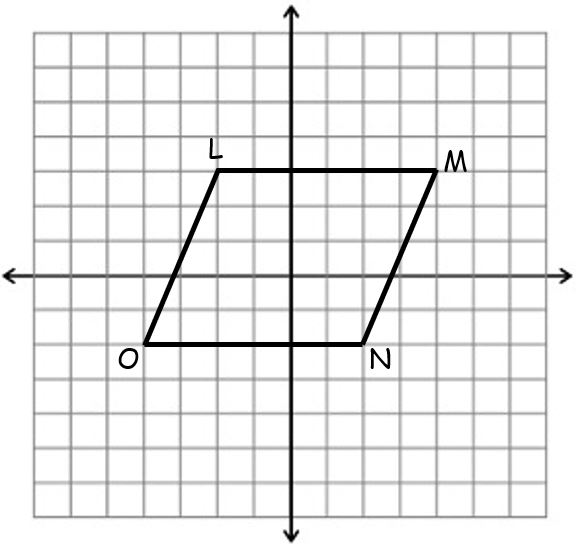

Use the following of quadrilateral LMNO to determine what type of quadrilateral it is. You will find the slopes of distances of all four sides. Slopes should be written as reduced fractions, and distances written as radicals (NO DECIMALS).
0.5 points
0.5
Question 42
42.
What is the slope of OL? Be sure to simplify.
0.5 points
0.5
Question 43
43.
What is the slope of LM? Be sure to simplify.
0.5 points
0.5
Question 44
44.
What is the slope of ON? Be sure to simplify.
0.5 points
0.5
Question 45
45.
What is the slope of NM? Be sure to simplify.
1 point
1
Question 46
46.
Using the slopes and distances found above, what kind of quadrilateral is LMNO?

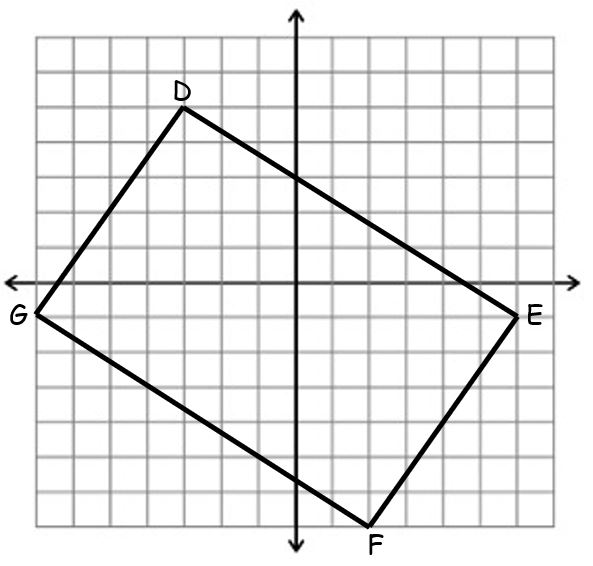

Use the following of quadrilateral DEFG to determine what type of quadrilateral it is. You will find the slopes of distances of all four sides. Slopes should be written as reduced fractions, and distances written as radicals (NO DECIMALS).
0.5 points
0.5
Question 47
47.
What is slope of GD? Be sure to simplify.
0.5 points
0.5
Question 48
48.
What is slope of DE? Be sure to simplify.
0.5 points
0.5
Question 49
49.
What is slope of GF? Be sure to simplify.
0.5 points
0.5
Question 50
50.
What is slope of FE? Be sure to simplify.
0.5 points
0.5
Question 51
51.
What is length of GD? Leave your answer as a radical.
0.5 points
0.5
Question 52
52.
What is length of DE? Leave your answer as a radical.
0.5 points
0.5
Question 53
53.
What is length of GF? Leave your answer as a radical.
0.5 points
0.5
Question 54
54.
What is length of FE? Leave your answer as a radical.
1 point
1
Question 55
55.
Using the slopes and distances found above, what kind of quadrilateral is DEFG?
1 point
1
Question 56
56.
Every square is a parallelogram.
1 point
1
Question 57
57.
Every trapezoid is an isosceles trapezoid.
1 point
1
Question 58
58.
Every parallelogram is a rhombus.
1 point
1
Question 59
59.
Every kite is a rhombus.
1 point
1
Question 60
60.
Every rectangle is a parallelogram.
1 point
1
Question 61
61.
A trapezoid can be a kite.
1 point
1
Question 62
62.
Classify the following quadrilateral with the most specific name.
1 point
1
Question 63
63.
Classify the following quadrilateral with the most specific name.
1 point
1
Question 64
64.
Classify the following quadrilateral with the most specific name.
1 point
1
Question 65
65.
Classify the following quadrilateral with the most specific name.
1 point
1
Question 66
66.
The following problem is an optional BONUS:
Find the perimeter of the entire figure below, given the shapes as indicated. The diagonal of the rectangle is 10.
