9.2 Worksheet

Posljednje ažuriranje about 4 years ago

41

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

For the next 8 questions, using the diagram below, identify the given arc as a minor, major, or a semicircle.

null

1

1

1

1

1

1

1

1

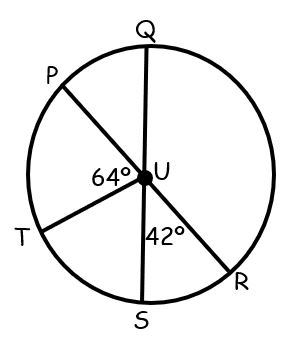

Use the diagram below for the next 10 questions.

PR and QS are diameters of Circle U. Find the measure of each indicated arc.

null

1

1

1

1

1

1

1

1

1

1

Pitanje 19

19.

In the diagram below, Arc PQ has a measure of 90^o in Circle R. Find the length of segment PQ. Round your answer to the nearest tenth.

Pitanje 20

20.

In the diagram below, Arc PQ has a measure of 90^o in Circle R. Find the length of segment PQ. Round your answer to the nearest tenth.

Pitanje 21

21.

In the diagram below, find the measure of arc AC.

Pitanje 22

22.

In the diagram below, find the measure of arc ACB.

Pitanje 23

23.

In the diagram below, find the measure of arc DAB.

Pitanje 24

24.

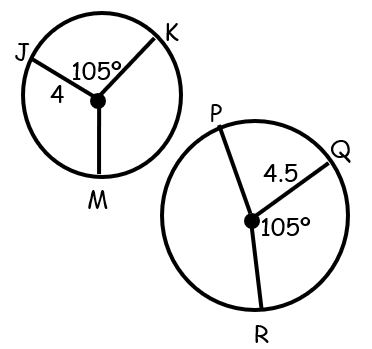

Using the diagram below, tell whether arcs JK and QR are congruent.

Yes

No

Pitanje 25

25.

Using the diagram below, tell whether arcs AB and CD are congruent.

Yes

No

Pitanje 26

26.

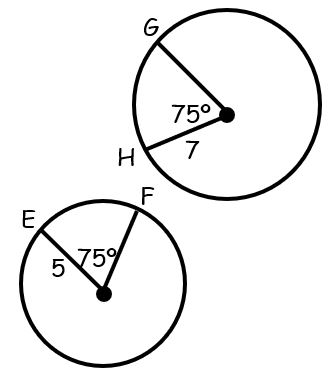

Using the diagram below, tell whether arcs EF and GH are congruent.

Yes

No

Pitanje 27

27.

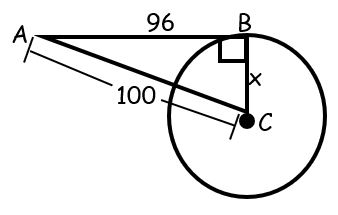

In the diagram below, BC is a radius of Circle C, and AB is a tangent line. Find the value of x.

Pitanje 28

28.

In the diagram below, BC is a radius of Circle C, and AB is a tangent line. Find the value of x.

Pitanje 29

29.

In the diagram below, BC is a radius of Circle C, and AB is a tangent line. Find the value of x.

Pitanje 30

30.

Using the diagram below, determine if AB is tangent to Circle C at point B.

Yes

No

Pitanje 31

31.

Using the diagram below, determine if AB is tangent to Circle C at point B.

Yes

No

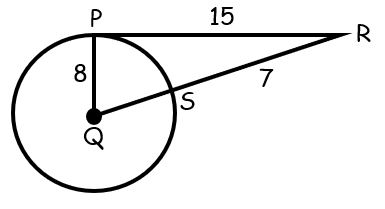

Use the diagram below for the next 2 questions.

null

1

Pitanje 32

32.

What is the measure of QS?

1

Pitanje 33

33.

Is PR tangent to Circle Q?

Yes

No

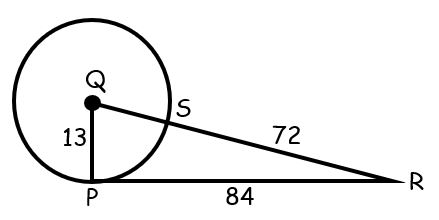

Use the diagram below for the next 2 questions.

null

1

Pitanje 34

34.

What is the measure of QS?

1

Pitanje 35

35.

Is PR tangent to Circle Q?

Yes

No

Pitanje 36

36.

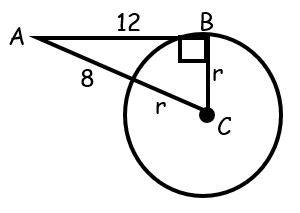

In the diagram below, AB is tangent to Circle C at point B. Find the value of r.

Pitanje 37

37.

In the diagram below, AB is tangent to Circle C at point B. Find the value of r.

Pitanje 38

38.

In the diagram below, AB is tangent to Circle C at point B. Find the value of r.

Pitanje 39

39.

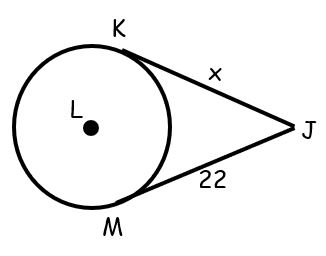

In the diagram below, JK and JM are both tangent to Circle L. Find the value of x.

Pitanje 40

40.

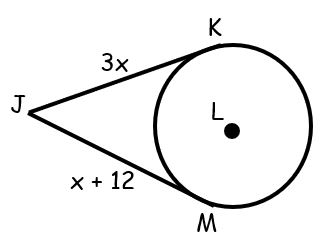

In the diagram below, JK and JM are both tangent to Circle L. Find the value of x.

Pitanje 41

41.

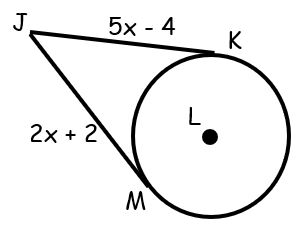

In the diagram below, JK and JM are both tangent to Circle L. Find the value of x.

Pitanje 1

1.

Arc AB

Minor

Major

Semicircle

Pitanje 2

2.

Arc EAC

Minor

Major

Semicircle

Pitanje 3

3.

Arc CAD

Minor

Major

Semicircle

Pitanje 4

4.

Arc BE

Minor

Major

Semicircle

Pitanje 5

5.

Arc AE

Minor

Major

Semicircle

Pitanje 6

6.

Arc ACD

Minor

Major

Semicircle

Pitanje 7

7.

Arc DEB

Minor

Major

Semicircle

Pitanje 8

8.

Arc DEC

Minor

Major

Semicircle

Pitanje 9

9.

Arc PQ

Pitanje 10

10.

Arc ST

Pitanje 11

11.

Arc TPS

Pitanje 12

12.

Arc RT

Pitanje 13

13.

Arc RQS

Pitanje 14

14.

Arc QR

Pitanje 15

15.

Arc PQS

Pitanje 16

16.

Arc TQR

Pitanje 17

17.

Arc PS

Pitanje 18

18.

Arc PTR
