9-12 Unit 2 Mixed Practice

star
star
star
star
star
Last updated about 3 years ago
22 questions
1
1
1
1
1
1
Question 4
4.

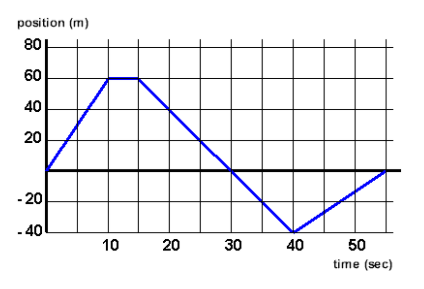

What is the velocity of the object from 0 to 10 seconds?

1
Question 5
5.

What is the velocity of the object from 10 to 15 seconds?

1
1
1
1
1
Question 10
10.

What was the acceleration of the object from 5 to 10 seconds?

1
1
1
Question 14
14.

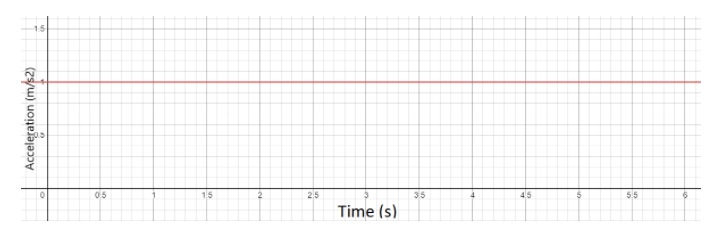

Using the AT Graph, what is the speed of the object at t = 2.5 s if the object was initially at rest?

Question 15
15.

Using the AT Graph, what is the speed of the object at t = 5 s if the object was started with a speed of 10 m/s?

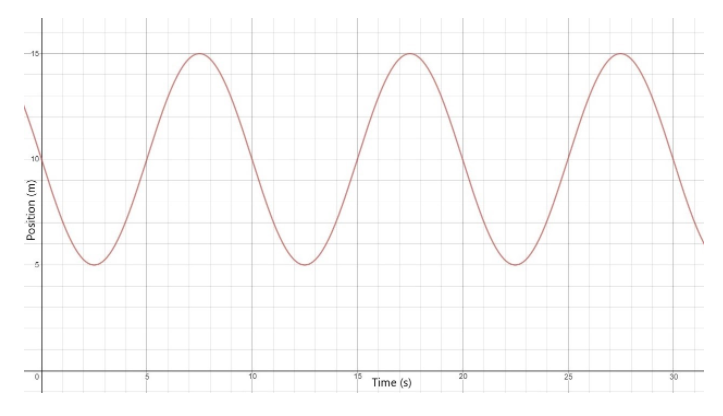

Reading a Motion Detector PT Graph

When walking towards and away from a motion detector, we get a pretty interesting graph, one that looks like a wave! We read this kind of PT graph much the same way as reading a normal PT graph. The slope is still the velocity. Curved areas still show accelerations. The only new thing is the wave-like shape.
Use this Motion Detecto PT graph to answer the following questions. NOTICE: the motion detector will always be located where the position is 0 meters.

2
2
3
2
2
2
2
Question 22
22.

What is the velocity of an object at the moment it changes directions? Think about the slope of the line right at the moment it's changing directions.

Question 1
1.

During which intervals did the object travel in a positive direction?

Question 2
2.

During which intervals did the object travel in a negative direction?

Question 3
3.

During which intervals did the object not move?

Question 6
6.

What is the velocity of the object from 25 to 35 seconds?

Question 7
7.

During which intervals is the object moving with a constant velocity?

Question 8
8.

During which intervals is the object moving with a positive acceleration?

Question 9
9.

During which intervals is the object moving with a negative acceleration?

Question 11
11.

What was the acceleration of the object from 12 to 18 seconds?

Question 12
12.

What was the acceleration of the object from 34 to 42 seconds?

Question 13
13.

Draw the corresponding PT graph

Question 16
16.

Where is the motion detector located?

Question 17
17.

At what times is the object moving away from the motion detector?

Question 18
18.

At what times is the object moving toward the motion detector?

Question 19
19.

At what time is the object the slowest? Remember the slope of the line is the velocity on a PT graph.

Question 20
20.

At what time is the object the fastest? Remember the slope of the line is the velocity on a PT graph.

Question 21
21.

At what time is the object changing direction?
