22-23 Rollercoaster Energy
star
star
star
star
star
Last updated almost 3 years ago
21 questions
Note from the author:
5

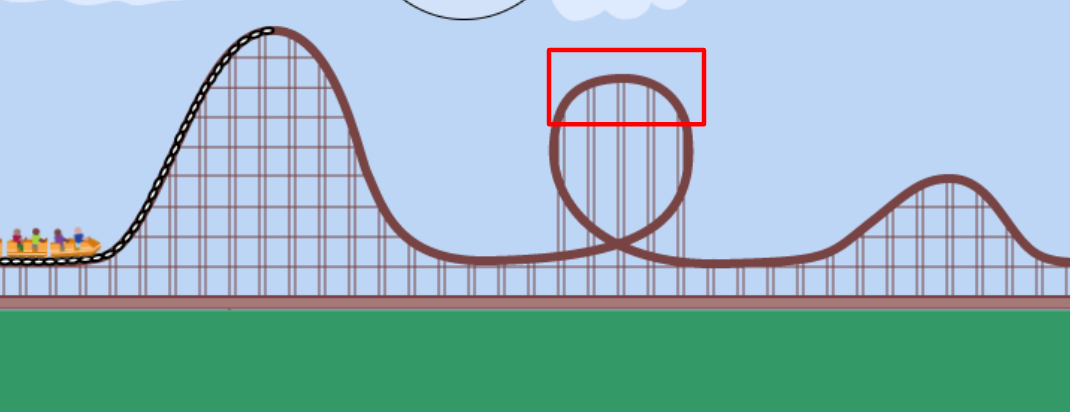

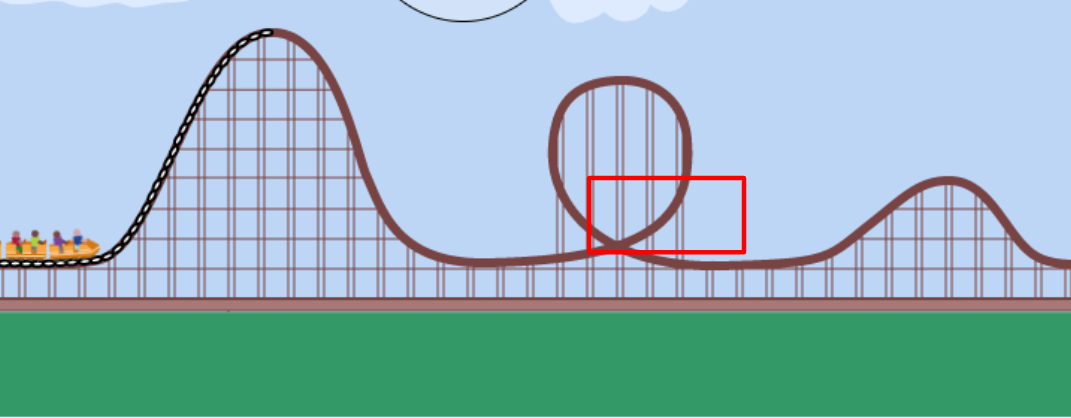

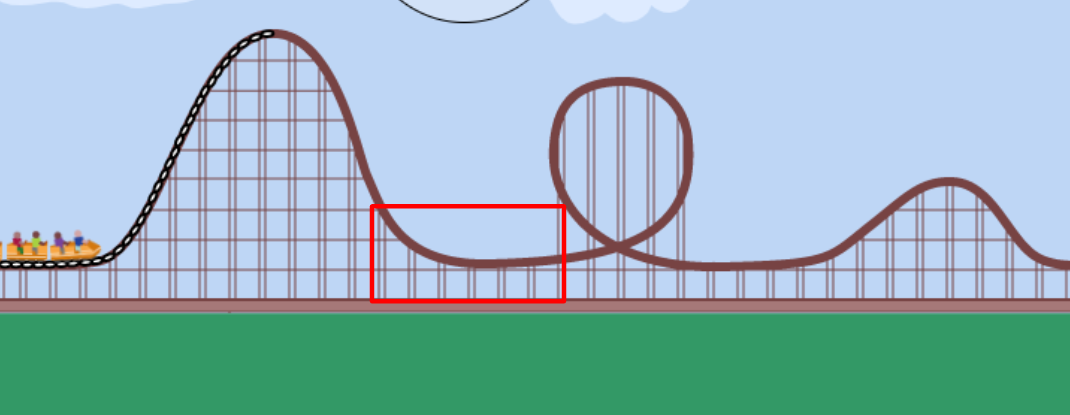

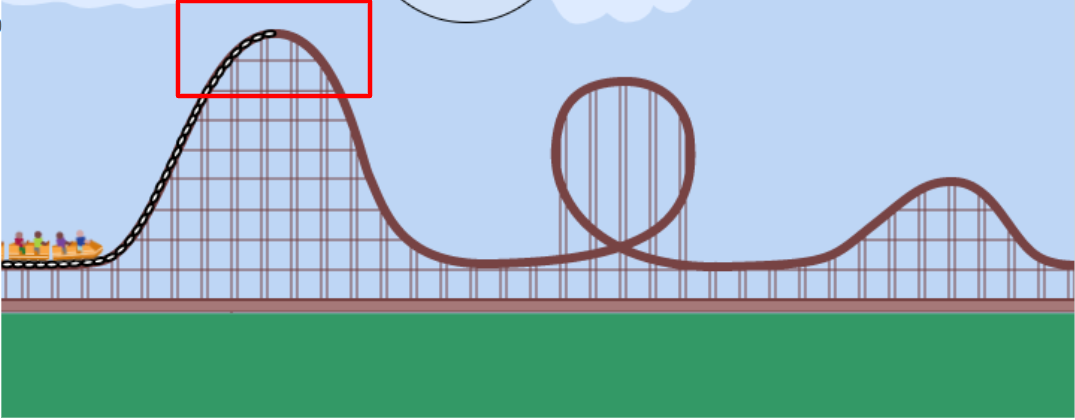

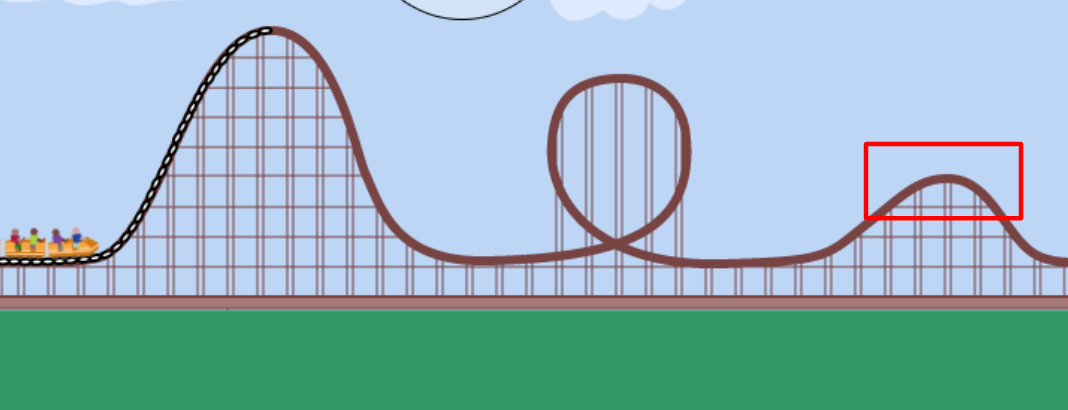

Match each stop with the correct energy pie graph
Match each stop with the correct energy pie graph
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
Stop 6 | arrow_right_alt | |
Stop 1 | arrow_right_alt | |
Stop 2 | arrow_right_alt | |
Stop 3 | arrow_right_alt | |
Stop 4 | arrow_right_alt |
1
Where is Potential energy the greatest?
Where is Potential energy the greatest?
1
Where is Potential energy the least?
Where is Potential energy the least?
1
Where is Kinetic energy the greatest?
Where is Kinetic energy the greatest?
1
Where is Kinetic energy the least?
Where is Kinetic energy the least?
1
Where is velocity the highest?
Where is velocity the highest?
1
What is the total Mechanical Energy (ME)?
What is the total Mechanical Energy (ME)?
1

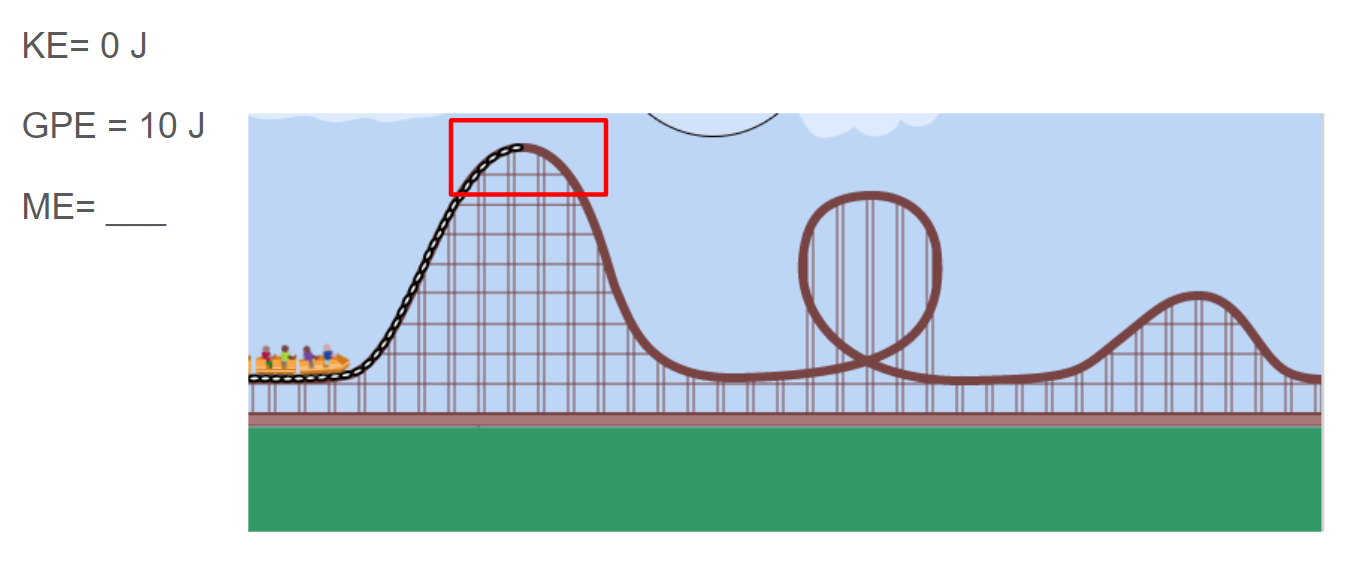

What is the ME?
What is the ME?
1

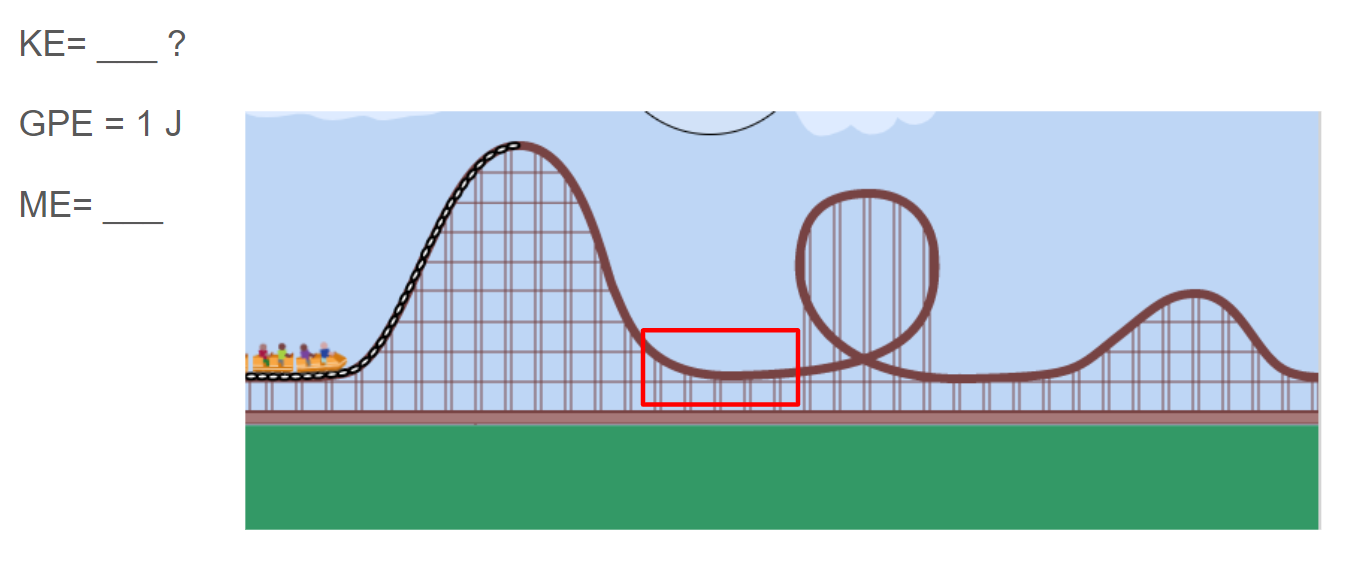

What is the KE?
What is the KE?
1
What is the ME?
What is the ME?
1
What is the GPE?
What is the GPE?
1
Write a general rule about GPE and when it's the highest/lowest.
Write a general rule about GPE and when it's the highest/lowest.
1
Write a general rule about KE and when it's the highest/lowest.
Write a general rule about KE and when it's the highest/lowest.
1
Write a general rule about velocity and when it's the highest/lowest.
Write a general rule about velocity and when it's the highest/lowest.
1
Write a general rule about ME and when it's the highest/lowest.
Write a general rule about ME and when it's the highest/lowest.
1
Write a general rule about GPE vs. KE.
Write a general rule about GPE vs. KE.
1
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's GPE at the top of the slide?
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's GPE at the top of the slide?
1
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's ME?
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's ME?
1
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's GPE at the bottom of the slide?
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's GPE at the bottom of the slide?
1
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's KE at the bottom of the slide?
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's KE at the bottom of the slide?
1
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's velocity at the bottom of the slide?
A 20 kg toddler at the top of a 2 m slide begins to slide down. What is the toddler's velocity at the bottom of the slide?
