In the Decisions lessons, you will learn how to program the robot to make decisions and repeat sequences of commands.

Install It

Before continuing, ensure that your computer has the EV3 Classroom app installed.

🔧 Build It

Before you continue, ensure that you have completed the following builds:

Color Cube (aka Cuboid)

Base Unit (aka Driving Base)

Ultrasonic Sensor

Medium Motor Arm

Color Sensor (aka Color Sensor Down)

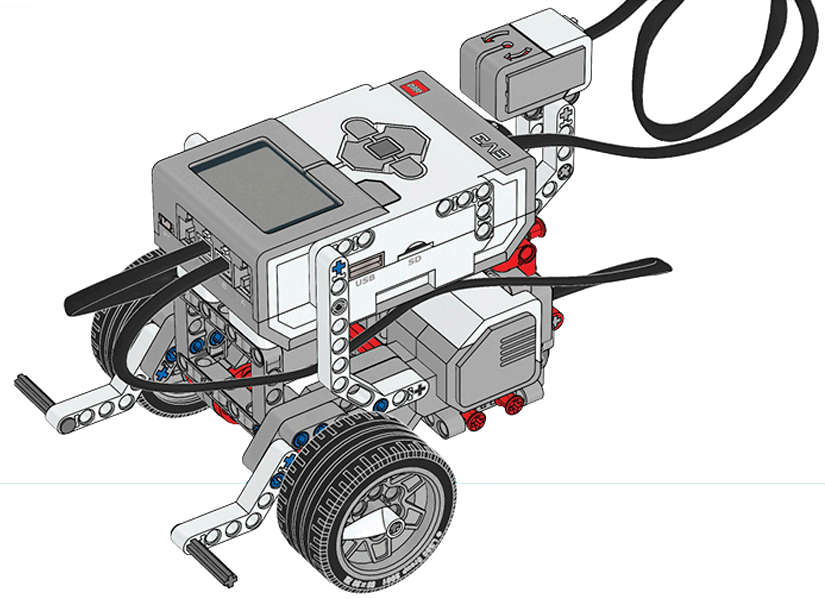

Gyro Sensor

🔁 Introduction to Repeated Decisions

🎓 Learn It

Carefully read and/or watch the instructional media and respond to the related questions.
10

What is the difference between this version of the Orchard Challenge and the original version in the Turning Chapter?

🚧 Obstacle Detection Failures

In this lesson, we will look at some ways of thinking about obstacle detection that seems to make sense… but don't actually work!  The task in obstacle detection is simple: go a certain distance without hitting anything.  More specifically, let's try to:
  • Make the robot go 4 rotations (moving when the robot’s path is clear)
  • And stopping when there is something in its way

[Attempt 1] Step 1: Add Move Block

The main goal here is to move for four rotations, so let's try starting with a new Project, and adding a “move [forward]” Block for 4 rotations.


[Attempt 1] Step 2: Add Wait Until Distance Block

And we need to wait for the way to be clear, so add a “wait until [distance], set to less than 10 centimeters.


[Attempt 1] Step 3: Add Exit Block

Add an Exit block at the bottom of the program.


[Attempt 1] Step 4: Rename Project

Now, rename this program as "ObstacleAttempt1".


[Attempt 1] Step 5: Download and Run

Run your program with no obstacles in front of it. It should end up going 4 rotations. Now run your program with an obstacle in front of it.

....Well, that certainly didn't work!

[Attempt 1] Breakdown:

And it shouldn't if you think about it. In this program, we told the robot to go forward for 4 rotations. And it did. The “move [forward]” block had the program's full attention for all four of those rotations, leaving it no way to get to any blocks that would even attempt to check the Ultrasonic Sensor.

The big 4 rotation “move” block doesn't work because it keeps control of the program too long, preventing any other blocks (like a Sensor Wait or If/Then/Else) from getting a chance to do anything.

[Attempt 2] Step 1: Add Move Block

So let's try a different approach. Let's have the robot “start moving forward” until it sees an object, then stop until it sees no object, and repeat that over and over. Start a new Project, and add a “start moving” Block set to “straight”.


[Attempt 2] Step 2: Add Wait Until Distance Block

Then a “wait until distance” Block set to “less than”, 10 centimeters.


[Attempt 2] Step 3: Add Stop Moving Block

Then we want to stop the motors. Add a “stop moving” block.


[Attempt 2] Step 4: Add Another Wait Until Distance Block

Add another “wait block” and a “wait until distance” Block set to “greater than”, 10 centimeters.


[Attempt 2] Step 5: Add Repeat Until Loop

Now, add a “repeat until” loop that covers the stack of blocks.


[Attempt 2] Step 6: Add Greater Than Operator Block

We want to wait until the robot has gone a certain distance. To do this, we have to use a green Operator block that compares two values. The one we want checks if one value is greater than another value:


[Attempt 2] Step 7: Add Degrees Counted Block

The first value we want to put in is the amount the wheels have turned. We can get that from the blue Motors palette. Add a “degrees counted” set to motor B (one of the two motors that are moving forward - the other is motor C).


[Attempt 2] Step 8: Set Second Value

We want to go forward until the robot is “greater than” a certain number of rotations. Let’s use 4 rotations. However, the operator is checking for a number of degrees. So we need to calculate rotations to degrees. To do this we need to multiply 4 (rotations) by 360 degrees. So: 4 x 360 = 1440 degrees Type in “1440” into the second value of the operator block.


[Attempt 2] Step 9: Add Exit Block

Add an Exit block at the end of the program.


[Attempt 2] Step 10: Rename Project

Rename your project as "ObstacleAttempt2".


[Attempt 2] Step 11: Download and Run

Now download and run the program! The program responds to an obstacle and starts moving again when the obstacle is removed, and the Wait for Ultrasonic behaviors can detect the object’s presence, and absence, and let the appropriate stop-and-go behaviors run.

However, because the Rotations Loop only checks the Rotation Sensor at the end of the Loop, the way that the Wait Blocks hold up the program still causes a problem. While the program is “waiting” for the Ultrasonic Sensor value to drop or rise, it can’t be checking the Rotation Sensor, and so the robot may miss its cue to stop. In both of these two cases, the problem is the same: some blocks are holding up the program flow, preventing it from reaching other blocks that need to check the other sensor. In the next lesson, you will re-examine the obstacle detection problem, and learn how to construct a program that uses rapid checks, rather than long waits, to ensure continuous program flow.

🚧 Obstacle Detection

In this lesson, you will rethink Obstacle Detection in terms of "repeated decisions" like the ones you used to complete the Strawberry Plant Sorter. The two requirements of our Obstacle Detection task – moving 4 rotations and moving only when the way is clear – are fundamentally linked.

Both have to occur at the same time. Checking Rotations can't block out checking for obstacles, and checking for obstacles can't block out Rotations. But, that blocking is exactly what is happening.

We can't solve this problem without changing the way we look at the task. So far, we've been looking at this as a single, large movement with two things happening at once.

Instead, let's try taking turns, quickly! We'll break the big movement down [break arrow] into a series of tiny movements and give both the Ultrasonic Sensor and the Rotation Sensor a chance to make their decisions in each tiny movement.

We'll base this program on the pattern we used in the last chapter to make repeated decisions: an If/Then/Else inside a “repeat until” loop.

In each tiny movement, the robot will look in front of it to see whether the way is clear, and based on that decision, flip the motors on, or off.

The robot will repeat that decision as long as its Rotation Sensor value has not passed 4 rotations yet (or 1440 degrees). So, the robot will check its sensor and run its motors if the way is clear. Then loop around, check again, and run the motors if it is clear. It will repeat this until eventually the robot will pass 4 rotations (1440 degrees), and will then move on to the next behavior which is the end of the program.

If at any point, the robot encounters an obstacle, the If/Then/Else will issue “stop moving” commands instead, while continuing to loop.

It will issue lots of “stop moving” commands, until the obstacle is removed, and the Ultrasonic Switch will start ending up on the On branch again.

Let's put that into code.

Step 1: Create Project

Create a new Project.


Step 2: Add If/Then/Else Block

Start with the If/Then/Else Block.


Step 3: Add Ultrasonic Sensor Condition

Add an Ultrasonic Sensor “is distance less than” block for the condition. Set the comparison type to less than (<) 10 centimeters.


Step 4: Add Move Block to Top Branch

Now, in the top branch (meaning there is an object less than 10 centimeters away), add a “stop moving” block to stop the robot if it does detect an object.


Step 5: Add Move Block to Bottom Branch

In the bottom branch (meaning there is NOT an object less than 10 centimeters away), add a “start moving” block set to straight.


Step 6: Add Repeat Until Block

Now, add a “repeat until” to the program so that it covers all of the blocks.


Step 7: Add Greater Than Operator Block

Now add a green “is greater than” Operator block that compares two values.


Step 8: Add Degrees Counted Block

Add a “degrees counted” set to motor B.


Step 9: Set Second Value

Type in “1440” into the second value of the operator block (the equivalent of 4 rotations).


Step 10: Add Exit Block

Add an Exit Block at the end of the program.


Step 11: Rename Project

Rename the project “ObstacleDetection”.


Step 12: Download and Run

Download and run your program. Place your hand in front of the robot while it is running, and remove it. Repeated decisions allow your robot to check each sensor in turn, without either one of them blocking the other. The program checks, responds, and repeats quickly, as long as no command blocks any other.
10

Instead of thinking about the four-rotation Obstacle Detection as one big movement, it is best to think about it as…What will the robot do if it does NOT sense an object 25cm away?

10

How do repeated decisions allow the robot to watch both sensors at once?

🏆 Mini-Challenge:


🚧 Obstacle Detection Until Black

Program the robot to move a line, avoiding any obstacles in front of it!

Using repeated behaviors, program the robot to move from a starting zone to an end line. In between the start and the end is a randomly placed object. As the robot moves towards the line, it should stop in front of the object until it is removed. When removed, the robot should continue toward the line.
100
20

📸 Document It: Capture a screenshot (or multiple screenshots) of your completed program and upload or paste it onto the Formative canvas.

20

⬆️ Upload It: Upload your completed program.

🏆 Challenge:


🚜 Obstacle Orchard


Challenge Overview

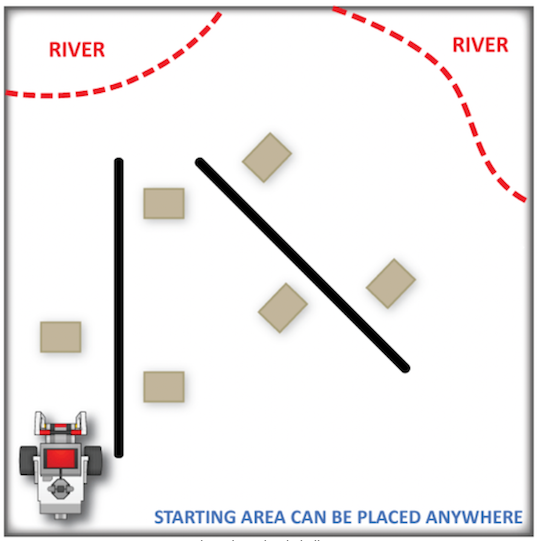

For this challenge, program the robot to move from its starting area through TWO rows of trees. The robot must pass along both sides of each row during its run. In addition, however, there will be one or more obstacles placed at random throughout the orchard. The robot should not touch these obstacles; instead, when it encounters one, it should stop moving until they are removed by hand. Only then, the robot should resume throughout the orchard.


🏅 Need More of a Challenge? Obstacle Orchard Level 2

For this challenge, program the robot to move from its starting area through THREE rows of trees. The robot must pass along both sides of each row during its run. In addition, however, there will be one or more obstacles placed at random throughout the orchard. The robot should not touch these obstacles; instead, when it encounters one, it should stop moving until they are removed by hand. Only then, the robot should resume throughout the orchard.


Challenge Details

Rules and Procedures:
  1. This challenge uses the same game board layout as the Orchard Challenge from Chapter 2 (Turning).
  2. Like the previous challenge, the robot can start anywhere there is space available.
  3. Place one to two obstacles randomly alongside a side of a row for the robot to encounter.
  4. Be aware to not place an obstacle where the robot may bump into when turning a corner.
  5. When the robot encounters an obstacle, it should stop and wait for the Obstacle to be removed by hand. It should then continue moving without additional human intervention.

Hints:
  • Use a meter stick or ruler to measure the distances to each line on the board so you know how far you need to move each time.
  • The obstacle can be completely removed from the challenge after the robot approaches it and stops.
  • Use lower speeds to minimize of effects of momentum when turning.
🌐 A virtual version of this challenge is available HERE.
100
20

📸 Document It: Capture a screenshot (or multiple screenshots) of your completed program and upload or paste it onto the Formative canvas.

20

⬆️ Upload It: Upload your completed program.

10

🧠 Retrieval Practice:
Summarize the content of this lesson. What topics, ideas, and vocabulary were introduced?
