Conceptual 4-2 (C)
star
star
star
star
star
Last updated over 2 years ago
8 questions
Note from the author:
Required
1

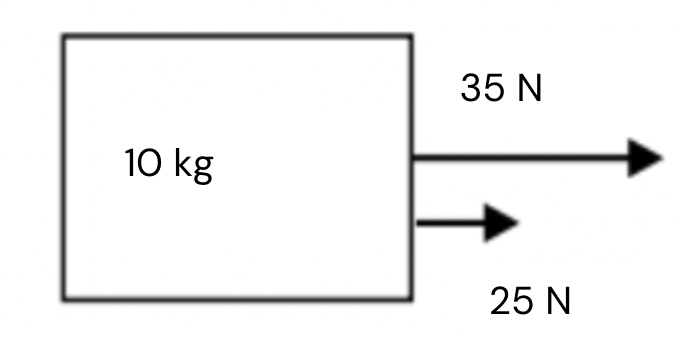

The net force on this object is:(include units and directions)
The net force on this object is:
(include units and directions)
Required
1
Which means this object's acceleration is:
Which means this object's acceleration is:
1

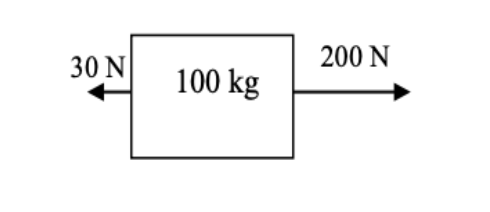

The net force on this object is:
The net force on this object is:
1
Which means this object is accelerating at a rate of:
Which means this object is accelerating at a rate of:
1
What is the mass of a shopping cart if it takes a net force of 32 N to accelerateit at a rate of 0.88 m/s2?
What is the mass of a shopping cart if it takes a net force of 32 N to accelerate
it at a rate of 0.88 m/s2?
Required
1

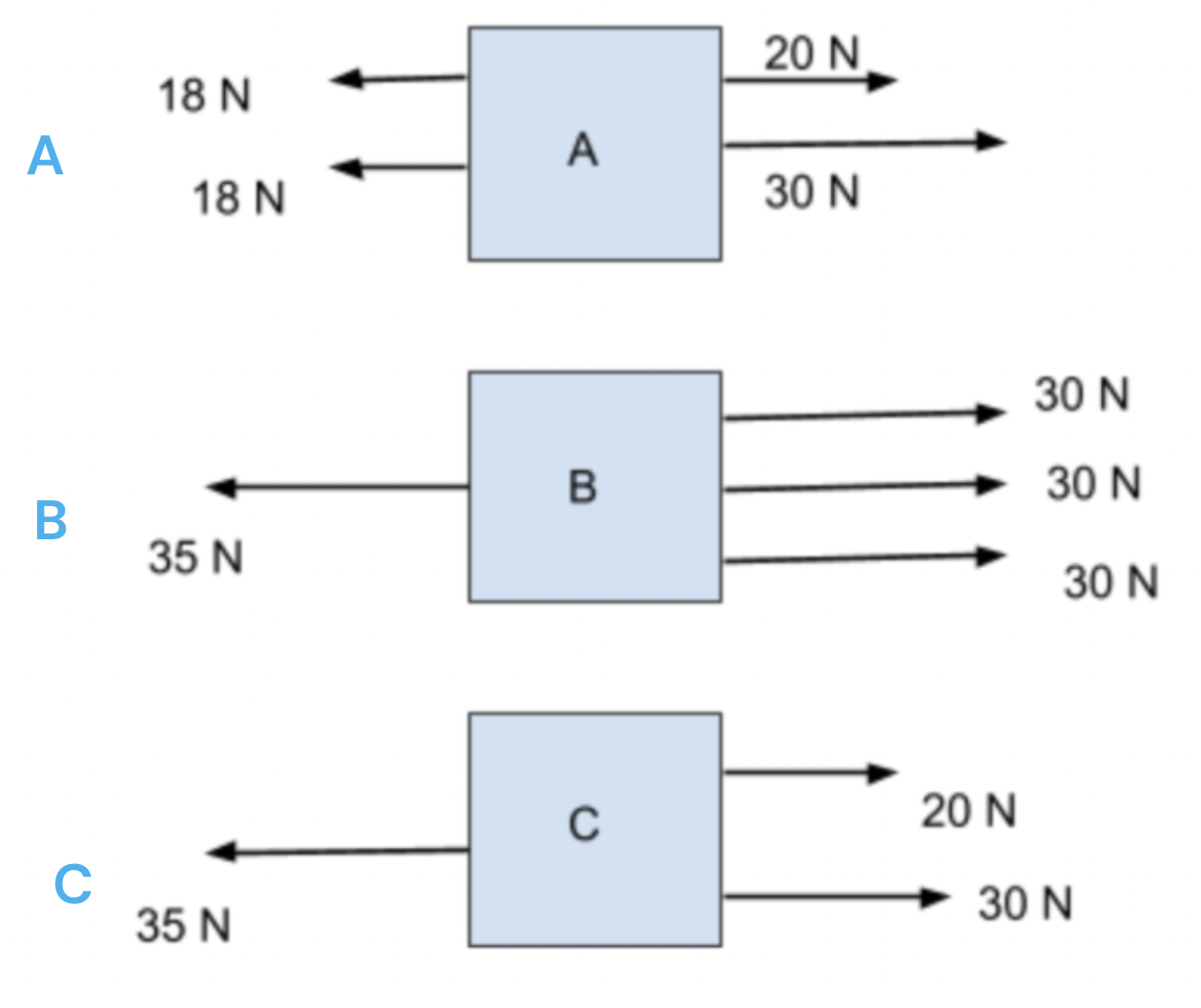

Given the forces acting on these objects, which box is going to accelerate the most?
Given the forces acting on these objects, which box is going to accelerate the most?
Required
2
Draw a free body diagram for you, as you are sitting in your chair right now. Include all the forces that you think are acting on you.
Draw a free body diagram for you, as you are sitting in your chair right now. Include all the forces that you think are acting on you.
Required
2
You are pushing a couch across a carpeted floor. Draw a free body diagram for the couch, including all forces that you think are acting on it.
You are pushing a couch across a carpeted floor. Draw a free body diagram for the couch, including all forces that you think are acting on it.
