Copy of OPS Math 8 Topic 6A Summative Assessment (8/9/2024)

Last updated over 1 year ago

12 questions

1

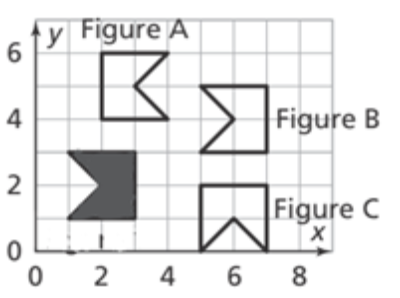

(Level 2) Which figure is a translation of the shaded figure?

1

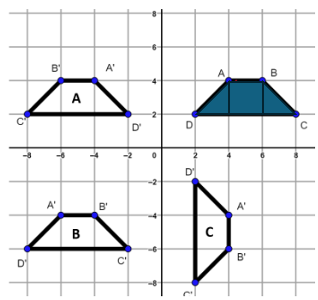

(Level 2) Which figure is a rotation of the shaded figure?

1

(Level 2) Is Figure A congruent to Figure B? Explain.

1

(Level 2) Identify the transformation shown in the diagram.

1

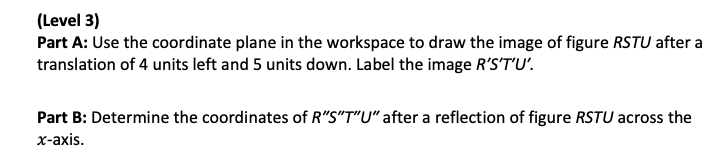

Draw the image of figure RSTU after a translation of 4 units left and 5 units down. Label the image R'S'T'U'.

1

Determine the coordinates of R"S"T"U" after a reflection of figure RSTU across the x-axis.

1

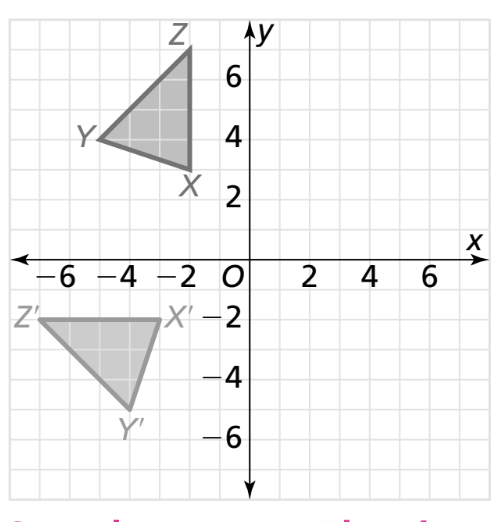

(Level 3) What is the angle of rotation about the origin that maps \vartriangleXYZ to \vartriangleX'Y'Z'?

1

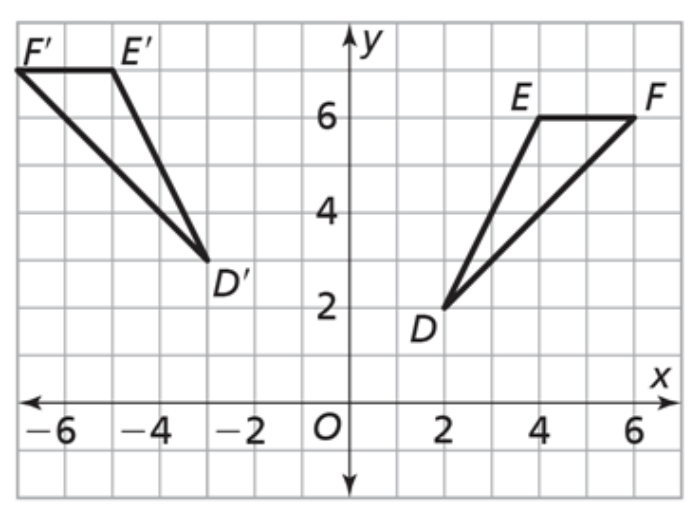

(Level 3) Prove that Figures DEF and D'E'F' are congruent by giving a detailed sequence of transformations that map DEF onto D'E'F'.

1

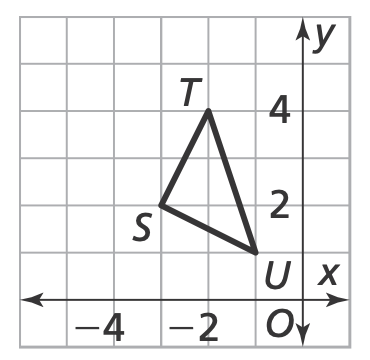

(Level 3) If \vartriangleSTU is reflected over the y-axis, what are the coordinates of the vertices of
\vartriangleS'T'U'?

1

(Level 3) All of the vertices of \vartriangleABC are located in quadrant I. In which quadrant will the vertices of \vartriangleA'B'C' lie after \vartriangleABC is reflected over the x-axis, then reflected over the y-axis, and then rotated 180\degree about the origin?

1

(Level 4) The vertices of figure KLMN are K(1, 1), L(4, 1), M(2, 3), and N(5, 3). If KLMN is reflected across the line y=-1, find the coordinates of vertices K', L', M', and N'.

1

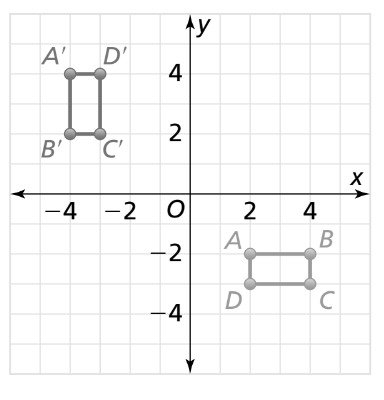

(Level 4) Describe a sequence of transformations that maps quadrilateral ABCD onto A'B'C'D'.
