Circuits Honors

Last updated about 2 years ago

10 Nsɛmmisa

Akwankyerɛ

null

1

1

1

1

1

1

1

1

Asemmisa {{asɛmmisaAhyɛnsode}}

1.

What is the resistance of a 100 Ω , a 2500 Ω, and a 4000 Ω resistor connected in series?

Asemmisa {{asɛmmisaAhyɛnsode}}

2.

What is the resistance of a 100 Ω , a 2500 Ω, and a 4000 Ω resistor connected in parallel?

Asemmisa {{asɛmmisaAhyɛnsode}}

3.

What is the resistance of ten 275 Ω resistors connected in series?

Asemmisa {{asɛmmisaAhyɛnsode}}

4.

What is the resistance of ten 275-Ω resistors connected in parallel?

Asemmisa {{asɛmmisaAhyɛnsode}}

5.

What is the largest resistance you can obtain by connecting a 36.0-Ω, a 50.0-Ω, and a 700-Ω resistor together?

Asemmisa {{asɛmmisaAhyɛnsode}}

6.

What is the smallest resistance you can obtain by connecting a 36.0-Ω, a 50.0-Ω, and a 700-Ω resistor together?

Asemmisa {{asɛmmisaAhyɛnsode}}

7.

Given a 48.0-V battery and 24.0-Ω and 96.0-Ω resistors, find the current for when connected in series.

Asemmisa {{asɛmmisaAhyɛnsode}}

8.

Given a 48.0-V battery and 24.0-Ω and 96.0-Ω resistors, find the current for when connected in parallel.

1

Asemmisa {{asɛmmisaAhyɛnsode}}

9.

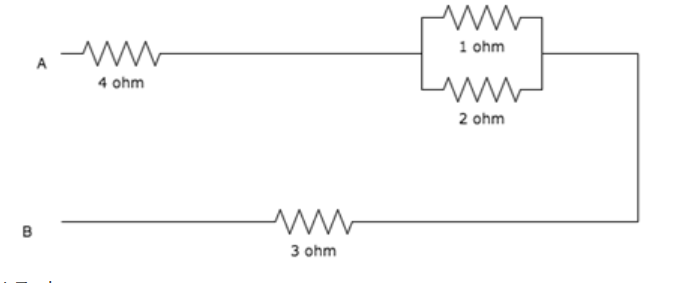

Calculate the total resistance between the points A and B

1

Asemmisa {{asɛmmisaAhyɛnsode}}

10.

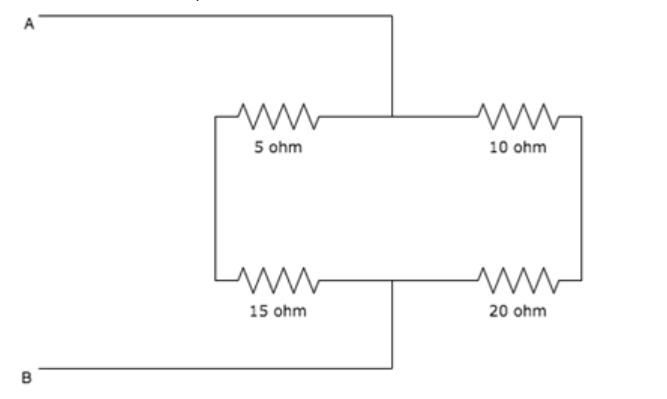

Calculate the equivalent resistance between A and B.
