L3-5 and 3-6 Review

1

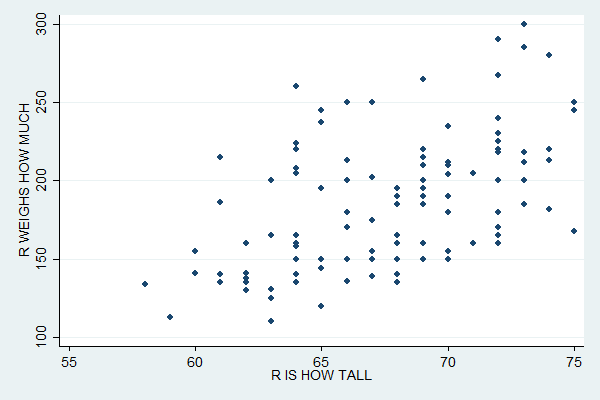

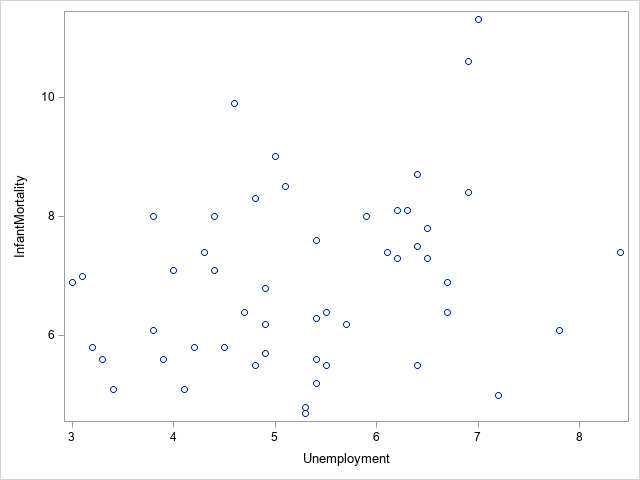

What type of association is shown by the data in the scatter plot?

positive association

negative association

no association

trend association

1

What type of association is shown by the data in the scatter plot?

positive association

negative association

no association

trend association

1

What type of association is shown by the data in the scatter plot?

positive association

negative association

no association

trend association

1

What type of association is shown by the data in the scatter plot?

positive association

negative association

no association

trend association

1

What type of association is shown by the data in the scatter plot?

positive association

negative association

no association

trend association

1

Select all and only the statements that are true of positive associations.

As the x value increases, the y value tends to increase.

As the y value decreases, the x value tends to decrease.

You cannot extrapolate from a positive association.

You can only interpolate in the context of a positive association.

1

Match each definition with the appropriate vocabulary term.

Draggable item		Corresponding Item
Using a trend line to predict (or "theorize") the y-value for an x-value outside the bounds of the actual data.		positive association
		negative association

1

Which equation best models the data shown in the following scatter plot?

y=x-5

y=3x-3

y=x-3

y=3x-5

1

What type of correlation is demonstrated by the data in the table below?

1

Which of the following trend lines best fits the underlying scatter plot data?

1

When Hana goes to the mall, she always buys the same lunch and also buys some books. The total amount of money she spends, y, is a function of the number of books she buys, x. Which of the following statements are true about this function?

The y-intercept is the cost of Hana's lunch.

The slope is the cost of one book.

The y-intercept is the cost of one book.

1

Hana models her spending in the scenario above with the function f(x)=5.5x+11.

A) Use her equation to predict how much she will spend if she buys 8 books.
B) If Hana's original data include purchases of anywhere from 1 to 4 books, is your answer to (A) an example of "extrapolation" or "interpolation"?

1

If a linear regression reveals an r value of -0.62376, what can be said about the correlation?

1

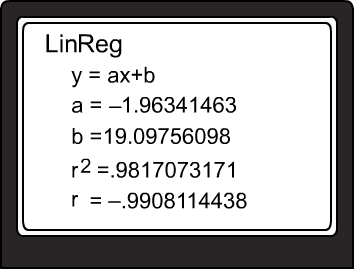

Given the following results from a linear regression on a data set, provide the equation of the line of best fit for the data. Round all constants and coefficients to the nearest tenth.

1

Choose the best explanation for the model described by the residual plot.

The model is a good fit for the data because the residuals are randomly distributed above and below the x-axis

The model is a bad fit for the data because the residuals demonstrate a clear trend.

The model is a bad fit for the data because the residuals are too big.

The model is a good fit for the data because the residuals are clustered around 1.

1

Emmy measures the temperature of some hot water left out in the open at various times while the water cools. She then uses a trend line to theorize what the water's temperature was at the moment between two of her measurements. This is an example of:

extrapolation

interpolation

prediction

best fit

1

Ricardo calculates a line of best fit for a data set with integer x-values 1 through 6. Using a line of best fit with the equation y = –3x + 21 to predict the value of y when x = 10 is an example of:

extrapolation

prediction

interpolation

best fit

1

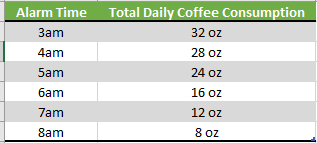

Below is sample data relating the hour at which Mr. Schneider wakes up with the amount of coffee (in fl oz) he drinks throughout the day. Is there a correlation if you model his data with a linear equation? Is there a causal relationship?

There is a positive correlation and a causal relationship.

There is a negative correlation and no causal relationship.

There is a negative correlation and a causal relationship.

1

When a scientist is concerned with the strength of a correlation but not the direction, she may refer to the "r squared" value, r^{2}, which is simply the square of the correlation coefficient, r. Does this make sense? How helpful or harmful is it? Explain your reasoning.

1

Draggable item		Corresponding Item

Draggable item		Corresponding Item
domain		a pair of values associated with a single unit of observation
A point on a line		a visual representation of the solution set of the equation
A line of best fit		An ordered pair of values (x, y) such that those values make the linear equation a true statement.
correlation coefficient		The linear equation which results from a regression (e.g., one that minimizes the sum of the squared residuals)
translation		a number -1\leq r\leq 1 that measures the strength and direction of a correlation
range		a transformation of a function in which every point moves the same distance in the same direction
The graph of a linear equation		the set of all possible inputs of a function
A point on a scatter plot		the set of all outputs of a function
