Conceptual 7-2 (C)
star
star
star
star
star
Last updated over 2 years ago
6 questions
Required
2.5
Match each of the following terms with the variable that represents it:
Match each of the following terms with the variable that represents it:
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
Current | arrow_right_alt | I |
Voltage | arrow_right_alt | V |
Resistance | arrow_right_alt | Q |
Charge | arrow_right_alt | t |
time | arrow_right_alt | R |
1

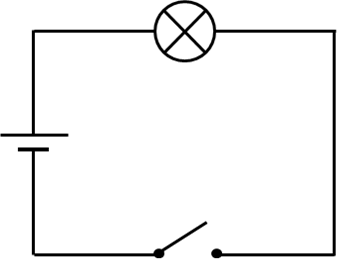

Which part of this diagram shows the lightbulb?
Which part of this diagram shows the lightbulb?
1
Which part of this diagram shows the battery?
Which part of this diagram shows the battery?
Required
1
While plugged into the wall, 210 C of charge pass through your phone every 10 seconds. What is the current running through the wire?
While plugged into the wall, 210 C of charge pass through your phone every 10 seconds. What is the current running through the wire?
2
If a circuit has two 9 Volt batteries and three lightbulbs (each with a resistance of 3 Ω) all connected in series, how much current will be flowing through the circuit?(Hint: draw a diagram if you're confused)
If a circuit has two 9 Volt batteries and three lightbulbs (each with a resistance of 3 Ω) all connected in series, how much current will be flowing through the circuit?
(Hint: draw a diagram if you're confused)
Required
2.5
Match each of the following terms with the correct units
Match each of the following terms with the correct units
| Draggable item | arrow_right_alt | Corresponding Item |
|---|---|---|
time | arrow_right_alt | Amperes |
Current | arrow_right_alt | Volts |
Charge | arrow_right_alt | Coulombs |
Voltage | arrow_right_alt | Seconds |
Resistance | arrow_right_alt | Ohms |
