Naming Points, Lines, and Planes

Last updated over 1 year ago

54 questions

1.8 points

1.8

Question 1

1.

line YW

line RZ

line m

line l

1.8 points

1.8

Question 2

2.

line n

line YW

line RZ

line m

1.8 points

1.8

Question 3

3.

plane RWZ

plane B

plane XYZ

plane RYZ

1.9 points

1.9

Question 4

4.

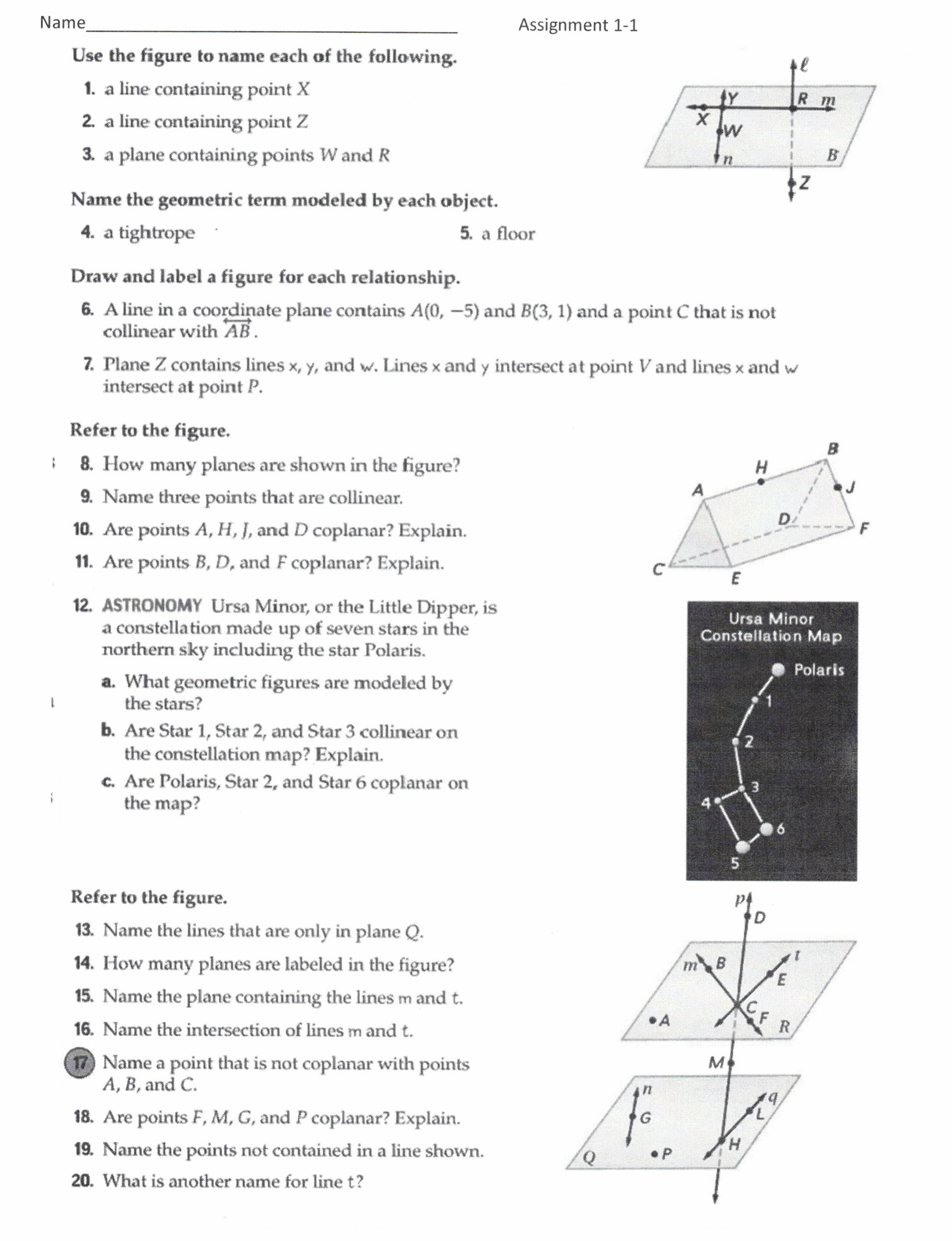

how many planes are shown in the figure?

1.8 points

1.8

Question 5

5.

3 points that are on the same straight line.

E, F, B

A, B, F

A, C, E

A, H, B

1.8 points

1.8

Question 6

6.

are points A, H, J and D coplanar?

Yes. They are all on the same plane

Yes. They are not all on the same plane

No. They are all on the same plane

No. They are not all on the same plane.

1.8 points

1.8

Question 7

7.

name the lines that are only in plane Q.

line n, line q

line m, line t

line p, line m

line q, line t

1.8 points

1.8

Question 8

8.

Name the plane containing the lines m and t.

plane M

plane BEF

plane GLH

plane Q

1.8 points

1.8

Question 9

9.

Name the intersection of lines m and t.

plane HLG

point C

point G

point H

1.8 points

1.8

Question 10

10.

what is another name for line t?

line BF

line EC

line HL

line DH

1.8 points

1.8

Question 11

11.

Point, line or plane? Give one

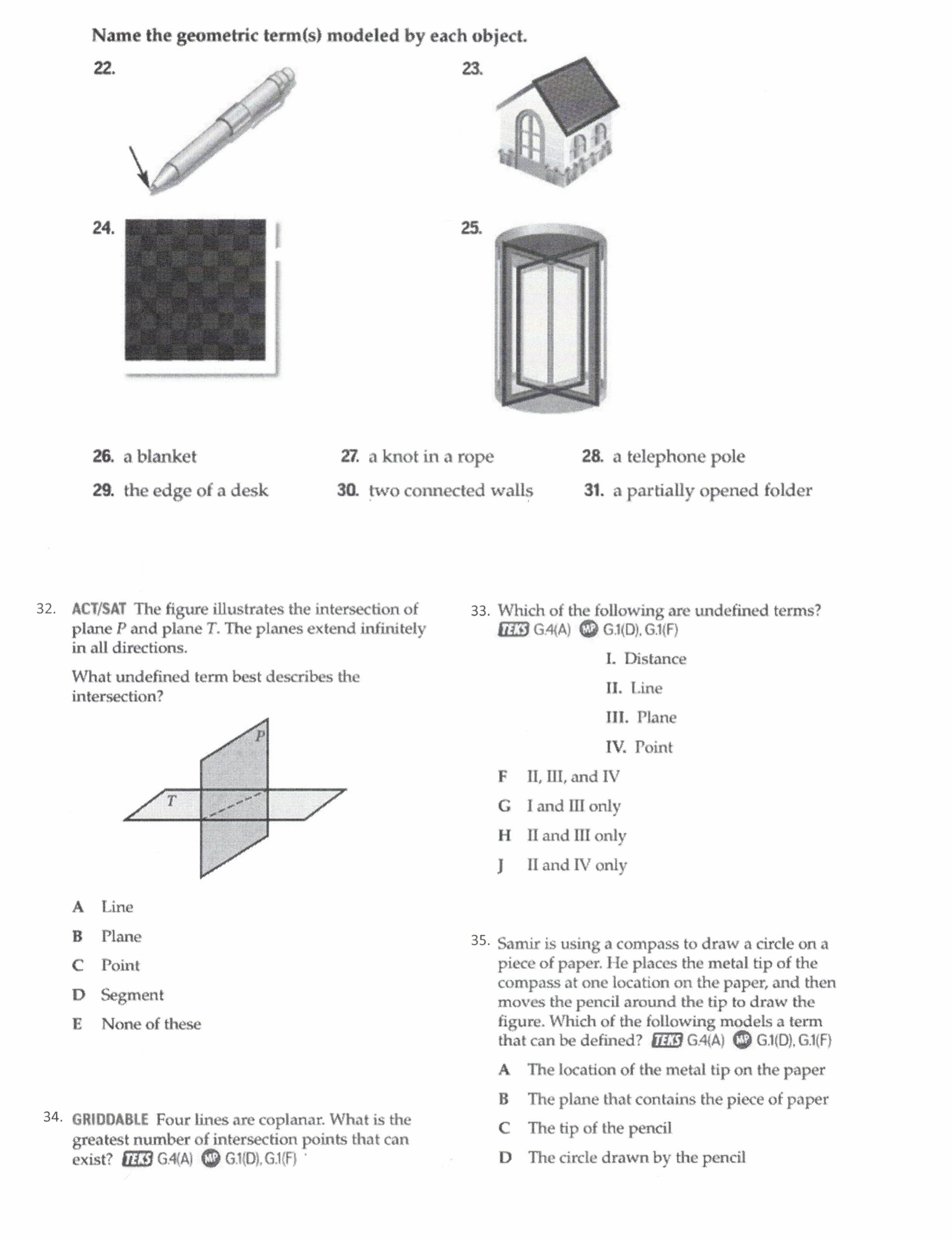

a blanket

Plane

Line

Point

1.8 points

1.8

Question 12

12.

a not in a rope

Line

Plane

Point

1.8 points

1.8

Question 13

13.

a telephone pole

Line

Plane

Point

1.8 points

1.8

Question 14

14.

the edge of a desk

Point

Plane

Line

1.8 points

1.8

Question 15

15.

What undefined term best describes the intersection?

Point

Line

Plane

Segment

None of the Above

18 points

18

Question 16

16.

No

Yes

1.8 points

1.8

Question 17

17.

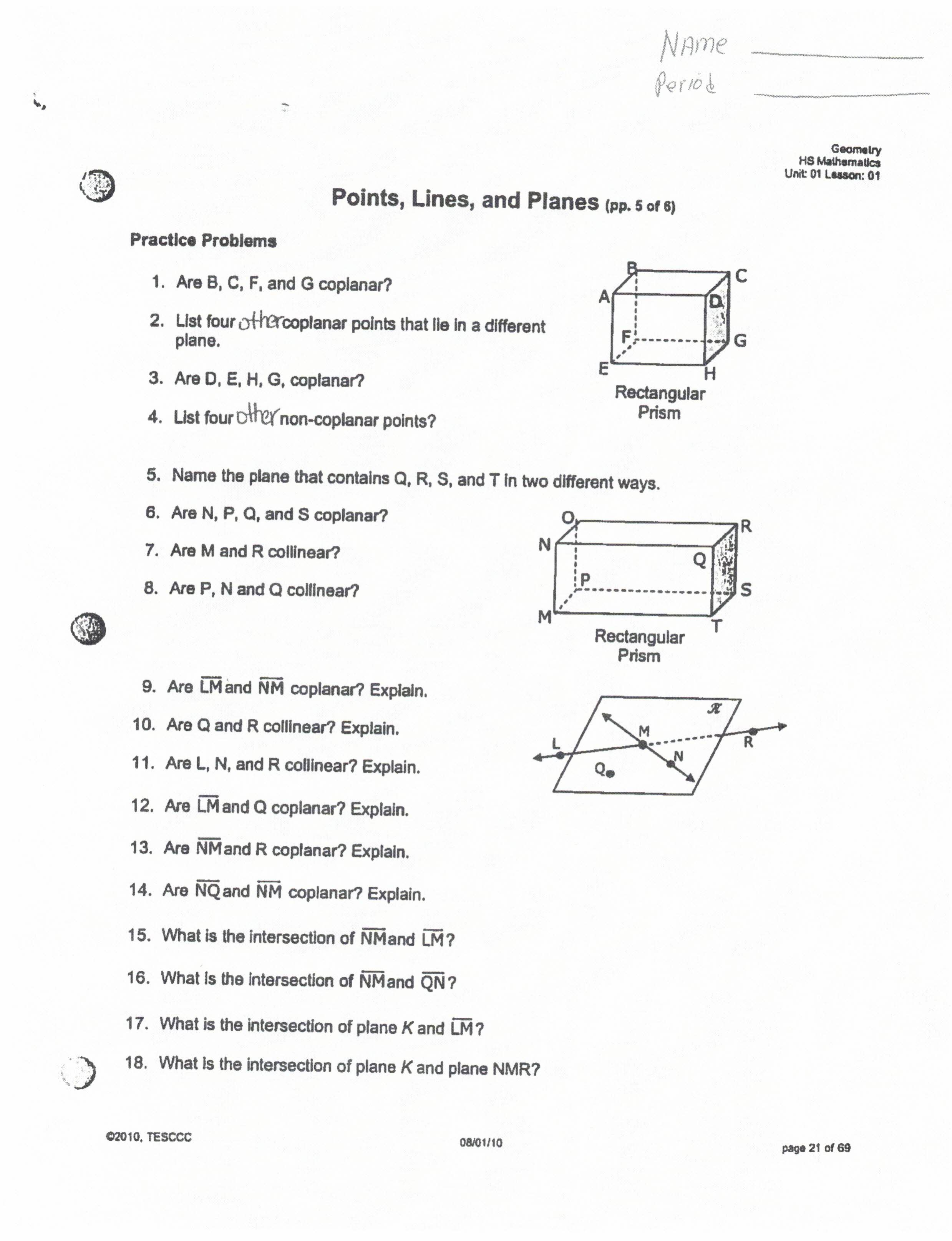

are D, E, H, G coplanar?

No

Yes

1.8 points

1.8

Question 18

18.

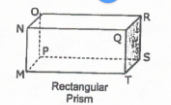

Name the plane that contains Q, R, S and T in two different ways.

plane Q, plane R

plane QRS, Plane QR

plane QRS, plane QRT

plane RT, plane RS

1.8 points

1.8

Question 19

19.

are P, N and Q collinear?

No

Yes

1.8 points

1.8

Question 20

20.

are Q and R collinear?

No. This is the incorrect answer. Dont choose it. 2 points are always collinear.

Yes, any 2 points are always collinear

1.8 points

1.8

Question 21

21.

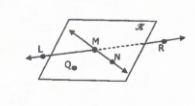

are Line LM and point Q coplanar?

Yes

No

1.8 points

1.8

Question 22

22.

waht is the intersection of line MN and LM?

Point L

Point N

Point M

1.8 points

1.8

Question 23

23.

What is the intersection of line MN and QN?

Point M

Point Q

Point N

Point L

1 point

1

Question 24

24.

What is the intersection of plane K and plane MNR?

line MR

line MRN

line QL

line NM

1.8 points

1.8

Question 25

25.

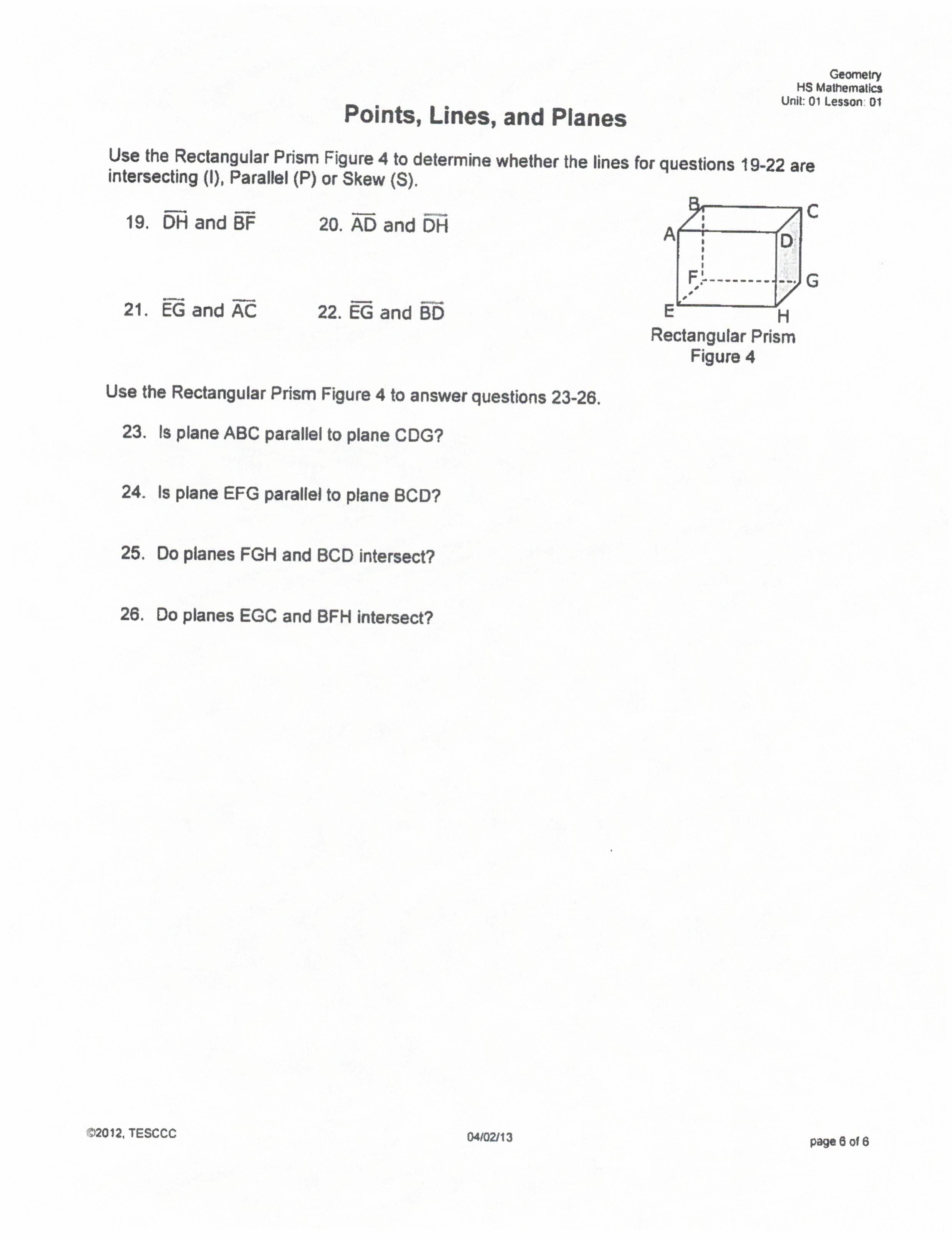

line dh and line bf

Intersecting

Skew

Parallel

1.8 points

1.8

Question 26

26.

line ad and line dh

Skew

Parallel

Intersecting

1.8 points

1.8

Question 27

27.

line eg and line ac

Skew

Parallel

Intersecting

1.8 points

1.8

Question 28

28.

line eg and bd

Intersecting

Skew

Parallel

1.8 points

1.8

Question 29

29.

is plane abc parallel to plane cdg?

No

Yes

1.8 points

1.8

Question 30

30.

is plane efg parallel to plane bcd?

Yes

No

1.8 points

1.8

Question 31

31.

do planes fgh and bcd intersect?

Yes

No

1.8 points

1.8

Question 32

32.

do planes egc and bfh intersect?

No

Yes

1.8 points

1.8

Question 33

33.

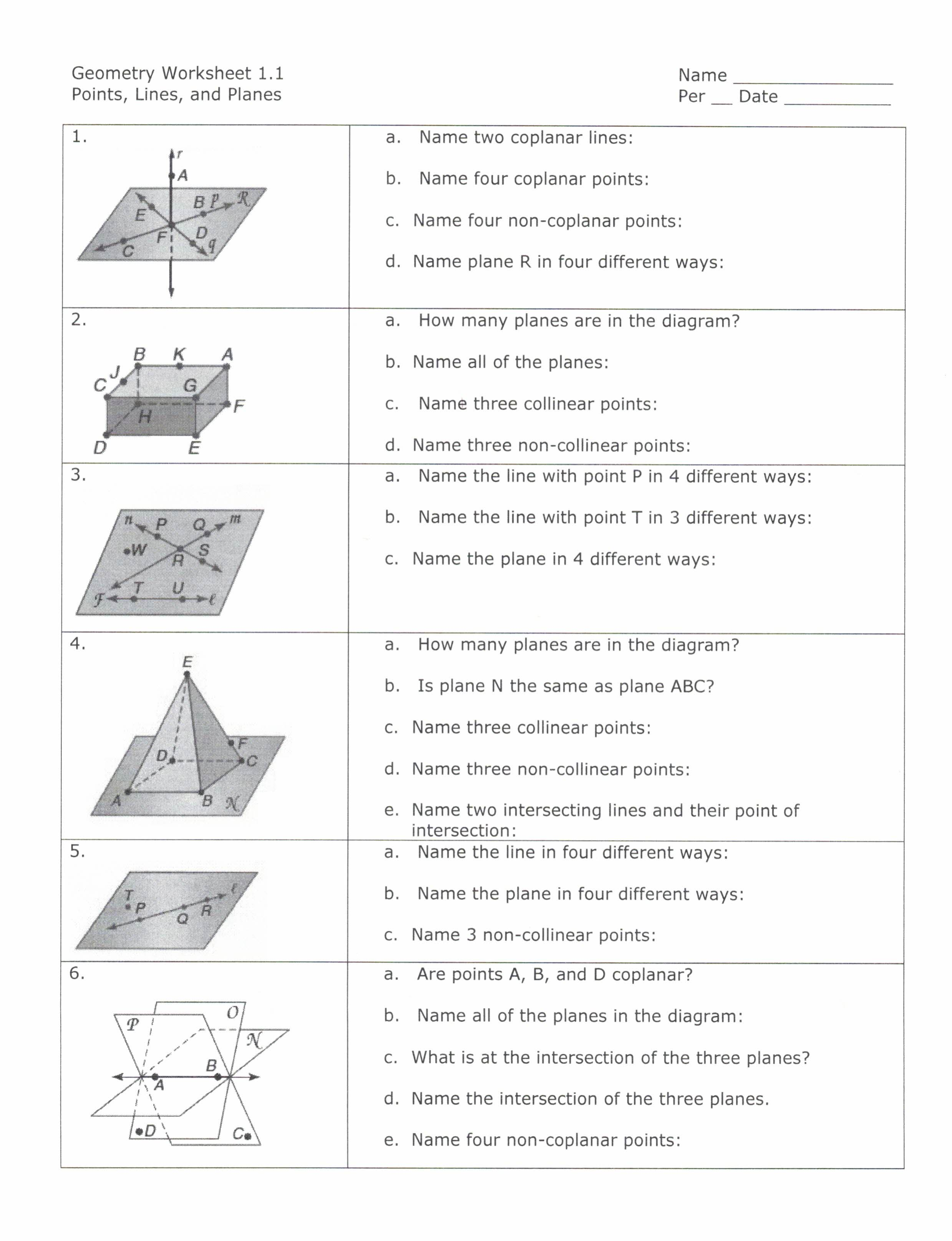

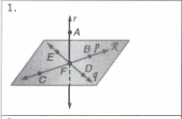

name two coplanar lines.

line r, line q

line p, line q

line AF, line CB

line r, line p

1.8 points

1.8

Question 34

34.

name four coplanar points

A, B, D, F

E, C, F, B

A, E, D, B

A, C, B, D

1.8 points

1.8

Question 35

35.

name four non-coplanar points

A, C, E, D

E, F, B, D

E, C, F, D

E, C, F, B

1.8 points

1.8

Question 36

36.

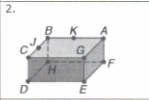

How many planes are in the diagram?

3

2

6

5

1.8 points

1.8

Question 37

37.

name all of the planes

JKG, GEA, CDG, HDE, HFE, CBA

JKA, DEF, GAF, CDB,  BAF, CDE

1.8 points

1.8

Question 38

38.

name three collinear points

D, H, A

E, F, H

J, G, A

J, C, B

1.8 points

1.8

Question 39

39.

name three non-collinear points

G, A, F

B, J, C

J, C, B

1.8 points

1.8

Question 40

40.

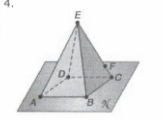

Assume that the bottom of the pyramid and the bigger plane at the bottom are 2 different planes.

4

9

6

8

1.8 points

1.8

Question 41

41.

Name three collinear points

A, E, D

A, B, C

E, F, C

E, C, B

D, B, C

1.8 points

1.8

Question 42

42.

name two intersecting lines and their point of intersection

line EB, line DC @ point F

line EB, line BC @ point B

line EC, line DA @ point A

line AB, line DC @ point C

1.8 points

1.8

Question 43

43.

name the line in four different ways

line l, line T, line Q, line R

line l, line QR, line PR, line QP

line l, line QR, line PQ, line TP

1.8 points

1.8

Question 44

44.

Just name it 1 way.

plane l

plane PRl

plane PQR

plane TPQ

1.8 points

1.8

Question 45

45.

name all the planes in the diagram

plane P, Plane O, plane N

plane ABCD

plane A, plane B, plane C

1.8 points

1.8

Question 46

46.

what is at the intersection of the three planes?

line ABCD

point C

point D

line AB

line DC

1 point

1

Question 47

47.

name the three lines

line AB, line BA, line DC

line CB, line CD, line AC

line AB, line CD, line BC

1 point

1

Question 48

48.

name three collinear points

A, B, D

C, D, E

A, B, C

A, B, E

1 point

1

Question 49

49.

what is the intersection of line ab and line cd?

point B

point A

point D

trick question, they dont meet at all. they are skew.

point C

1 point

1

Question 50

50.

how many planes are in the diagram?

10

8

9

5

6

7

0 points

0

Question 51

51.

draw a point b on line pj

0 points

0

Question 52

52.

draw a plane j containing line s

0 points

0

Question 53

53.

draw lines r and t intersecting at point z

0 points

0

Question 54

54.

draw line ak intersecting line ca with point y not on either line
