Copy of Unit 1 - Kinematics exit ticket (B) (8/22/2023)

Last updated about 1 year ago

7 questions

Question 4

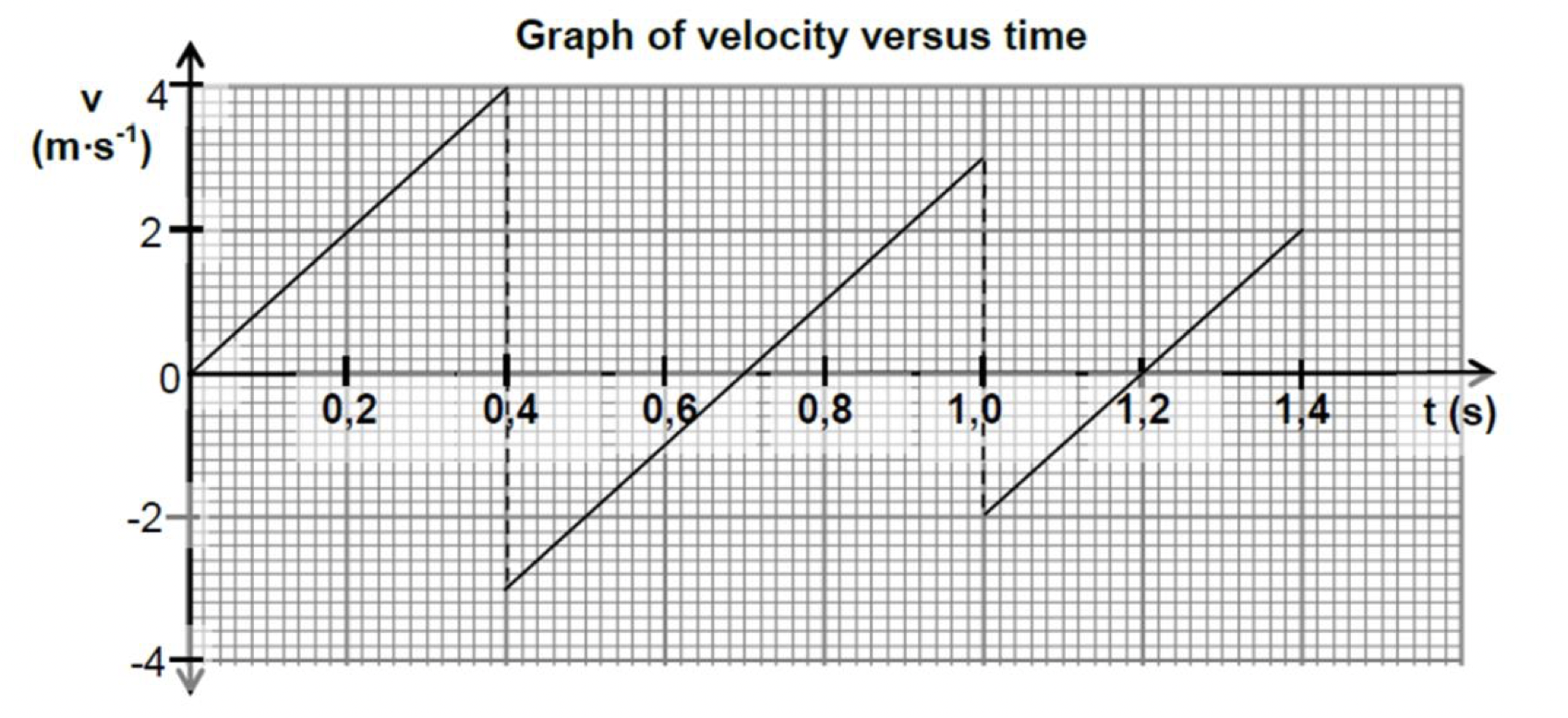

How many times does this ball bounce? Write the number value only.

Library

Copy of Unit 1 - Kinematics exit ticket (B) (8/22/2023)

Last updated about 1 year ago

7 questions

Question 1

When a ball is thrown vertically upwards, and then caught again, at what point does its velocity become zero?

None of the above

Halfway in time

When it is caught

At the launch point

Question 2

A ball is thrown vertically upwards.
Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

acceleration

momentum

kinetic energy

velocity

Question 3

Samuel hits the cricket ball from the ground straight up in the air.

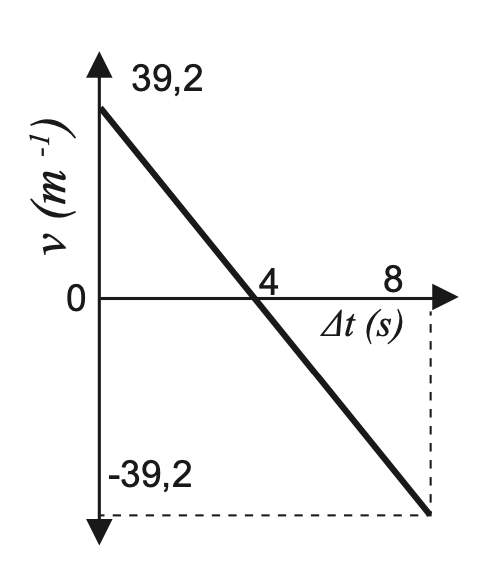

A graph of velocity vs time was drawn.
Upwards is taken as positive.

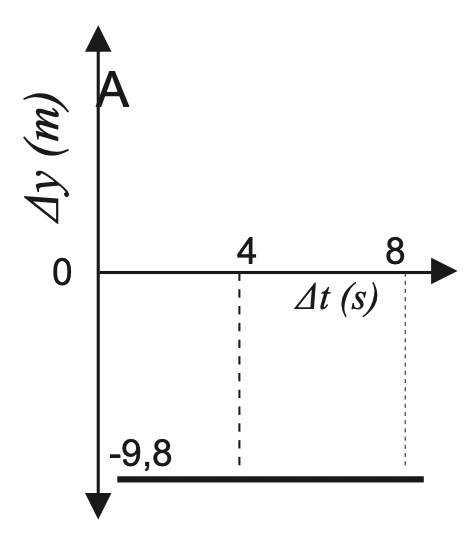

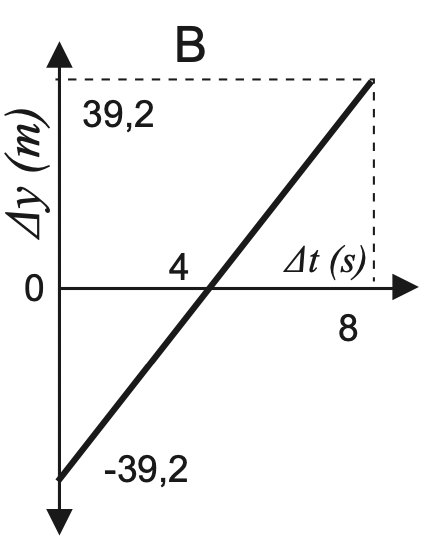

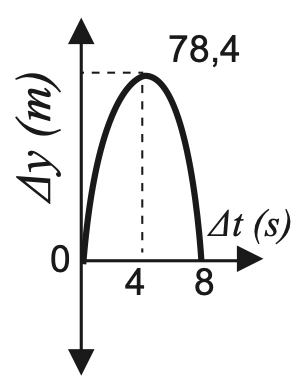

Which of the following graphs represents the corresponding position vs time graph?

Question 4

How many times does this ball bounce? Write the number value only.

A boy is standing on the top of a cliff.
He throws a small rock vertically upwards with a velocity of 15 m.s-1.
It takes 4 s for the rock to hit the ground below.

Question 5

What is the velocity of the rock (in m.s-1) when it hits the ground? Write the number only, two decimal places.

Question 6

Calculate how long it takes (s) for the rock to reach its maximum height. Write the number only, two decimal places.

Question 7

Calculate the height of the cliff (m). Write the number only, two decimal places.

Question 1

When a ball is thrown vertically upwards, and then caught again, at what point does its velocity become zero?

None of the above

Halfway in time

When it is caught

At the launch point

Question 2

A ball is thrown vertically upwards.
Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

acceleration

momentum

kinetic energy

velocity

Question 3

Samuel hits the cricket ball from the ground straight up in the air.
A graph of velocity vs time was drawn.
Upwards is taken as positive.
Which of the following graphs represents the corresponding position vs time graph?

A boy is standing on the top of a cliff.
He throws a small rock vertically upwards with a velocity of 15 m.s-1.
It takes 4 s for the rock to hit the ground below.

Question 5

What is the velocity of the rock (in m.s-1) when it hits the ground? Write the number only, two decimal places.

Question 6

Calculate how long it takes (s) for the rock to reach its maximum height. Write the number only, two decimal places.

Question 7

Copy of Unit 1 - Kinematics exit ticket (B) (8/22/2023)

How many times does this ball bounce? Write the number value only.

Copy of Unit 1 - Kinematics exit ticket (B) (8/22/2023)

When a ball is thrown vertically upwards, and then caught again, at what point does its velocity become zero?

A ball is thrown vertically upwards. Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

Samuel hits the cricket ball from the ground straight up in the air. A graph of velocity vs time was drawn. Upwards is taken as positive. Which of the following graphs represents the corresponding position vs time graph?

How many times does this ball bounce? Write the number value only.

What is the velocity of the rock (in m.s-1) when it hits the ground? Write the number only, two decimal places.

Calculate how long it takes (s) for the rock to reach its maximum height. Write the number only, two decimal places.

Calculate the height of the cliff (m). Write the number only, two decimal places.

When a ball is thrown vertically upwards, and then caught again, at what point does its velocity become zero?

A ball is thrown vertically upwards. Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

Samuel hits the cricket ball from the ground straight up in the air. A graph of velocity vs time was drawn. Upwards is taken as positive. Which of the following graphs represents the corresponding position vs time graph?

What is the velocity of the rock (in m.s-1) when it hits the ground? Write the number only, two decimal places.

Calculate how long it takes (s) for the rock to reach its maximum height. Write the number only, two decimal places.

Calculate the height of the cliff (m). Write the number only, two decimal places.

A ball is thrown vertically upwards.
Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

Samuel hits the cricket ball from the ground straight up in the air.
A graph of velocity vs time was drawn.
Upwards is taken as positive.
Which of the following graphs represents the corresponding position vs time graph?

A ball is thrown vertically upwards.
Which ONE of the following physical quantities has a non-zero value at the instant the ball changes direction?

Samuel hits the cricket ball from the ground straight up in the air.
A graph of velocity vs time was drawn.
Upwards is taken as positive.
Which of the following graphs represents the corresponding position vs time graph?
