Use the soil texture triangle to determine the soil texture of each soil listed below.
Question 7
7.
Question 8
8.
Question 9
9.
Question 10
10.
Using the picture below or the sample in class, it's time to determine the percentage of sand, silt, and clay relative to the total soil level. To calculate the percentage, divide the depth of each layer of soil by the total soil depth in the jar, and multiply by 100. (Use millimeters). Because sand is the biggest particle, it falls out first, silt is the second layer because its size is between sand and clay, and the top layer is clay because it is the smallest particle.
Question 11
11.
Using Mr. Beeler's sample above calculate the percentage for each type of soil (sand/silt/clay) and find its location on the soil texture triangle. Write the soil type below.
Percolation rates can be measured the following way: Identical volumes of sand, light soil (mix of sand, silt & clay), gravel, and clay are placed in individual funnels, with the same size piece of cotton at the base (to keep the sample in the funnel, but allows water to pass).
The percolation rate was then measured by pouring identical volumes of water into each funnel and timing how long it took for the water to start dripping into the graduated cylinder below (timer started at the same time as the water was poured onto the sample).
The volume of water that filtered through was also measured, as was the time it took for all the water to filter through (time was stopped when no drops fell into the graduated cylinder for 60 seconds after the last drop - the time recorded was that of the last drop).

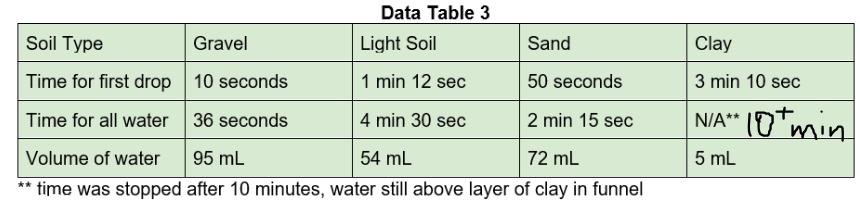

The data was recorded in Data Table 3. 100 mL of water was poured into each funnel holding 100 mL of soil sample.
Question 12
12.
Use the data provided in Data Table 3 to answer the following questions.
What is the percolation rate of each soil type? This is measured in mL/second.
Question 13
13.
Question 14
14.
Explain why would this be ideal for lining a man made lake or pond?
Question 15
15.
Question 16
16.
Explainwhy would this be ideal for a garden walkway in a wet environment?
Question 17
17.
Question 18
18.
Explainwhy would this be ideal for for growing plants?
What are the fourmost important properties of soil?
Soil Structure
Soil pH
Soil organisms
Soil waterholding capacity
Soil texture
What threebasic textures can a soil can have?
Loamy
Sandy
Gravely
Clayey
What gives soils their waterholding capacity?
The positive charges of the minerals
In their pores and surfaces of mineral grains
The negative charges of the minerals
The term pH is used to indicate the level of acidity or alkalinity of a soil.
The pH of the soil is important in determining the type of vegetation that will grow in the soil and the type of organisms that will live there.
What pH range are most soils between?
9-13
7.5-9
3-8
5.5-7.5
What is the texture of soil comprised of 20% clay, 60% silt, and 20% sand?
Loamy sand
Loam
Clay
Silt loam
What is the texture of a soil comprised of 20% clay, 40% silt, and 40% sand?
Clay
Loamy sand
Silt loam
Loam
What is the texture of a soil comprised of 3% clay, 20% silt, and 77% sand?
Silt loam
Clay
Loamy sand
Loam
What is the texture of a soil comprised of 43% clay, 32% silt, and 25% sand?
Loam
Silt loam
Loamy sand
Clay
Which soil type would be ideal for lining a man made lake or pond (to contain the water)?
Clay
Gravel
Light soil
Sand
Which soil type would be ideal for a garden walkway in a wet environment (to drain it)?
Clay
Gravel
Light soil
Sand
Which soil type would be ideal for growing plants (to hold most of the water but not all)?
