Hinge Theorem
1
1
1
Converse of the Hinge Theorem
1
1
1
Finding values of X using the Hinge Theorem and its converse.
1
2
2
Application
2
Question 1
1.

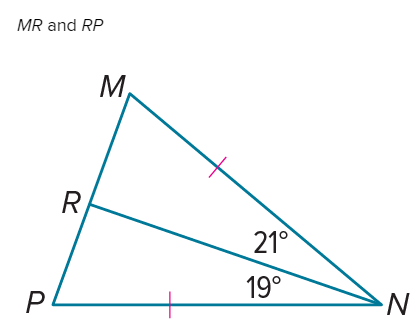

Use the Hinge Theorem to compare the lengths of the following segments based on the given angles in the diagram:
MR
__________
RP
Question 2
2.

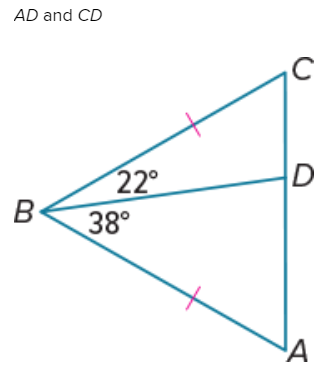

Use the Hinge Theorem to compare the lengths of the following segments based on the given angles in the diagram:
AD
__________
CD
Question 3
3.

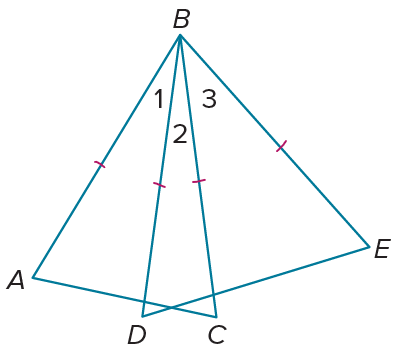

Use the Hinge Theorem to compare the lengths of the following segments based on the given angles in the diagram:
Here m∠ABC is less than m∠DBE.
AC
__________
DE
Question 4
4.

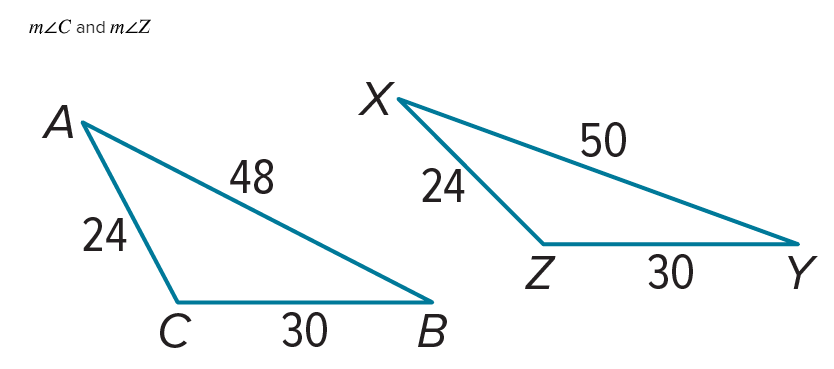

Use the Converse of the Hinge Theorem to compare the measures of the following angles based on the given sides in the diagram:
m∠C __________ m∠Z
Question 5
5.
Use the Converse of the Hinge Theorem to compare the measures of the following angles based on the given sides in the diagram:
m∠XYW __________ m∠WYZ
Question 6
6.

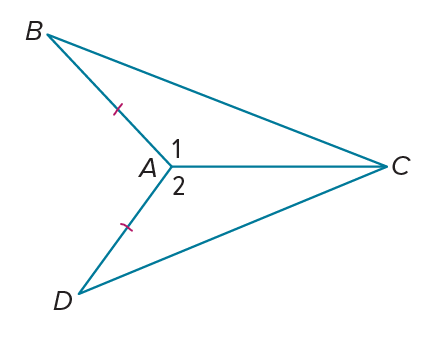

Use the Converse of the Hinge Theorem to compare the measures of the following angles based on the given sides in the diagram:
Here BC > CD.
m∠1 __________ m∠2
Question 7
7.
Determine the range of values for x.
The value of x is greater than _______.

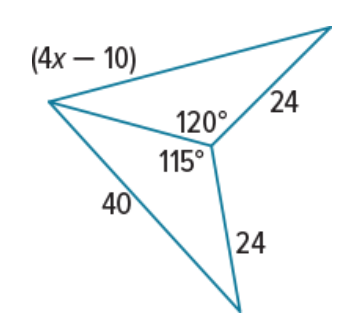

Question 8
8.
Determine the range of values for x.
The value of x is between _______ and _______ .

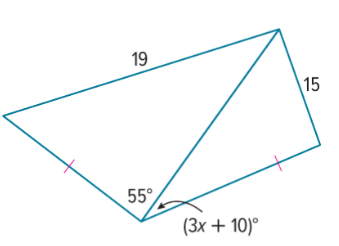

Question 9
9.
Determine the range of values for x.
The value of x is between _______ and _______ .

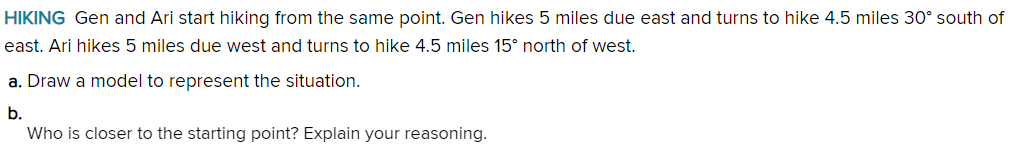

Question 10
10.
visibility
View drawing
