Question 1
1.
What is the unit of electric current?
Ohm
Watt
Ampere
Volt
Question 2
2.

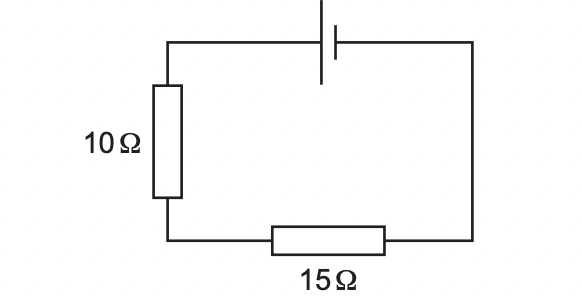

What is the total resistance in this circuit?
5 Ω
6 Ω
10 Ω
25 Ω
Question 3
3.
What is the property of a material that opposes the flow of electric current called?
resistance
voltage
power
current
Question 4
4.

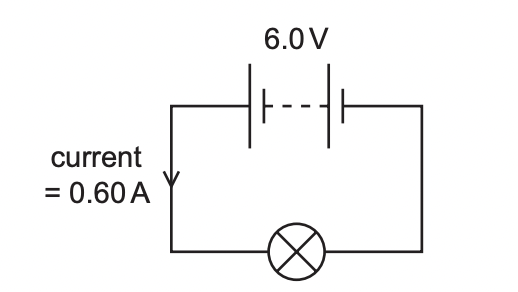

What is the resistance of the light bulb?
36 Ω
3,6 Ω
0,1 Ω
10 Ω
Question 5
5.
Ammeters are always connected in ___________ whereas voltmeters are always connected in _____________ in circuits.
Other Answer Choices:
drag_indicator
parallel
drag_indicator
series
Question 6
6.

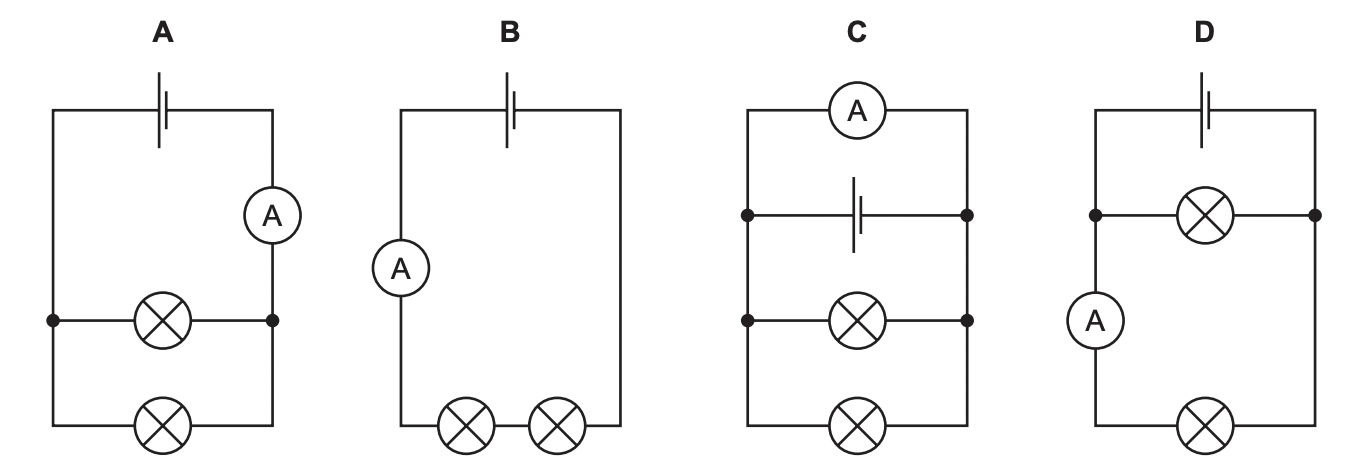

The diagrams show four circuits.
Which circuit contains two bulbs connected in parallel with each other, and contains an ammeter that measures the total current in the two bulbs?
A
B
C
D
Question 7
7.
What happens to the total resistance in a circuit if more resistors are connected in a series?
Stays the same
Increases
Goes to zero
Decreases
Question 8
8.
What happens to the total resistance when a new resistor is added in parallel?
It increases
It remains the same
It decreases
It depends on the value of the new resistor
Question 9
9.
Resistors in series are best described as ____________ dividers whereas resistors in parallel are ____________ dividers.
Other Answer Choices:
drag_indicator
power
drag_indicator
voltage
drag_indicator
energy
drag_indicator
current
Question 10
10.

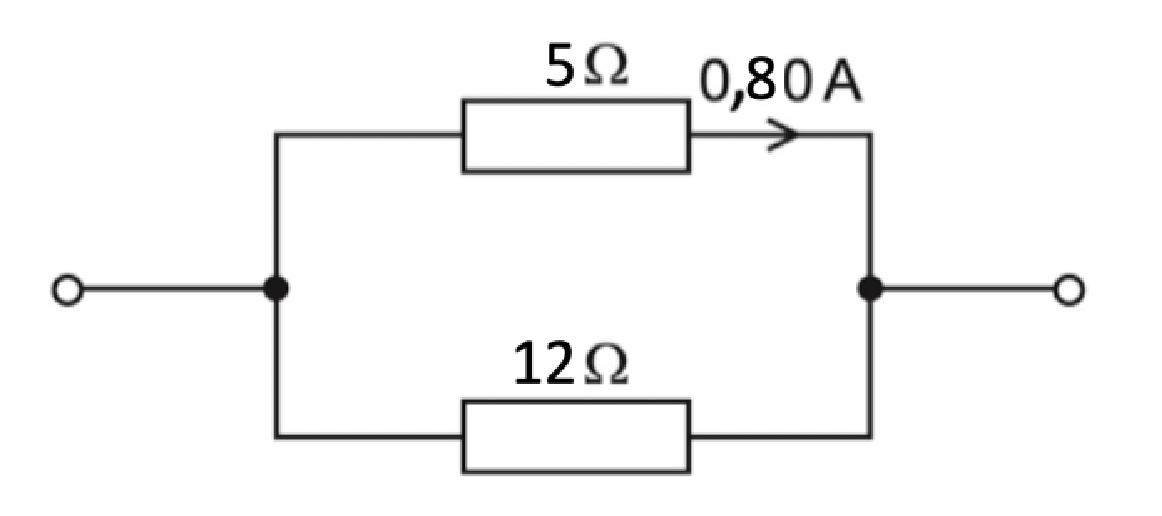

Use this circuit to provide values for the following:
The voltmeter reading over the 12 Ω resistor = ________ V.
The total resistance of the parallel network = _________ Ω.
The current in the 12 Ω resistor = _________ A.
Other Answer Choices:
drag_indicator
0,33
drag_indicator
3,53
drag_indicator
0,28
drag_indicator
1,92
drag_indicator
4,0
drag_indicator
1,0
