Context 3 - Gears Part 2
By Joshua Luckhaupt
star
star
star
star
star
Share
share
Last updated almost 2 years ago
12 questions
Add this activity
Note from the author:
MMR Resources
11
12
zoom_in
1
1
Question 12
12.
1
2
3
4
zoom_in
1
Question 1
1.

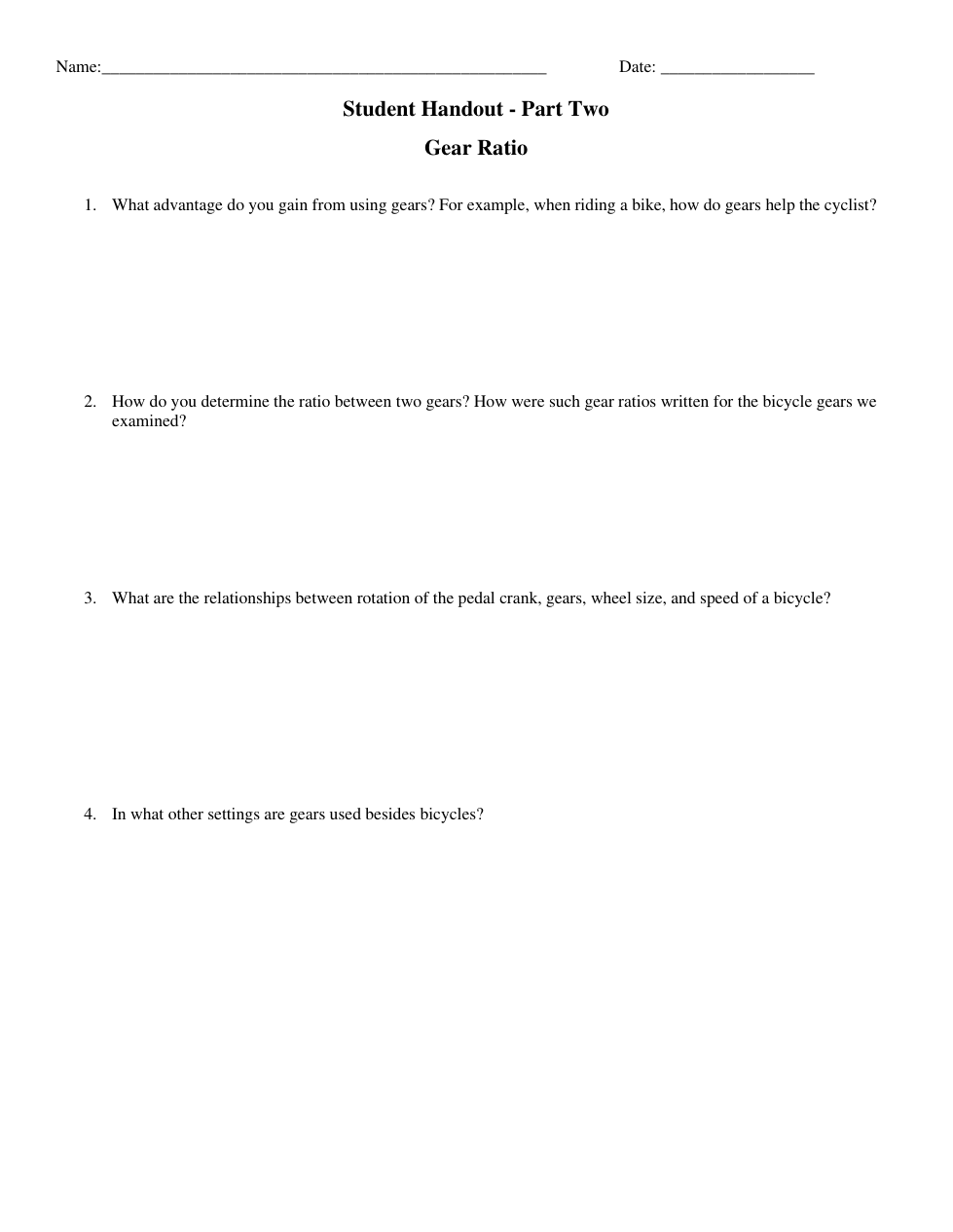

What advantage do you gain from using gears? For example, when riding a bike, how do gears help the cyclist?
1
Question 2
2.
How do you determine the ratio between two gears? How were such gear ratios written for the bicycle gears we examined?
1
1
5
6
7
8
9
10
zoom_in
1
Question 5
5.

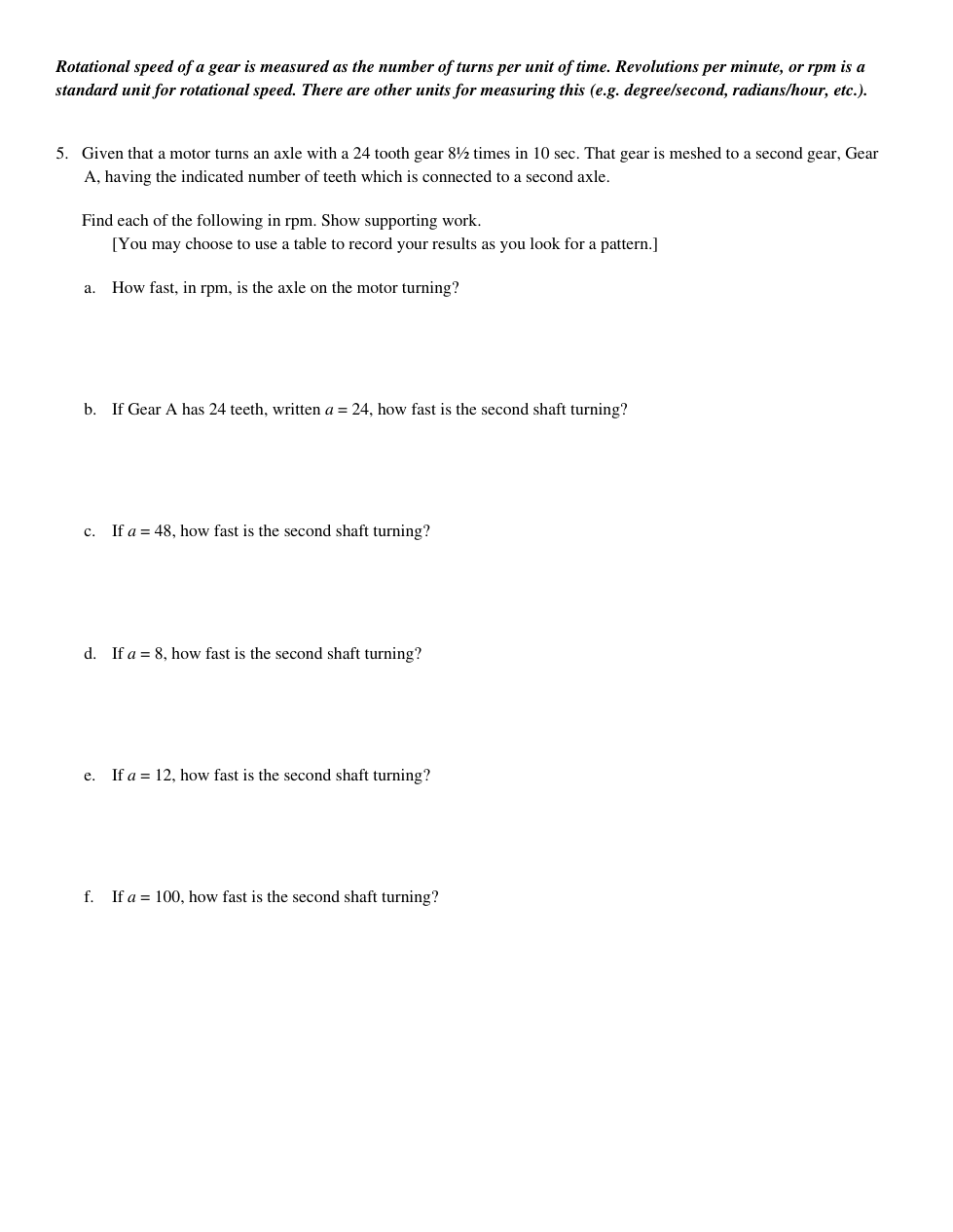

How fast, in rpm, is the axle on the motor turning?
1
1
1
1
1
Question 11
11.

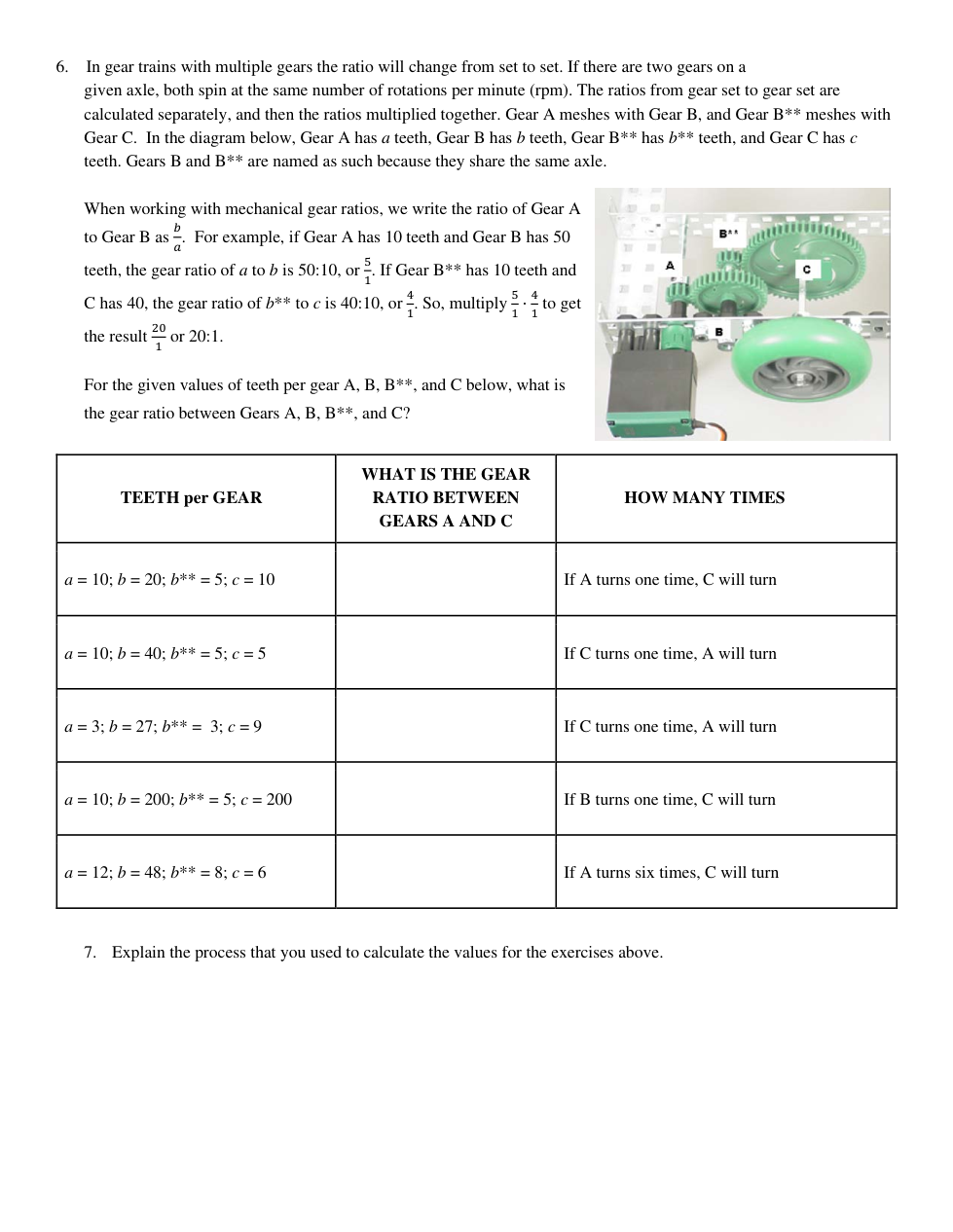

Read the passage first and then fill in the table below.
Click "Show your work" to fill out the table.
Hint: Use the "T" option on the left side menu to type your answers into the boxes.
visibility
View drawing
Explain the process that you used to calculate the values for the exercises above.
Question 3
3.
What are the relationships between rotation of the pedal crank, gears, wheel size, and speed of a bicycle?
Question 4
4.
In what other settings are gears used besides bicycles?
Question 6
6.
If Gear A has 24 teeth, written a = 24, how fast is the second shaft turning?
Question 7
7.
If a = 48, how fast is the second shaft turning?
Question 8
8.
If a = 8, how fast is the second shaft turning?
Question 9
9.
If a = 12, how fast is the second shaft turning?
Question 10
10.
If a = 100, how fast is the second shaft turning?
