Separation techniques - How do they work?
Match the separation technique to the diagram.
Which method of separation should be used to obtain sand from a mixture containing salt, sand, and water?
Which method of separation should be used to obtain pure water from a mixture containing salt, sand, and water?
Which method of separation should be used to obtain copper(II) sulfate from a mixture containing copper(II) sulfate and water?
Complete then copy into your book. With the title Method.
Place base of the paper in the
Make sure the solvent level is below
leave until is close to the top of the paper.
(i) Describe how the student should complete the experiment after placing the four spots on the paper.
Suggest why food colouring F did not move during the experiment.
How many food dyes are there in food colouring E?
How many known food dyes are there in food colouring H?
Record the results for the dye in G and calculate its Rf value. Give your answer to 2 decimal places.
Tick the colour(s) that include a dye that is not safe
Identify the unsafe dyes
Explain how the different dyes in X are separated by paper chromatography.
The soluble the dye is in the moving
and the the dye is attracted to the solvent adsorbed on to the chromatography
The the dye moves in the same time
Follow the link and complete the wordwall that shows the states of matter and the transitions between them.
Upload a screen shot of the completed word wall.
https://wordwall.net/play/16764/377/8882
Follow the link and complete the wordwall to identify the appropriate separation technique for various mixtures.
Upload a screen shot of the completed word wall.
https://wordwall.net/play/17462/853/5896

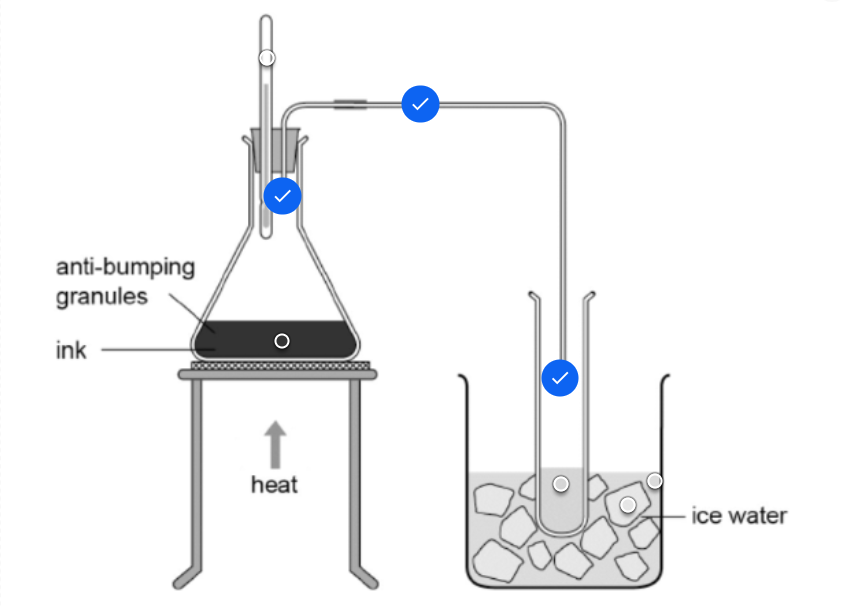

Follow the link and complete the wordwall that shows the distillation apparatus that is normally used.
Upload a screen shot of the completed word wall.
https://wordwall.net/play/17412/952/1962
Distillation is followed by .
Make the correct selection and copy the answer into your book.
Where is the water liquid
Where is the water a solid?
Where is the water a gas
Method
Unscramble the method and copy the method into your exercise book.
Then start to set up the apparatus.
note the temperature of the vapour
(using the thermometer).
Collect the distillate in the test tube

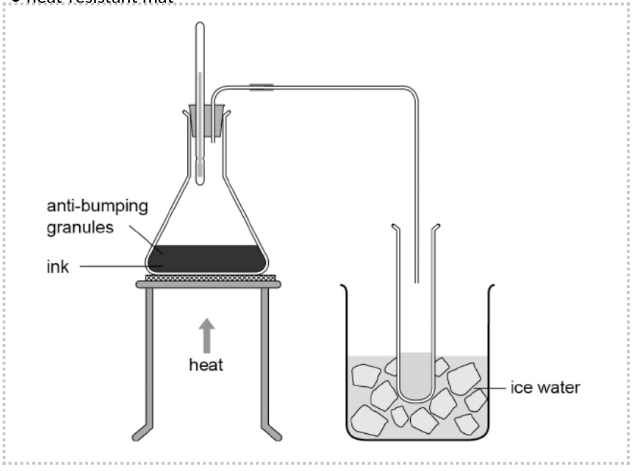

Set up your apparatus as shown in the diagram. (Add 4-5 anti bumping granules).
then heat the ink until the water boils.
gentle blue flame
the air hole about half open
gas tap about half on.
Method
Unscramble the method and copy the method into your exercise book.
Then start to set up the apparatus.
Set up your apparatus as shown in the diagram.
Adjust the Bunsen burner so that you have a gentle blue flame.
note the temperature of the vapour (using the thermometer).
Collect the distillate in the test tube
Add 4-5 anti bumping granules then heat the ink until the water boils.
(The air hole should be about half open and the gas tap should be about half on).

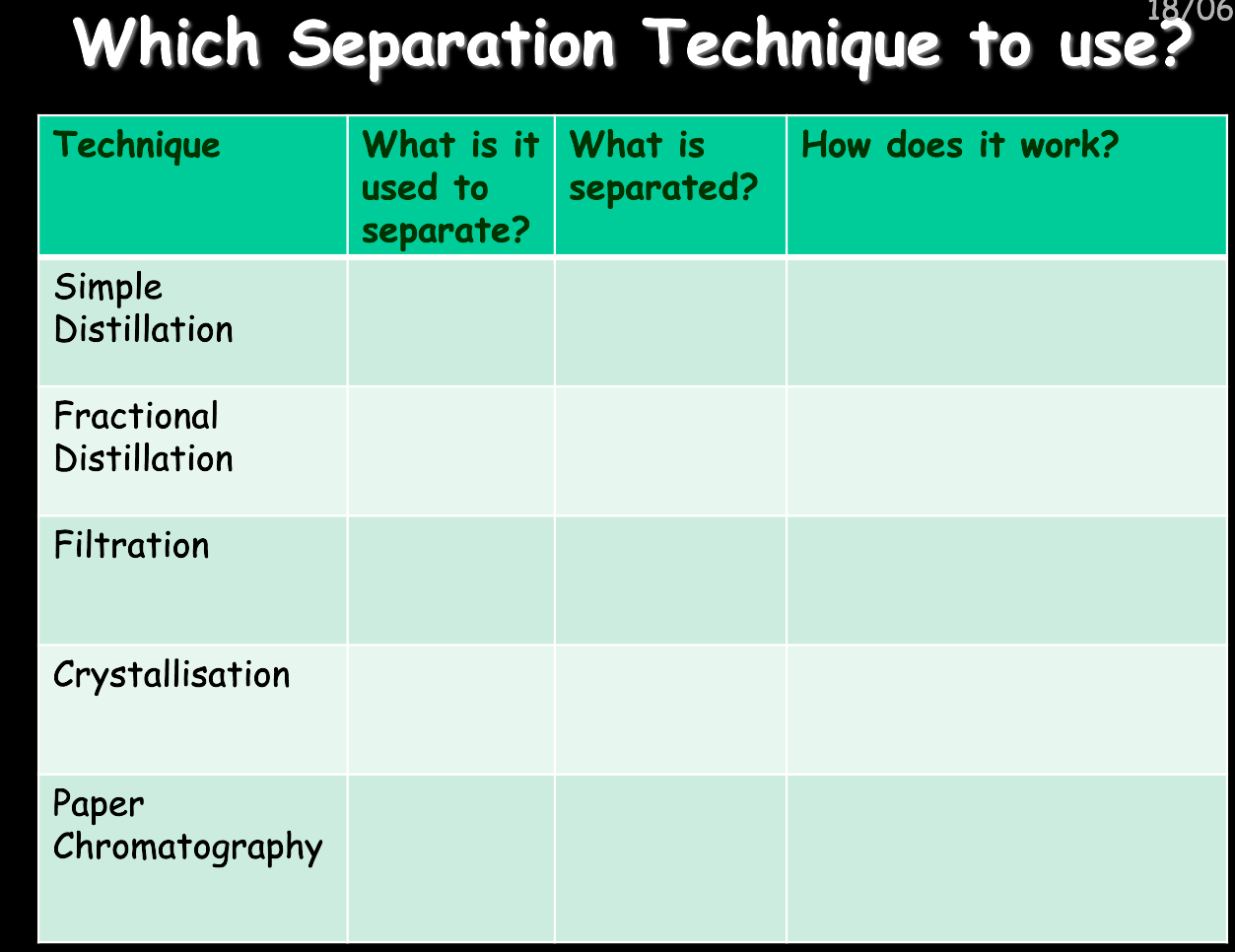

Technique: Simple Distillation What is it used to separate?
