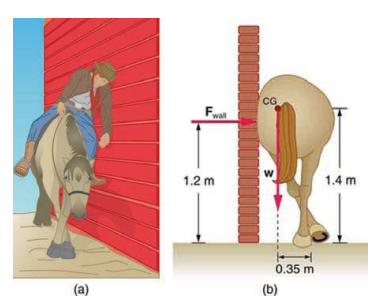

Suppose a horse leans against a wall. Calculate the force exerted on the wall assuming that force is horizontal while using the data in the schematic representation of the situation. Note that the force exerted on the wall is equal in magnitude and opposite in direction to the force exerted on the horse, keeping it in equilibrium. The total mass of the horse and rider is 500 kg. Take the data to be accurate to three digits.
Suppose a horse leans against a wall. Calculate the force exerted on the wall assuming that force is horizontal while using the data in the schematic representation of the situation. Note that the force exerted on the wall is equal in magnitude and opposite in direction to the force exerted on the horse, keeping it in equilibrium. The total mass of the horse and rider is 500 kg. Take the data to be accurate to three digits.
1

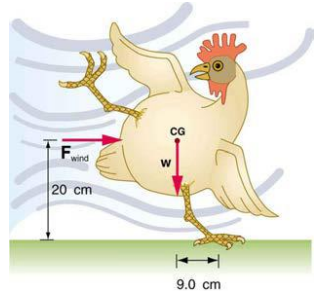

What force must be exerted by the wind to support a 2.50-kg chicken in the position shown?
What force must be exerted by the wind to support a 2.50-kg chicken in the position shown?
A person carries a plank of wood 2 m long with one hand pushing down on it at one end with a force F1 and the other hand holding it up at 50 cm from the end of the plank with force F2. If the plank has a mass of 20 kg and its center of gravity is at the middle of the plank.
1
Sketch the force diagram
Sketch the force diagram
1
What is the magnitude of F2?
What is the magnitude of F2?
1
What is the magnitude of F1?
What is the magnitude of F1?
