The diagram below shows a battery and two bulbs in sockets. Sketch connecting wires in a way that would allow both bulbs to light at the same time. Then draw arrows to show where and in what direction charge moves through the wires based on the established convention.
2 points
2
Question 3
3.
State whether the statement below is True or False. Then state evidence which either supports or contradicts the statement:
The battery determines the direction of flow of charge in a circuit.
2 points
2
Question 4
4.
For the following circuit, which of the bulbs will light up?
3 points
3
Question 5
5.

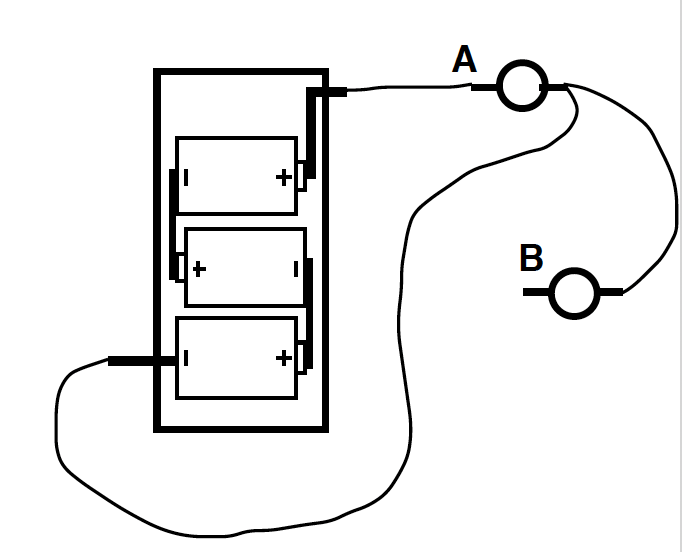

For this picture, draw this arrangement as a circuit diagram using the correct circuit symbols.
