Mastery checks are pledged activities. You may ONLY use: a calculator. No assistance from notes, friends, the internet, etc.
You may write "I pledge" and sign your name here.
2 points
2
Question 2
2.
The diagram below shows a battery and two bulbs in sockets. Sketch connecting wires in a way that would allow both bulbs to light at the same time. Then draw arrows to show where and in what direction charge moves through the wires based on the established convention.
2 points
2
Question 3
3.
State whether the statement below is True or False. Then state evidence which either supports or contradicts the statement:
Lightbulbs only light when something is happening in the wires.
2 points
2
Question 4
4.

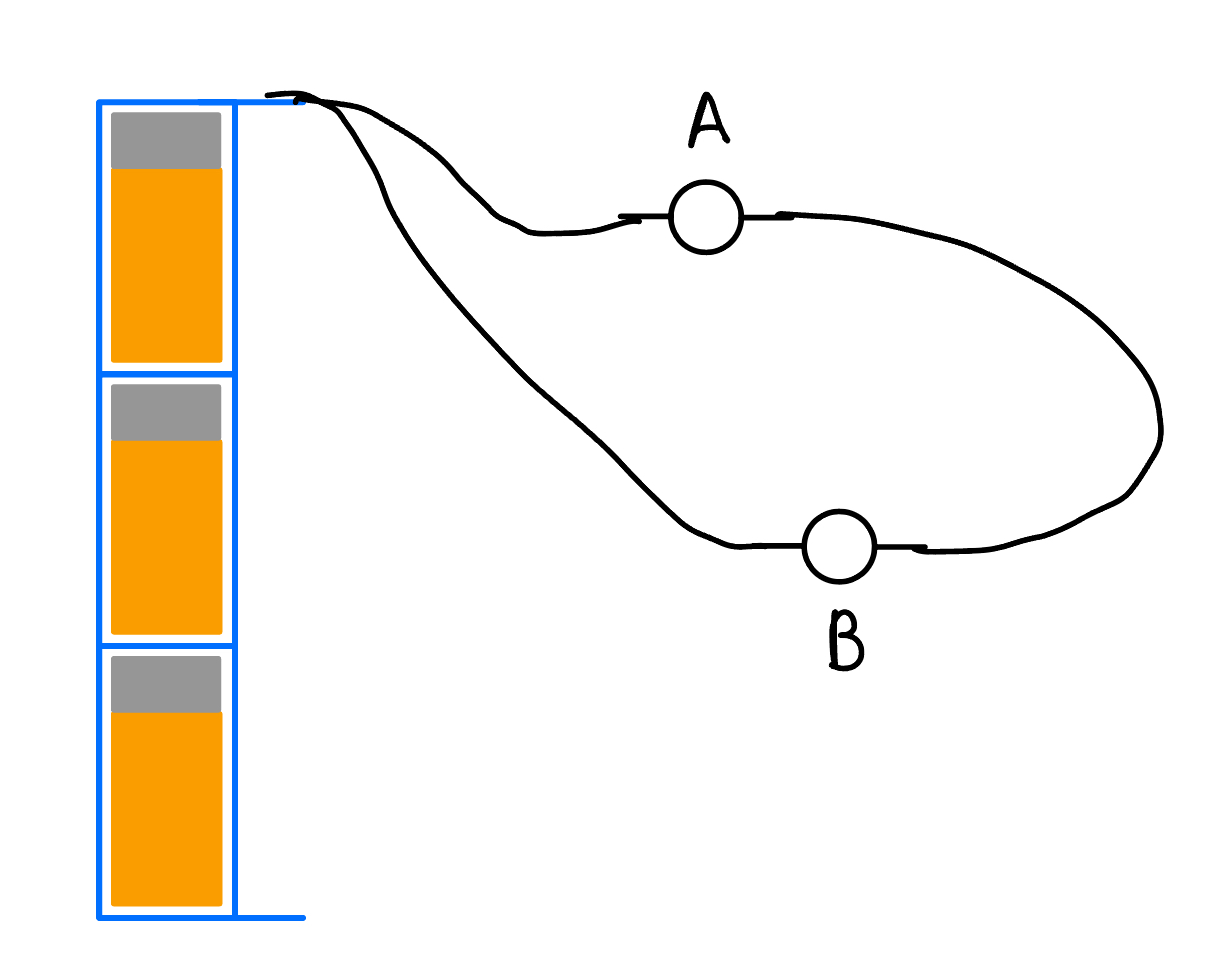

For the following circuit, which of the bulbs will light up?
3 points
3
Question 5
5.
For this picture, draw this arrangement as a circuit diagram using the correct circuit symbols.
